General Information |
|
Summary |

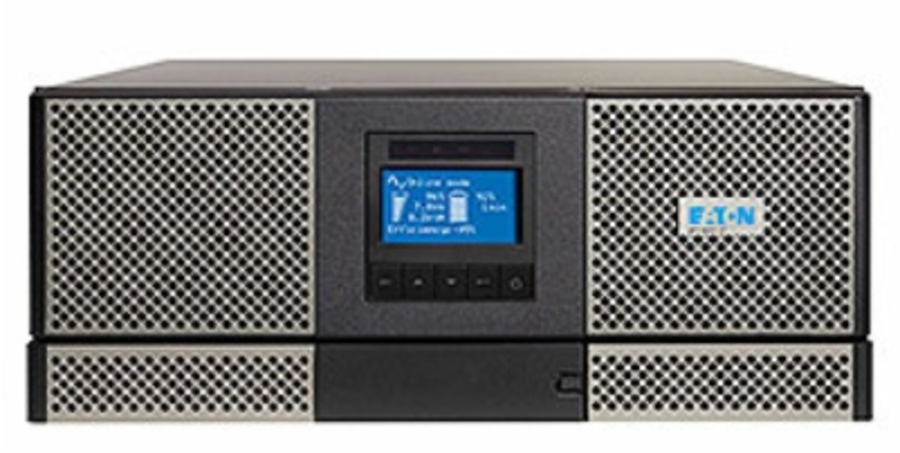

Delivering premium backup power and scalable battery runtimes for servers, voice/data networks and storage systems, the Eaton 9PX UPS is the ideal solution for both rack and stand-alone installations. An ENERGY STAR qualified UPS, the 9PX’s graphical LCD interface and robust power management software makes managing your UPS easy — even in virtualized environments. |
|
Features |
|
Output power capacity |
5.5 kVA |
|
Output power |
4900 W |
|
Input operation voltage (min) |
176 V |
|
Input operation voltage (max) |
276 V |
|
Input frequency |
50/60 Hz |
|
Output operation voltage (min) |
120 V |
|
Output operation voltage (max) |
208 V |
|
Output voltage regulation |
1% |
|
Efficiency |
92.9% |
|
Input power factor |
0.99 |
|
Output power factor |
0.9 |
|
Output voltage Total Harmonic Distortion (THD) |
2% |
|
Noise level |
55 dB |
|
Surge protection |
Yes |
|
Ports & interfaces |
|
AC outlet types |
NEMA 5–20R, NEMA L14-30R, NEMA L6-30R, Terminal |
|
Power plug |
NEMA L14-30P |
|
AC outlets quantity |
8 AC outlet(s) |
|
USB 2.0 ports quantity |
1 |
|
Battery |
|
Battery technology |
Sealed Lead Acid (VRLA) |
|
Hot-swap battery |
Yes |
|
Cold start |
Yes |
|
Design |
|
Form factor |
Rackmount/Tower |
|
Product colour |
Black |
|
Cable length |
1.8 m |
|
Display type |
LED |
|
LED indicators |
Yes |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Storage temperature (T-T) |
-15 - 60 °C |
|
Operating relative humidity (H-H) |
0 - 95% |
|
Operating altitude |
0 - 3000 m |
|
Certificates |
|
Compliance certificates |
RoHS |
|
Certification |
IEC 62040-2:2006 Cat C2 / CISPR22 Class A / FCC part 15 Class A |
|
Safety regulation & standards |
|
Safety |
CE / cULus / NOM |
|
Weight & dimensions |
|
Width |
440 mm |
|
Depth |
650 mm |
|
Height |
172.7 mm |
|
Weight |
71.3 kg |
|
Other features |
|
Nominal input voltage |
120-208 V |
