Features |
|
UPS topology |
Double-conversion (Online) |
|
Output power capacity |
8 kVA |
|
Output power |
7200 W |
|
Waveform |
Sine |
|
Input operation voltage (min) |
120 V |
|
Input operation voltage (max) |
208 V |
|
Input frequency |
40 - 70 Hz |
|
Output operation voltage (min) |
102 V |
|
Output operation voltage (max) |
208 V |
|
Output frequency |
50/60 Hz |
|
Output voltage regulation |
1% |
|
Efficiency |
93% |
|
Input power factor |
0.99 |
|
Noise level |
55 dB |
|

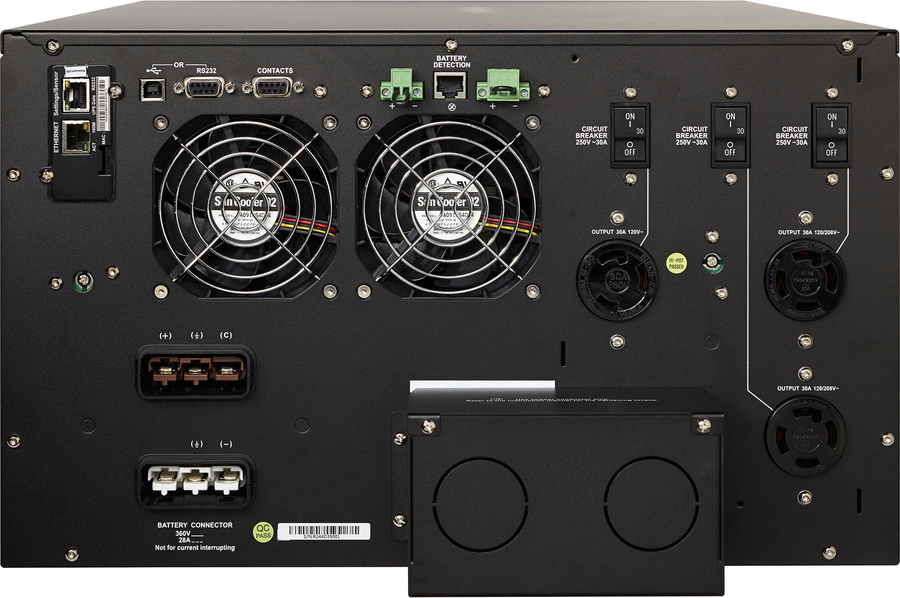

Ports & interfaces |
|
Power plug |
NEMA L6-30R |
|
RS-232 ports |
1 |
|
Ethernet LAN (RJ-45) ports |
1 |
|

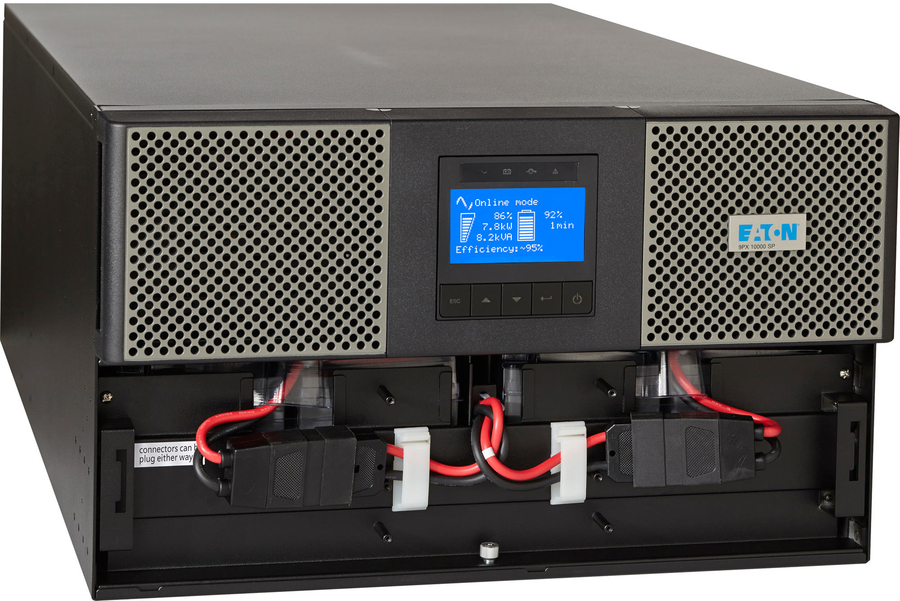

Battery |
|
Battery technology |
Sealed Lead Acid (VRLA) |
|
Typical backup time at full load |
7 min |
|
Hot-swap battery |
Yes |
|
Design |
|
Form factor |
Rackmount/Tower |
|
Product colour |
Black |
|
Rack capacity |
6U |
|
Cooling type |
Active |
|
Built-in fan |
Yes |
|
Control type |
Buttons |
|

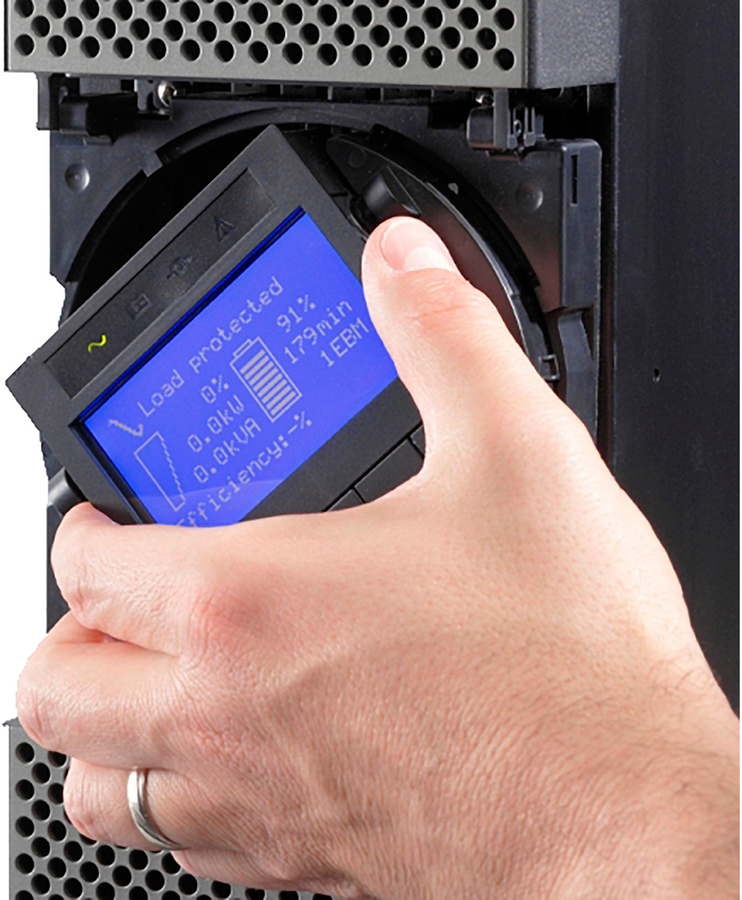

Display type |
LCD |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Operating relative humidity (H-H) |
0 - 95% |
|
Operating altitude |
0 - 3000 m |
|
Certificates |
|
Compliance certificates |
CE, Federal Communications Commission (FCC), RoHS |
|
Certification |
NOM
ANSI/IEEE Std C62.41
cULus Listed
ENERGY STAR certified |
|
Packaging content |
|
Cables included |
RS-232, USB cable |
|
Sustainability |
|
Sustainability certificates |
ENERGY STAR |
|
Weight & dimensions |
|
Width |
493.4 mm |
|
Depth |
812.8 mm |
|
Height |
261.6 mm |
|
Weight |
10.2 kg |
