General Information |
|
Summary |

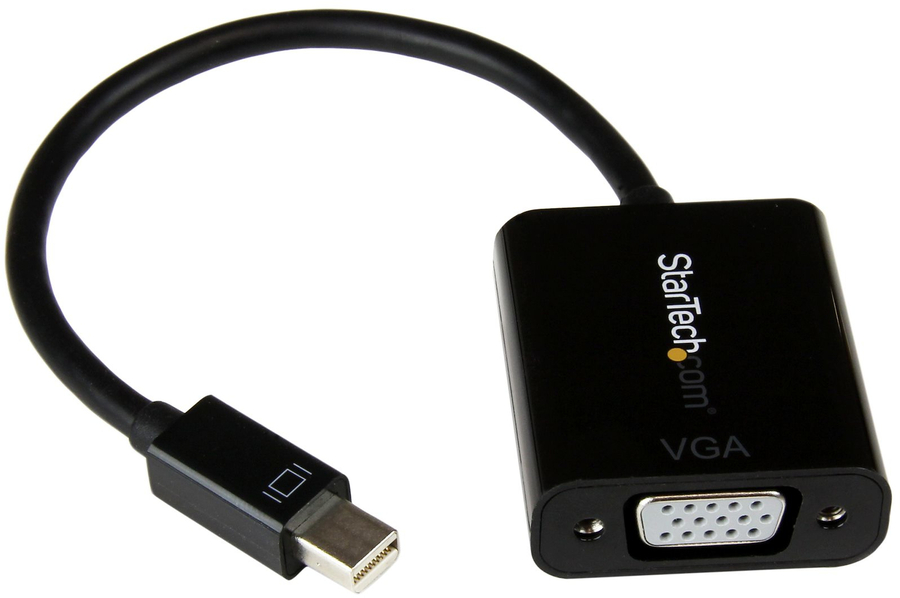

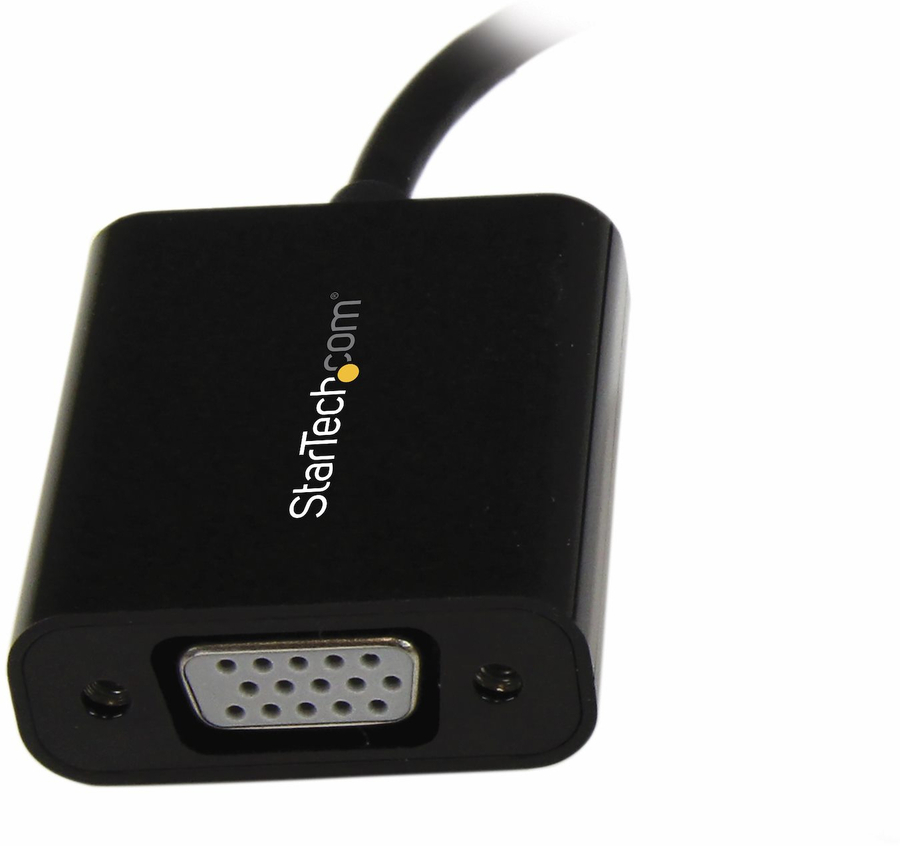

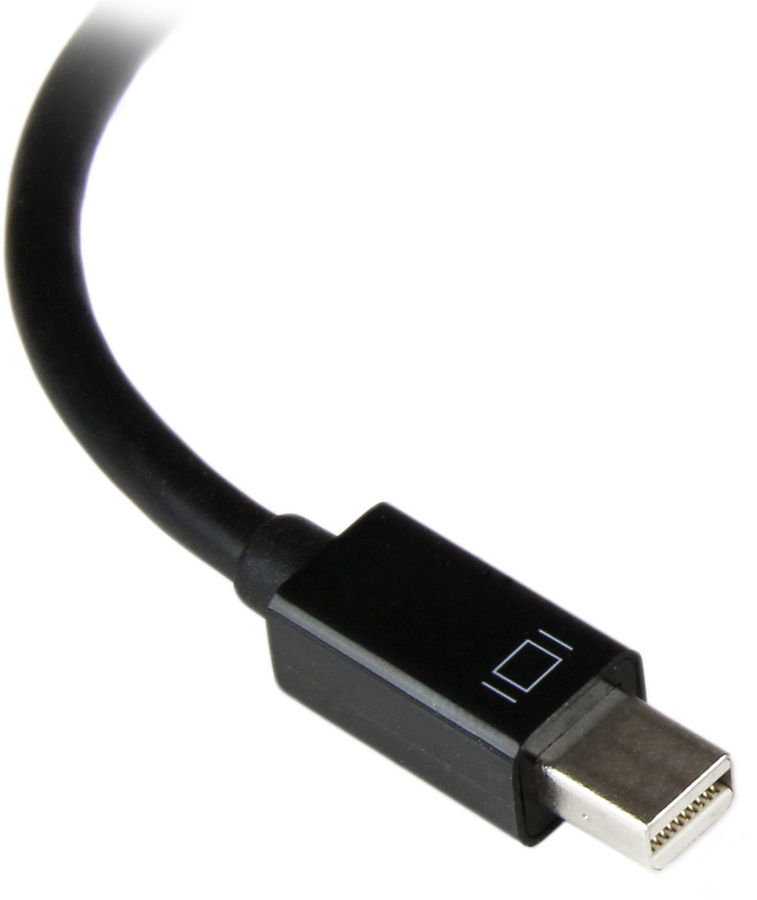

Mini DisplayPort? 1.2 to VGA Adapter Converter ? Mini DP to VGA ? 1920x1200 Connect a Mini DisplayPort 1.2-equipped PC or Mac to a VGA Monitor or Projector. |
|
Features |
|
Cable length |
0.18 m |
|
Connector 1 |
Mini DisplayPort |
|
Connector 2 |
VGA (D-Sub) |
|
Connector 1 gender |
Male |
|
Connector 2 gender |
Female |
|
Connector 1 form factor |
Straight |
|
Connector 2 form factor |
Straight |
|
DisplayPort version |
1.2 |
|
Maximum resolution |
1920 x 1200 pixels |
|
Supported video modes |
720p, 1080p |
|
Maximum refresh rate |
60 Hz |
|
HBR2 support |
Yes |
|
Product colour |
Black |
|
Chipset |
Analogix - ANX9833 |
|
Plug and Play |
Yes |
|
Converter type |
Active video converter |
|
Certification |
RoHS, CE, FCC |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 70 °C |
|
Storage temperature (T-T) |
-10 - 80 °C |
|
Operating relative humidity (H-H) |
10 - 85% |
|
Sustainability |
|
Sustainability certificates |
CE, RoHS |
|
Weight & dimensions |
|
Weight |
27 g |
|
Width |
35 mm |
|
Depth |
220 mm |
|
Height |
8 mm |
|
Packaging data |
|
Package width |
200 mm |
|
Package depth |
220 mm |
|
Package height |
18 mm |
|
Package weight |
36 g |
|
Logistics data |
|
Harmonized System (HS) code |
84733080 |
|
Master (outer) case width |
330 mm |
|
Master (outer) case length |
500 mm |
|
Master (outer) case height |
213 mm |
|
Products per master (outer) case |
150 pc(s) |
