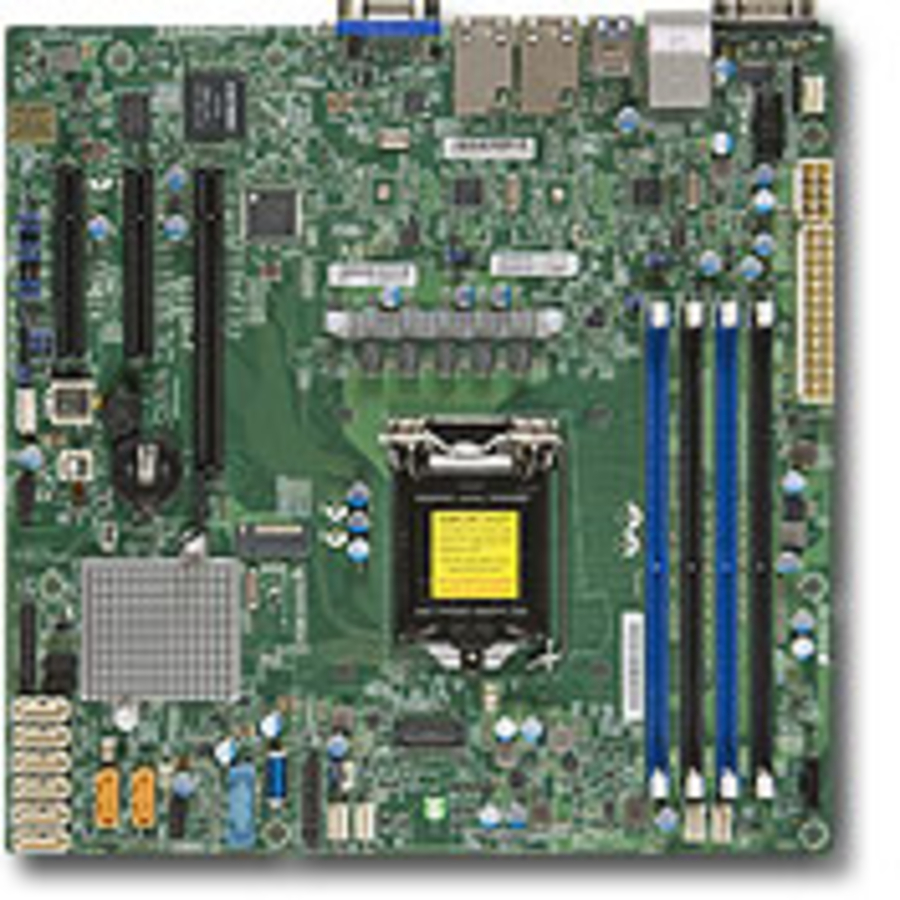

Supermicro's single processor Socket H4 designs feature the Intel® C236/C232 chipset which support the Intel® Xeon E3-1200 v5 processor family and Intel 6th Gen Core i7/i5/i3 processor family. With outstanding features that include up to 64GB of fast DDR4 DRAM in 4 DIMMS, onboard IPMI or vPro, USB 3.0/USB 3.1, PCI-E 3.0 M.2 and SATA 3.0 (6Gbps) HDD. With support for next generation graphics controller, 4K HD graphics resolution and 3 displays with HDMI, DP, and DVI ports. Designed with performance, reliability, manageability and long life in mind, Supermicro's single processor motherboards are the perfect solution for a variety of server, workstation and embedded applications. |
|
Processor |
|
Processor manufacturer |
Intel |
|
Processor socket |
LGA 1151 (Socket H4) |
|
Intel Xeon series |
E3-1200 |
|
Processor number of cores supported |
4 |
|
Processor thermal power (max) |
80 W |
|
ECC supported by processor |
Yes |
|
Memory |
|
Supported memory types |
DDR4-SDRAM |
|
Maximum internal memory |
64 GB |
|
Memory voltage |
1.2 V |
|
ECC сompatibility |
ECC |
|
Supported memory clock speeds |
1600,1866,2133 MHz |
|
Storage controllers |
|
Supported storage drive interfaces |
SATA III |
|
RAID support |
Yes |
|
RAID levels |
0, 1, 5, 10 |
|
Graphics |
|
On-board graphics card model |
Aspeed AST2400 |
|
Internal I/O |
|
USB 2.0 connectors |
4 |
|
Number of SATA III connectors |
8 |
|
TPM connector |
Yes |
|
Rear panel I/O ports |
|
USB 2.0 ports quantity |
2 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
|
Ethernet LAN (RJ-45) ports |
2 |
|
VGA (D-Sub) ports quantity |
1 |
|
IPMI LAN (RJ-45) port |
Yes |
|
Network |
|
Wi-Fi |
No |
|
Ethernet LAN |
Yes |
|
Ethernet interface type |
Gigabit Ethernet |
|
Features |
|
Motherboard form factor |
micro ATX |
|
Motherboard chipset |
Intel® C236 |
|
Expansion slots |
|
PCI Express x8 (Gen 3.x) slots |
2 |
|
BIOS |
|
BIOS type |
AMI |
|
BIOS memory size |
16 Mbit |
|
ACPI version |
4.0 |
|
Processor special features |
|
Trusted Platform Module (TPM) |
Yes |
|
Intel® Virtualization Technology (Intel® VT) |
VT-x |
|
Intel Trusted Execution Technology |
Yes |
|
Intel® AES New Instructions (Intel® AES-NI) |
Yes |
|
Trusted Platform Module (TPM) version |
1.2 |
|
Logistics data |
|
Harmonized System (HS) code |
84733020 |
|
Weight & dimensions |
|
Width |
224 mm |
|
Depth |
224 mm |
|
Other features |
|
PCI Express x4 (Gen 3.x) slots |
1 |
|
Supported DIMM module capacities |
4GB, 8GB, 16GB |
|
Maximum UDIMM memory |
64 GB |
|
Number of DIMM slots |
4 |
|
Number of processors supported |
1 |
|
Intel® vPro™ Platform Eligibility |
Yes |
|
Technical details |
|
USB version |
2.0/3.2 Gen 1 (3.1 Gen 1) |
|
Compliance certificates |
RoHS |
