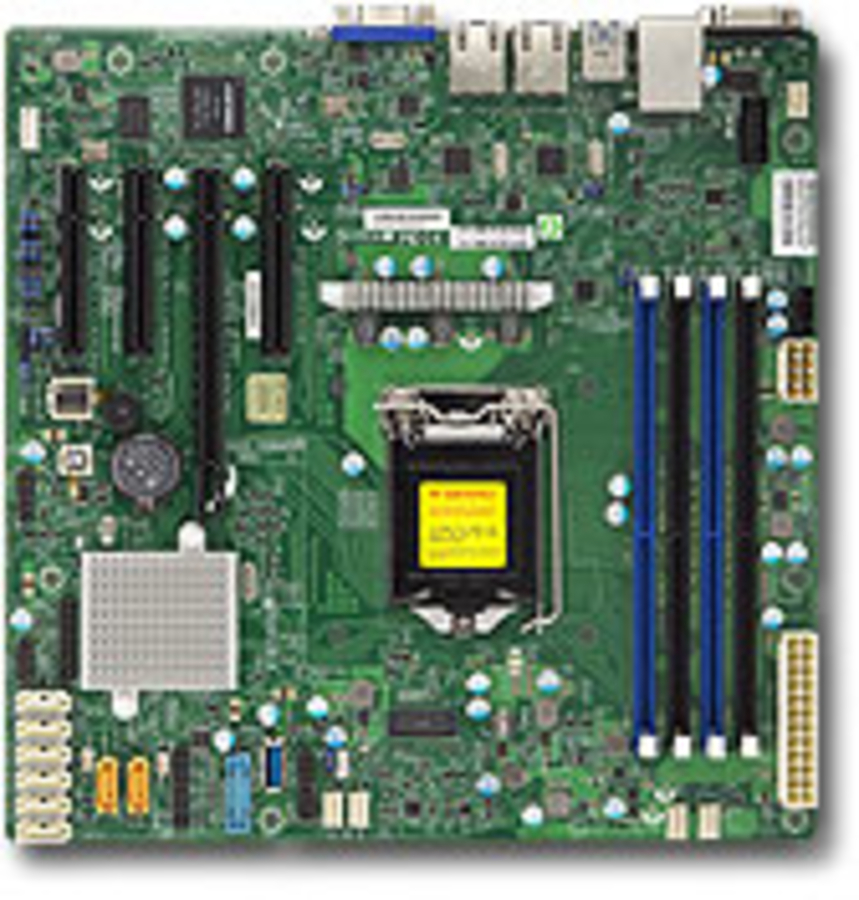

Supermicro X11SSM-F C236 S1151 mATX Mainboard
|
|
Regularly: $367.00
On Sale: $352.32
Sale Ends:
April 26th, 2024
Manufacturer:
Supermicro
H4, LGA 1151, Intel Xeon, E3-1200 v6/v5, Intel 7th/6th, Core i3, Intel C236, 64GB, ECC UDIMM DDR4 2400MHz, 4 DIMM, GbE LAN, Intel i210-AT, 8 SATA3, C236, USB 3.0, USB 2.0, VGA
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
21046239
|
MBD-X11SSM-F-O
|
672042200979 |
Active
|
Details
|
General Information |
|
Summary |
Supermicro's single processor Socket H4 designs feature the Intel® C236/C232 chipset which support the Intel® Xeon E3-1200 v5 processor family and Intel® 6th Gen Core i7/i5/i3 processor family. With outstanding features that include up to 64GB of fast DDR4 DRAM in 4 DIMMS, onboard IPMI or vPro, USB 3.0/USB 3.1, PCI-E 3.0 M.2 and SATA 3.0 (6Gbps) HDD. With support for next generation graphics controller, 4K HD graphics resolution and 3 displays with HDMI, DP, and DVI ports. Designed with performance, reliability, manageability and long life in mind, Supermicro's single processor motherboards are the perfect solution for a variety of server, workstation and embedded applications. |
|
Processor |
|
Processor manufacturer |
Intel |
|
Processor socket |
LGA 1151 (Socket H4) |
|
Compatible processor series |
Intel® Xeon® |
|
Intel Xeon series |
E3-1200 |
|
Processor number of cores supported |
4 |
|
Processor thermal power (max) |
80 W |
|
Maximum internal memory supported by processor |
64 GB |
|
Memory |
|
Supported memory types |
DDR4-SDRAM |
|
Number of memory slots |
4 |
|
Maximum internal memory |
64 GB |
|
Memory voltage |
1.2 V |
|
ECC |
Yes |
|
Supported memory clock speeds |
2400 MHz |
|
Supported memory clock speed (max) |
2400 MHz |
|
Supported memory module capacities |
4GB, 8GB, 16GB |
|
Storage controllers |
|
Supported storage drive interfaces |
SATA III |
|
RAID support |
Yes |
|
RAID levels |
0, 1, 5, 10 |
|
Graphics |
|
On-board graphics card model |
Aspeed AST2400 |
|
Internal I/O |
|
USB 2.0 connectors |
4 |
|
USB 3.2 Gen 1 (3.1 Gen 1) connectors |
2 |
|
Number of SATA III connectors |
8 |
|
Power fan connector |
Yes |
|
Chassis intrusion connector |
Yes |
|
Number of COM connectors |
1 |
|
TPM connector |
Yes |
|
Rear panel I/O ports |
|
USB 2.0 ports quantity |
2 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
|
Ethernet LAN (RJ-45) ports |
2 |
|
VGA (D-Sub) ports quantity |
1 |
|
IPMI LAN (RJ-45) port |
Yes |
|
COM ports quantity |
1 |
|
Network |
|
Wi-Fi |
No |
|
Ethernet LAN |
Yes |
|
Ethernet interface type |
Fast Ethernet, Gigabit Ethernet |
|
Features |
|
Component for |
Server |
|
Motherboard form factor |
micro ATX |
|
Motherboard chipset family |
Intel |
|
Motherboard chipset |
Intel® C236 |
|
BIOS |
|
BIOS type |
AMI |
|
BIOS memory size |
16 Mbit |
|
ACPI version |
4.0 |
|
Processor special features |
|
Trusted Platform Module (TPM) |
Yes |
|
Operational conditions |
|
Storage temperature (T-T) |
0 - 50 °C |
|
Operating temperature (T-T) |
-40 - 70 °C |
|
Operating relative humidity (H-H) |
8 - 90% |
|
Storage relative humidity (H-H) |
5 - 95% |
|
Logistics data |
|
Harmonized System (HS) code |
84733020 |
|
Weight & dimensions |
|
Width |
244 mm |
|
Depth |
244 mm |
|
Packaging content |
|
Bundled software |
SuperDoctor® 5, NMI, SUM, SPM, Intel® Node Manager, SSM, IPMI2.0, Watchdog |
|
Other features |
|
PCI Express x4 (Gen 3.x) slots |
2 |
|
PCI Express x8 (Gen 3.x) slots |
2 |
|
Supported DIMM module capacities |
4GB, 8GB, 16GB |
|
Maximum UDIMM memory |
64 GB |
|
Disk on Module (DOM) power connector |
Yes |
|
Number of DIMM slots |
4 |
|
Number of processors supported |
1 |
|
Technical details |
|
Sustainability certificates |
RoHS |
|
