60 W Single Output Industrial DIN-Rail Power Supply
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
23284918
|
TI-M6024
|
710931160376 |
Active
|
Details
|
General Information |
|
Summary |
TI-M6024 (Version v1.0R)

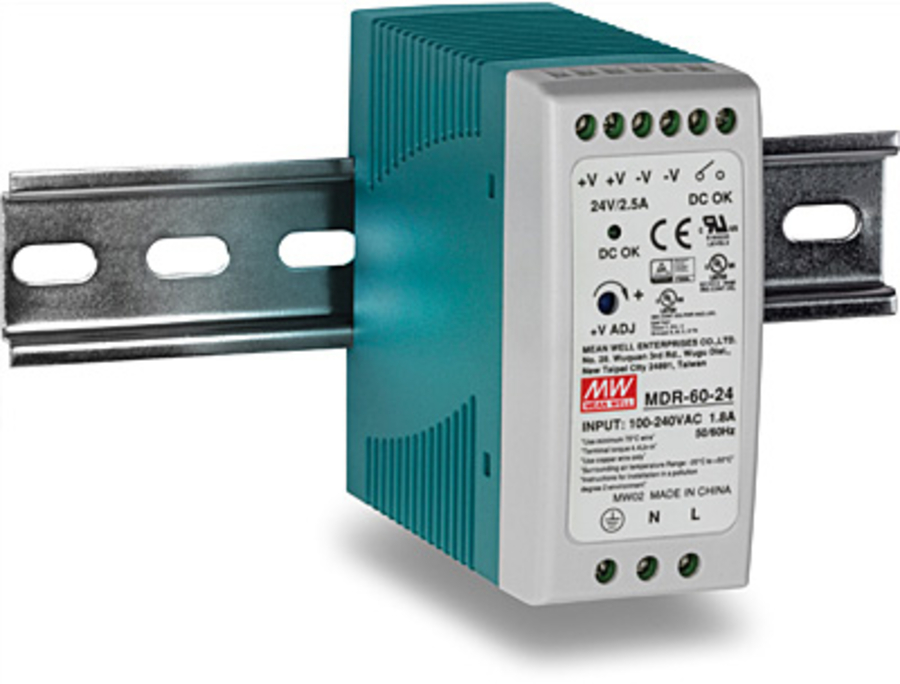

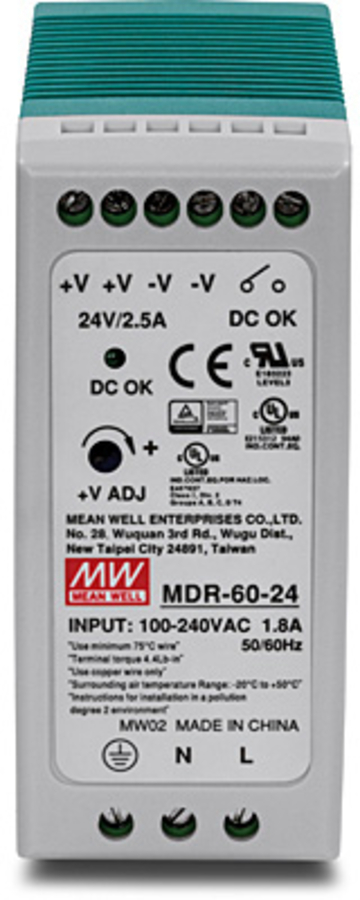

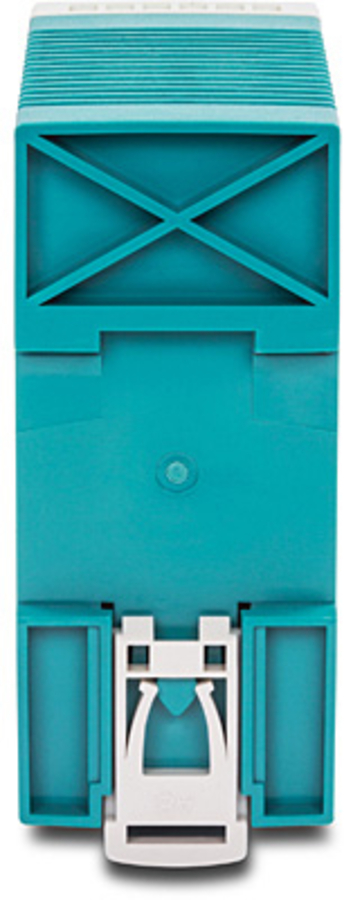

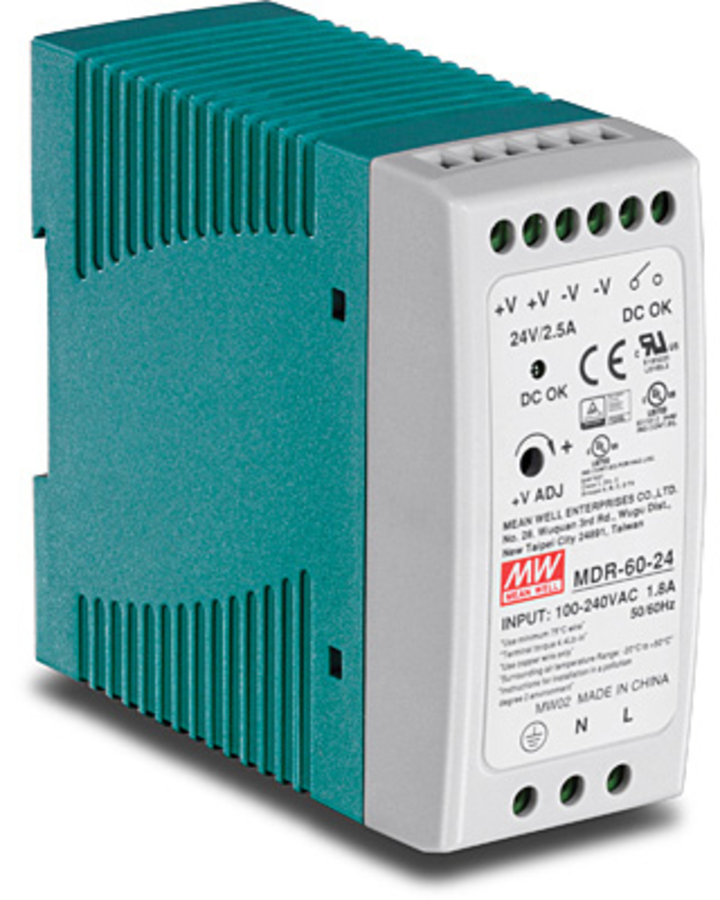

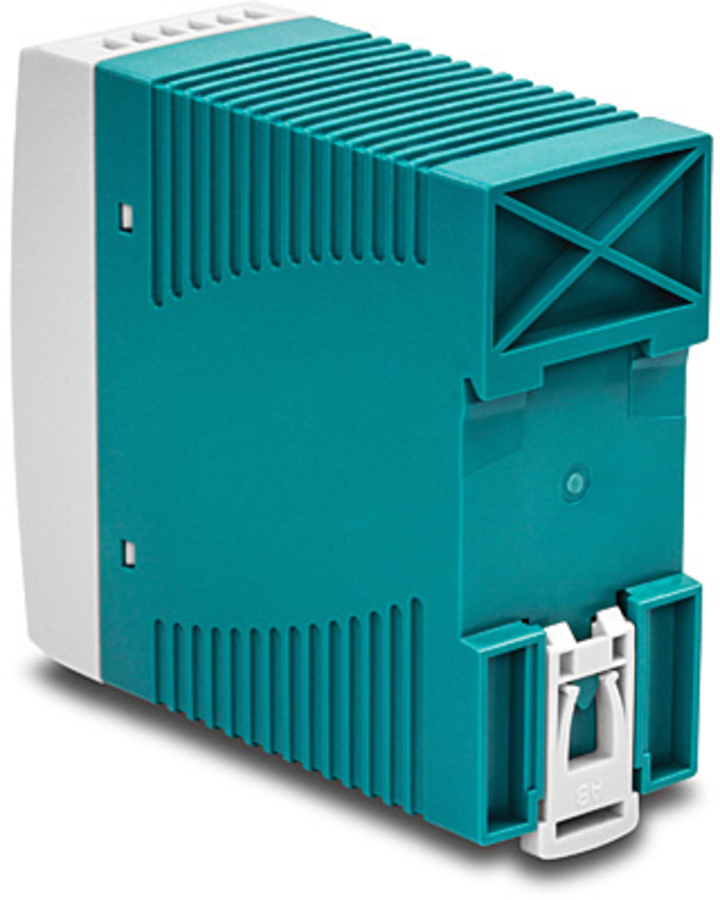

- Industrial power supply with integrated DIN-rail mount
- Provides up to 60 Watts of power (24 V, 2.5 A)
- Universal AC input
- Short circuit/overload/over voltage protection
- UL 508 approved
- 100% full load burn-in test
- Extreme -20 to 70 °C (-4 to 158 °F) operating temperature range |
|
Features |
|
Product type |
Power supply |
|
Product colour |
Green, White |
|
LED indicators |
Yes |
|
Power protection features |
Over voltage, Overload, Short circuit |
|
Mean time between failures (MTBF) |
2992000 h |
|
Power |
|
Total power |
60 W |
|
AC input voltage |
100 - 240 V |
|
AC input frequency |
50 - 60 Hz |
|
Maximum current |
1.8 A |
|
Certificates |
|
Certification |
CE, UL 508, UL 60950-1, CB 60950-1, TUV EN60950-1, Class I, Div. 2 hazardous locations T4 |
|
Operational conditions |
|
Operating temperature (T-T) |
-20 - 70 °C |
|
Operating relative humidity (H-H) |
0 - 90% |
|
Weight & dimensions |
|
Width |
40 mm |
|
Depth |
100 mm |
|
Height |
90 mm |
|
Weight |
300 g |
|
Logistics data |
|
Harmonized System (HS) code |
85177900 |
|
