General Information |
|
Summary |

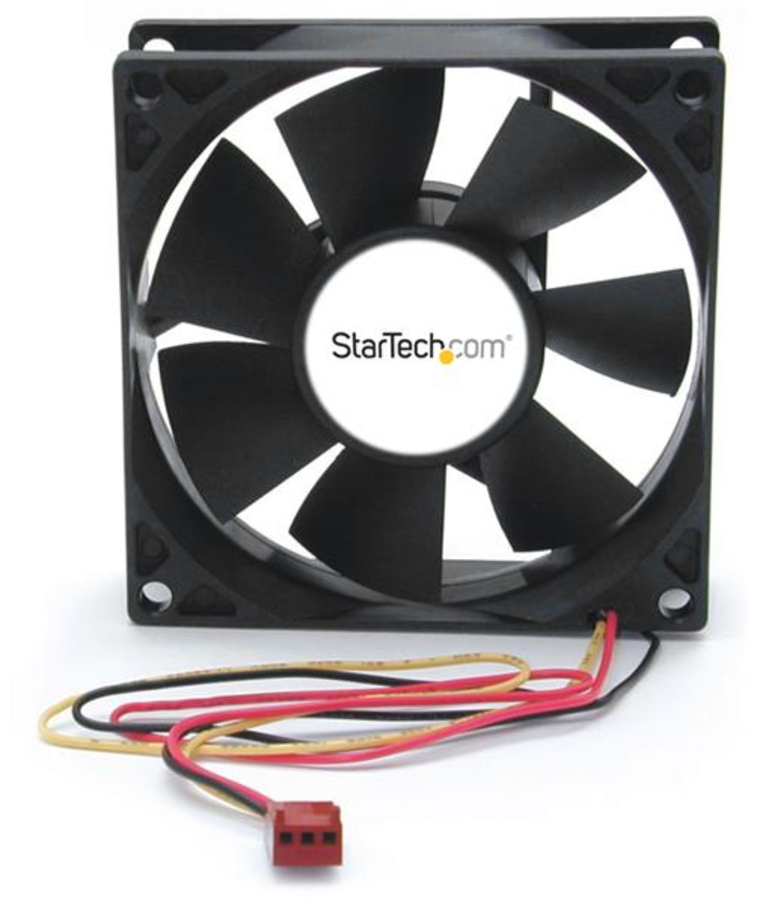

Add additional chassis cooling with a 80mm ball bearing fan
This versatile PC case fan measures 8cm x 8cm x 2.5cm (3 1/8" x 3 1/8" x 1"); designed to fit a broad range of computer case designs, helping to improve internal airflow within the computer case by circulating cool air into the case or exhausting warm air away from the computer. A quiet cooling solution, the 8cm dual ball-bearing fan features a high-efficiency blade design that's capable of moving 32 CFM throughout the computer case. This broadly compatible PC cooling solution can be powered through a simple TX3 (3-pin) connection to the computer power supply and is backed by StarTech.com's 2-year warranty. |
|
Performance |
|
Suitable location |
Computer case |
|
Type |
Fan |
|
Fan diameter |
8 cm |
|
Rotational speed (max) |
3000 RPM |
|
Noise level (high speed) |
34 dB |
|
Maximum airflow |
37.3 cfm |
|
Bearing type |
Ball bearing |
|
Mean time between failures (MTBF) |
56609 h |
|
Operating temperature (T-T) |
-10 - 80 °C |
|
Design |
|
Product colour |
Black |
|
Material |
Plastic |
|
Number of fans |
1 fan(s) |
|
Fan connector |
3-pin |
|
Power |
|
Power consumption (typical) |
1.92 W |
|
Voltage |
12 V |
|
Rated current |
0.16 A |
|
Weight & dimensions |
|
Width |
80 mm |
|
Depth |
80 mm |
|
Height |
25 mm |
|
Weight |
70 g |
|
Package width |
95 mm |
|
Package depth |
143 mm |
|
Package height |
34 mm |
|
Package weight |
97 g |
|
Technical details |
|
Compliance certificates |
RoHS |
|
Packaging content |
|
Screws included |
Yes |
|
Number of screws |
4 |
|
Logistics data |
|
Harmonized System (HS) code |
84733080 |
|
Master (outer) case width |
362 mm |
|
Master (outer) case length |
588 mm |
|
Master (outer) case height |
226 mm |
|
Products per master (outer) case |
100 pc(s) |
