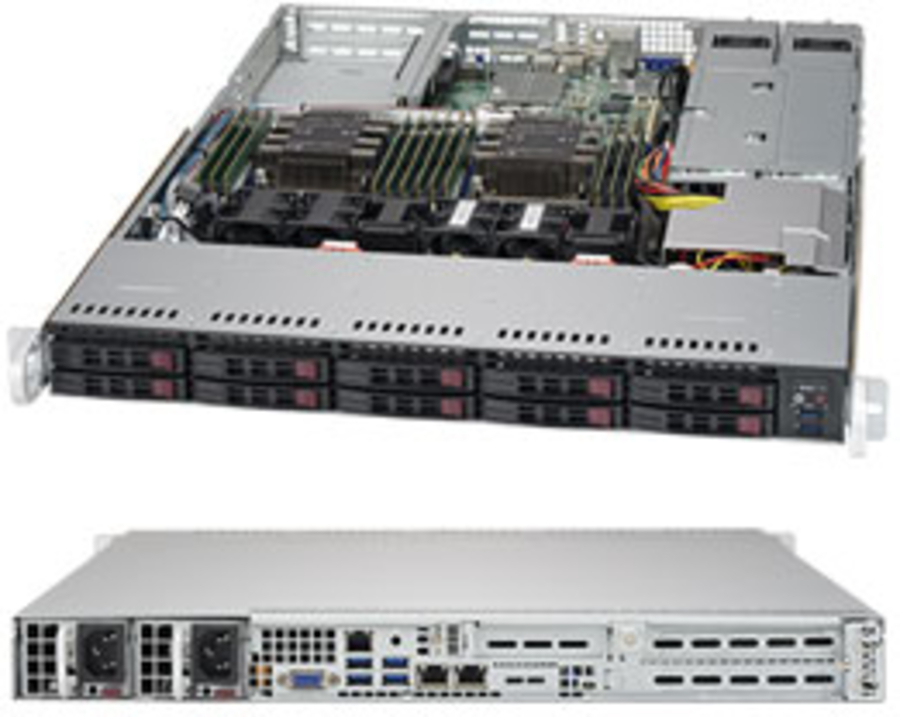

Supermicro SuperServer 1029P-WTRT S3647 DP 1U Barebone System
|
|
Price: $2741.00
Manufacturer:
Supermicro
Dual Socket P (LGA 3647), 12 DIMM DDR4, Intel C622, 8x SATA III, 2x RJ-45, IPMI LAN, 6x USB 3.0, VGA, 2x SuperDOM, 2x 750 W, 1U, 437x597x43 mm
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
28904812
|
SYS-1029P-WTRT
|
672042263455 |
Active
|
Details
|
General Information |
|
Summary |
SuperServers are Your Best Choice!
SuperServer Benefits:
- Uncompromising Quality Control
- The most Comprehensive Line of Servers, Storage Systems, and Subsystems
- Widest Variety of Application Optimized Solutions, from High End Clusters to MicroServers
- Best Performance per-Watt, per-Square-Foot, and per-Dollar
- Superior Product Design Based in Silicon Valley
- Consistently First-to-Market
- Best Total Cost of Ownership (TCO)
- Highest Quality Components and Materials
- 3-Year Limited Warranty
- 24-Hour Support and Global Services
- Redfish API support
These benefits combined with an excellent track record have earned Supermicro a reputation as a true leader in the high-end server/storage industry. Supermicro provides the most outstanding product line in the industry, ranging from single Atom and dual Xeon to quad Xeon MP systems. Their proven high level of quality and performance has made SuperServers the platform of choice for HPC, enterprise, cloud, data center, hyperscale, embedded, and business-critical, front-end server applications. |
|
Processor |
|
Built-in processor |
No |
|
Motherboard chipset |
Intel C622 |
|
Processor socket |
LGA 3647 (Socket P) |
|
Number of processors supported |
2 |
|
System bus rate |
10.4 GT/s |
|
Compatible processor series |
Intel® Xeon® |
|
Memory |
|
Number of DIMM slots |
12 |
|
Supported memory types |
DDR4-SDRAM |
|
Maximum internal memory |
1.5 TB |
|
Maximum RDIMM memory |
768 GB |
|
Supported RDIMM clock speeds |
2133,2400,2666 MHz |
|
ECC |
Yes |
|
Storage |
|
Number of storage drives supported |
8 |
|
Hot-swap HDD bays |
Yes |
|
Supported storage drive interfaces |
Serial ATA III |
|
RAID levels |
0, 1, 5, 10 |
|
Graphics |
|
On-board graphics card model |
Aspeed AST2500 |
|
Network |
|
Ethernet LAN |
Yes |
|
Copper ethernet cabling technology |
10GBASE-T |
|
Ports & interfaces |
|
Ethernet LAN (RJ-45) ports |
2 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
6 |
|
IPMI LAN (RJ-45) port |
Yes |
|
VGA (D-Sub) ports quantity |
1 |
|
Number of SATA III connectors |
8 |
|
Expansion slots |
|
PCI Express slots version |
3.0 |
|
PCI Express x8 slots |
1 |
|
PCI Express x16 slots |
3 |
|
Features |
|
PC health monitoring |
CPU, Fan, Temperature |
|
Backplanes support |
Yes |
|
Technical details |
|
Sustainability certificates |
RoHS |
|
Logistics data |
|
Harmonized System (HS) code |
84714100 |
|
BIOS |
|
BIOS type |
AMI |
|
BIOS memory size |
32 Mbit |
|
Design |
|
Chassis type |
Rack (1U) |
|
Product colour |
Black |
|
LED indicators |
HDD, Network, Power |
|
On/off switch |
Yes |
|
Number of fans |
6 fan(s) |
|
Fan diameter |
4 cm |
|
Power |
|
Power supply |
750 W |
|
Redundant power supply (RPS) support |
Yes |
|
Number of redundant power supplies installed |
2 |
|
Operational conditions |
|
Operating temperature (T-T) |
10 - 35 °C |
|
Storage temperature (T-T) |
-40 - 60 °C |
|
Operating relative humidity (H-H) |
8 - 90% |
|
Storage relative humidity (H-H) |
5 - 95% |
|
Weight & dimensions |
|
Width |
437 mm |
|
Depth |
597 mm |
|
Height |
43 mm |
|
Weight |
20.9 kg |
|
