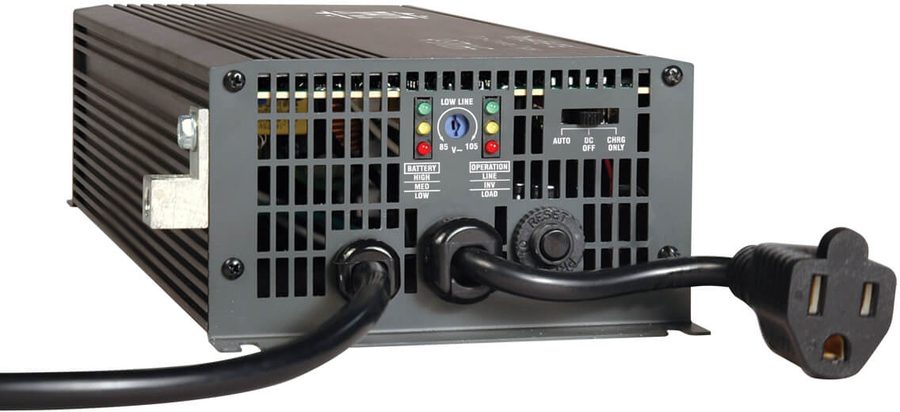

Tripp Lite 12APS700HF DC to AC inverter w/Integrated Battery Charger
|
|
Price: $447.00
Manufacturer:
Tripp Lite
PowerVerter APS Ultra-Compact Inverter/Charger, Auto-Transfer Switching
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
31001
|
APS700HF
|
37332126948 |
Active
|
Details
|
General Information |
|
Summary |
Tripp Lite's APS700HF Ultra-Compact DC-to-AC inverter with automatic line-to-battery transfer and integrated charging system serves as an extended run UPS, a standalone power source or an automotive inverter. Supplies up to 700 watts of continuous 120V AC power to 1 AC outlet from any 12V battery or automotive DC source. OverPower inverter output feature provides up to 120% of the continuous output for up to 5 seconds, and DoubleBoost inverter output feature delivers up to 200% of the continuous output for up to 2 seconds, providing the extra power needed to cold start heavy-duty tools and motorized equipment. When AC cable is connected to a live wall socket, commercial power passes through to connected equipment and the battery set is recharged via 3-stage, 6-amp charging system. In UPS mode, the APS system responds to blackouts and voltage fluctuations with a near instantaneous automatic transfer to battery-derived AC output. Includes a set of high current DC input terminals for simple installation (user supplies batteries and cabling - see owner's manual for recommendations). Passes sine wave utility or generator power during battery charging and UPS line power mode, plus efficient PWM sine wave AC output in inverter and UPS backup modes. Supports an unlimited amount of runtime with any number of user-supplied batteries connected.
- 12V DC or 120V AC input; 120V AC output; 1 outlet
- 700 watts continuous, 1050 watts OverPower and 1400 watts DoubleBoost inverter output
- 6 amp rated, 3-stage, built-in battery charger
- Auto Transfer Switching option for battery backup / UPS operation - with ISOBAR AC surge suppression
- Ultra-compact, lightweight aluminum housing weighs only 4 lbs. / 1.8 kg |
|
Features |
|
Input frequency |
60 Hz |
|
Output power |
1400 W |
|
Output voltage |
120 V |
|
Design |
|
Product colour |
Black |
|
LED indicators |
Yes |
|
Weight & dimensions |
|
Width |
36.8 mm |
|
Depth |
21.6 mm |
|
Height |
21.6 mm |
|
Weight |
1.81 kg |
|
Packaging data |
|
Package width |
368.3 mm |
|
Package depth |
215.9 mm |
|
Package height |
215.9 mm |
|
Package weight |
2.49 kg |
|
Logistics data |
|
Harmonized System (HS) code |
8504.40.9570 |
|
Country of origin |
China |
|
Master (outer) case width |
431.8 mm |
|
Master (outer) case length |
374.6 mm |
|
Master (outer) case height |
222.2 mm |
|
Products per master (outer) case |
4 pc(s) |
|
Master (outer) case GTIN (EAN/UPC) |
10037332126945 |
|
Other features |
|
Dimensions (WxDxH) |
36.83 x 21.59 x 21.59 mm |
|
Overload protection |
Yes |
|
