General Information |
|
Summary |

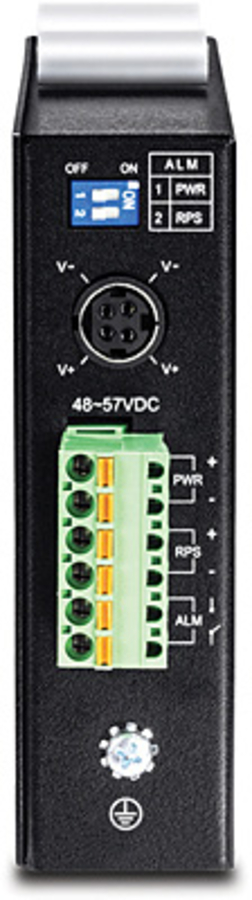

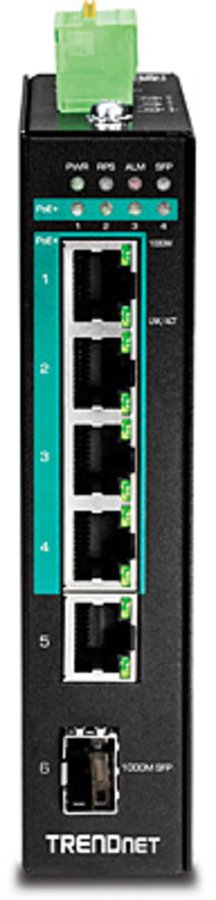

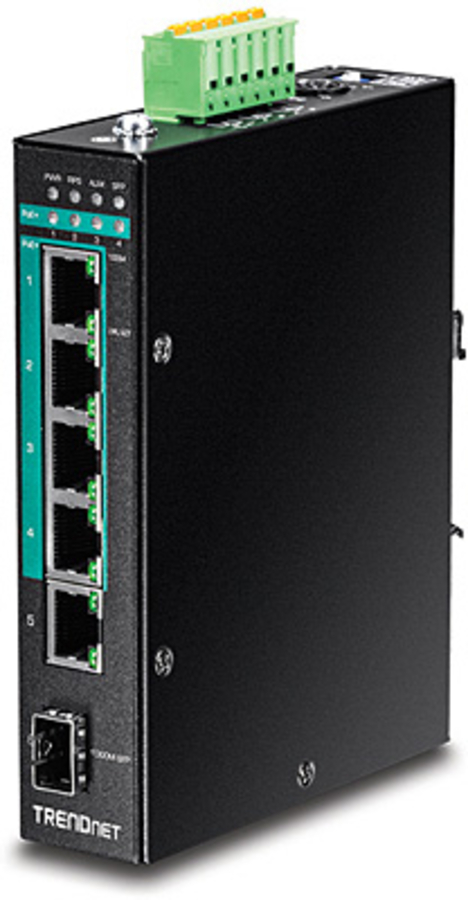

TRENDnet’s TI-PG541 is a reliable IP30 unmanaged PoE+ DIN-rail switch with hardened components rated for extreme industrial environments. It offers four Gigabit PoE+ ports (Ports 1-4, 802.3at), one Gigabit port, one SFP slot, and a full PoE power budget of 120 Watts. Dual redundant power inputs (power adapter sold separately) with overload current protection support zero downtime requirements. An alarm output can be triggered by a primary and/or redundant power failure. |
|
Management features |
|
Switch type |
Unmanaged |
|
Switch layer |
L2 |
|
Ports & interfaces |
|
Basic switching RJ-45 Ethernet ports quantity |
5 |
|
Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
|
Gigabit Ethernet (copper) ports quantity |
5 |
|
SFP module slots quantity |
1 |
|
Power connector |
DC-in jack |
|
Network |
|
Networking standards |
IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
|
10G support |
No |
|
Copper ethernet cabling technology |
1000BASE-T, 100BASE-TX, 10BASE-T |
|
Full duplex |
Yes |
|
Flow control support |
Yes |
|
Optical fiber |
|
Fiber ethernet cabling technology |
1000BASE‑LX, 100BASE-SX |
|
Data transmission |
|
MAC address table |
8000 entries |
|
Switching capacity |
12 Gbit/s |
|
Throughput |
8.9 Mpps |
|
Store-and-forward |
Yes |
|
Jumbo frames support |
Yes |
|
Design |
|
Rack mounting |
No |
|
Product colour |
Black |
|
Housing material |
Metal |
|
LED indicators |
Yes |
|
International Protection (IP) code |
IP30 |
|
Performance |
|
Buffer size |
512 KB |
|
Power |
|
Redundant power supply (RPS) support |
Yes |
|
AC input voltage |
100 - 240 V |
|
AC input frequency |
50 - 60 Hz |
|
Power consumption (typical) |
130 W |
|
Power over Ethernet (PoE) |
|
Power over Ethernet (PoE) |
Yes |
|
Power over Ethernet plus (PoE+) ports quantity |
4 |
|
Total Power over Ethernet (PoE) budget |
120 W |
|
Operational conditions |
|
Operating temperature (T-T) |
-20 - 60 °C |
|
Operating relative humidity (H-H) |
0 - 95% |
|
Weight & dimensions |
|
Width |
100 mm |
|
Depth |
30 mm |
|
Height |
135 mm |
|
Weight |
500 g |
|
Packaging content |
|
Quick start guide |
Yes |
|
Certificates |
|
Certification |
CE, FCC |
|
Logistics data |
|
Harmonized System (HS) code |
85176990 |
