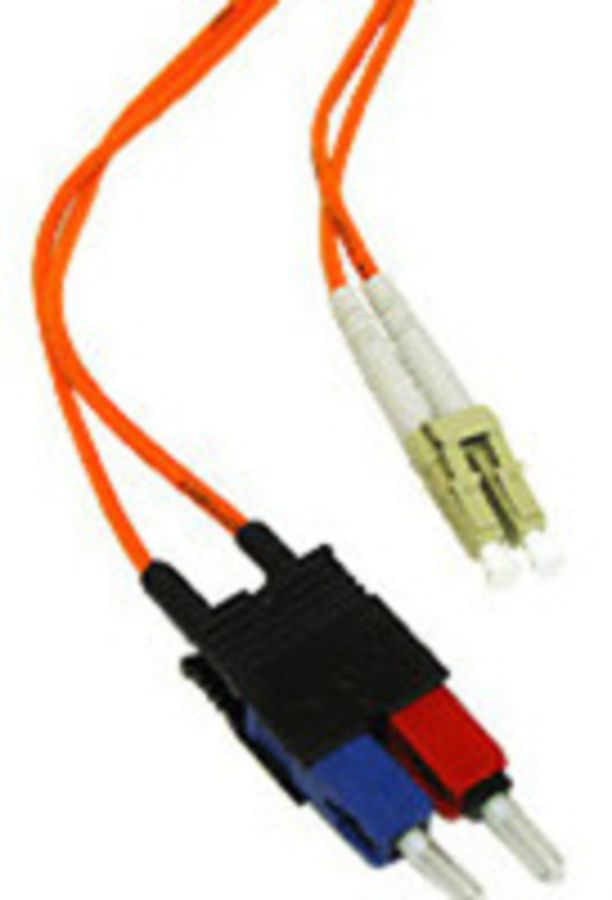

C2G 30-Foot Duplex Multimode Fibre Optic Patch Cable LC/SC 50/125, Orange
|
|
Price: $33.00
Manufacturer:
C2G
9m LC/SC Duplex 50/125, Orange
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
33523
|
33022
|
- |
Active
|
Details
|
General Information |
|
Summary |
Get the performance you demand at a price that makes sense with 50/125 multimode fiber patch cords from Cables To Go. They provide higher bandwidth and transmission rates and support longer distances with lower loss than 62.5/125 fiber, but are still cost effective. Perfect for use with today's narrower aperture components, they are fully compatible with multimode applications. 50/125 multimode patch cords from Cables To Go are well-suited for protocols such as Ethernet, Fibre Channel, Infiniband, ATM, and Internet Protocol.
Features:
- Fully compatible with multimode fiber applications
- A Cost effective solution that provides lower loss and higher bandwidth supporting longer distances
- Perfect for use in Gigabit Ethernet applications
Specifications:
- Connectors: (2) LC to (2) SC
- Buffer material: PVC
- Buffer OD: 900 µm
- Jacket material: PVC (OFNR-rated)
- Jacket OD: 3.0 mm
- Jacket color: Orange
- Attenuation @850 nm: 3.75 dB/km
- Attenuation @1310 nm: 1.5 dB/km
- Min. bandwidth @850 nm: 160 kHz/km
- Min. bandwidth @1310 nm: 500 kHz/km
- Maximum tensile load: 100 N/cm
- Loaded min. bend radius: 5 cm
- Unloaded min. bend radius: 3 cm
- Crush resistance: 750 N/cm
- Impact resistance: 1000 cycles
- Flex resistance: 5000 cycles |
|
Features |
|
Cable length |
9 m |
|
Connector 1 |
LC |
|
Connector 2 |
SC |
|
Product colour |
Orange |
|
