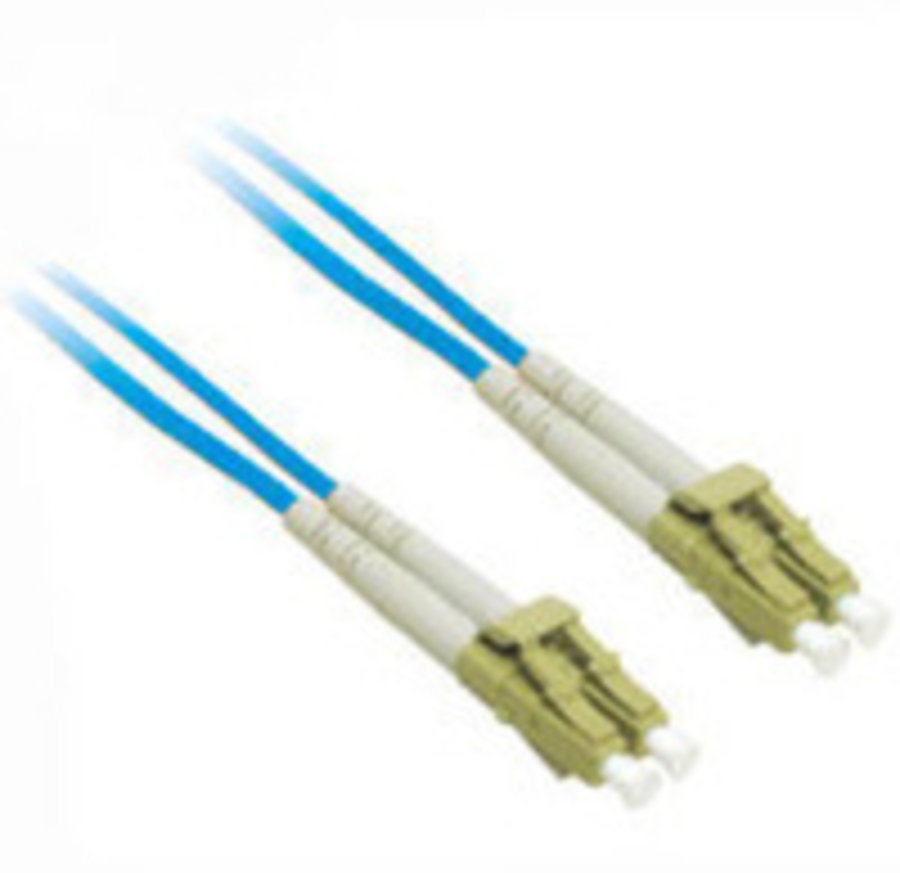

C2G 6.6-Foot Duplex Multimode Fibre Optic Patch Cable LC/LC 50/125, Blue
|
|
Price: $27.00
Manufacturer:
C2G
2m LC/LC Duplex 50/125 Multimode Fiber Patch Cable - Blue
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
33620
|
37366
|
757120373667 |
Active
|
Details
|
General Information |
|
Summary |
Get the performance you demand at a price that makes sense with multicolored 50/125 multimode fiber patch cords from Cables To Go. They provide higher bandwidth and transmission rates and support longer distances with lower loss than 62.5/125 fiber, but are still cost effective. Perfect for use with today's narrower aperture components, they are fully compatible with multimode applications. 50/125 multimode patch cords from Cables To Go are well-suited for protocols such as Ethernet, Fibre Channel, Infiniband, ATM, and Internet Protocol.
These multicolored fiber optic patch cables enable you to quickly identify various applications present in your fiber distribution system. The connectors on each end are color-coded for easy identification in a congested patch field.
- Fully compatible with multimode fiber applications
- A Cost effective solution that provides lower loss and higher bandwidth supporting longer distances
- Perfect for use in Gigabit Ethernet applications
- Color-coded connector keys available in red, blue, green and black
- Lifetime warranty against defects of materials and workmanship
- Connectors: (2) LC to (2) LC
- Buffer material: PVC
- Buffer OD: 900 µm
- Jacket material: PVC (OFNR-rated)
- Jacket OD: 3.0 mm
- Jacket color: Blue
- Attenuation @850 nm: 3.75 dB/km
- Attenuation @1310 nm: 1.5 dB/km
- Min. bandwidth @850 nm: 160 kHz/km
- Min. bandwidth @1310 nm: 500 kHz/km
- Maximum tensile load: 100 N/cm
- Loaded min. bend radius: 5 cm
- Unloaded min. bend radius: 3 cm
- Crush resistance: 750 N/cm
- Impact resistance: 1000 cycles
- Flex resistance: 5000 cycles |
|
Features |
|
Cable length |
2 m |
|
Connector 1 gender |
Male |
|
Connector 2 gender |
Male |
|
Product colour |
Blue |
|
Full duplex |
Yes |
|
Other features |
|
Core / cladding diameter |
50/125 µm |
|
