General Information |
|
Summary |

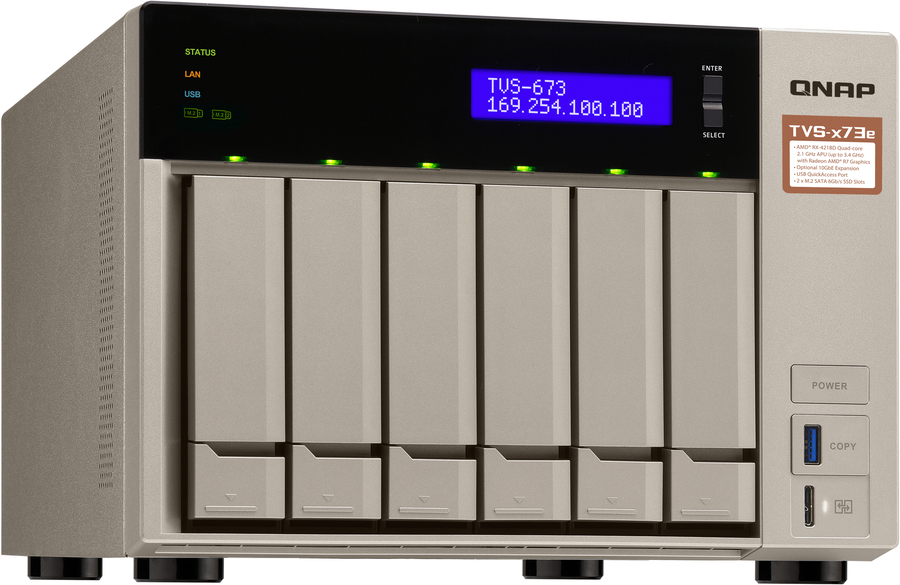

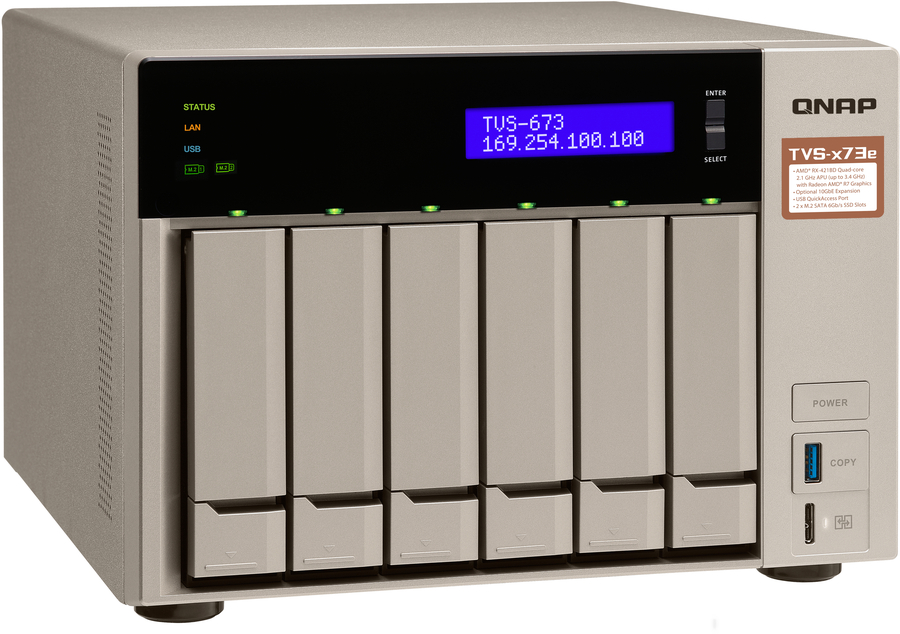

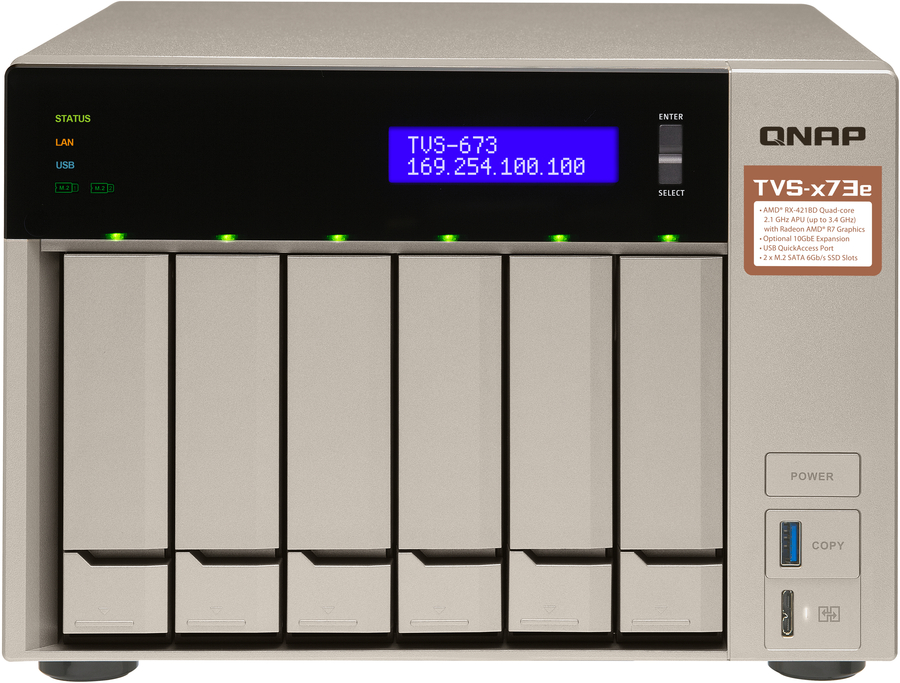

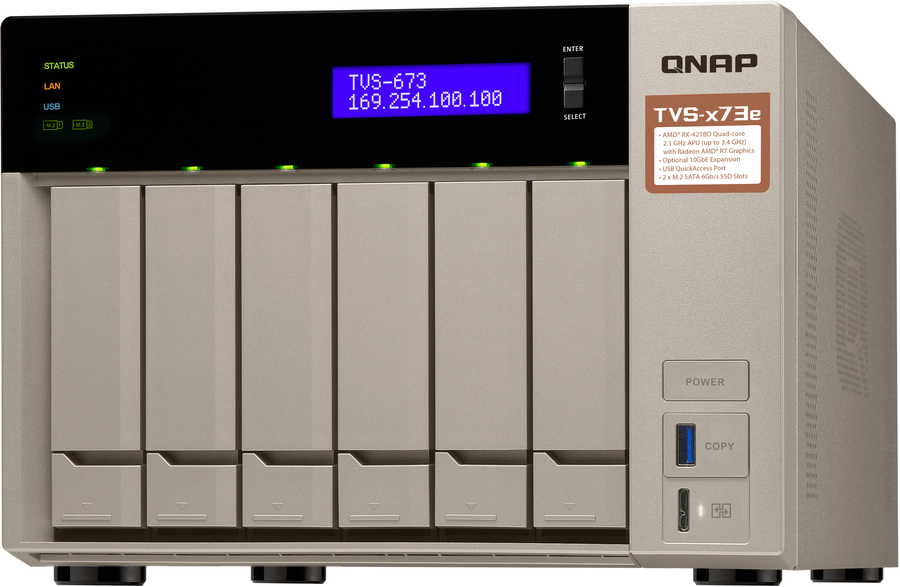

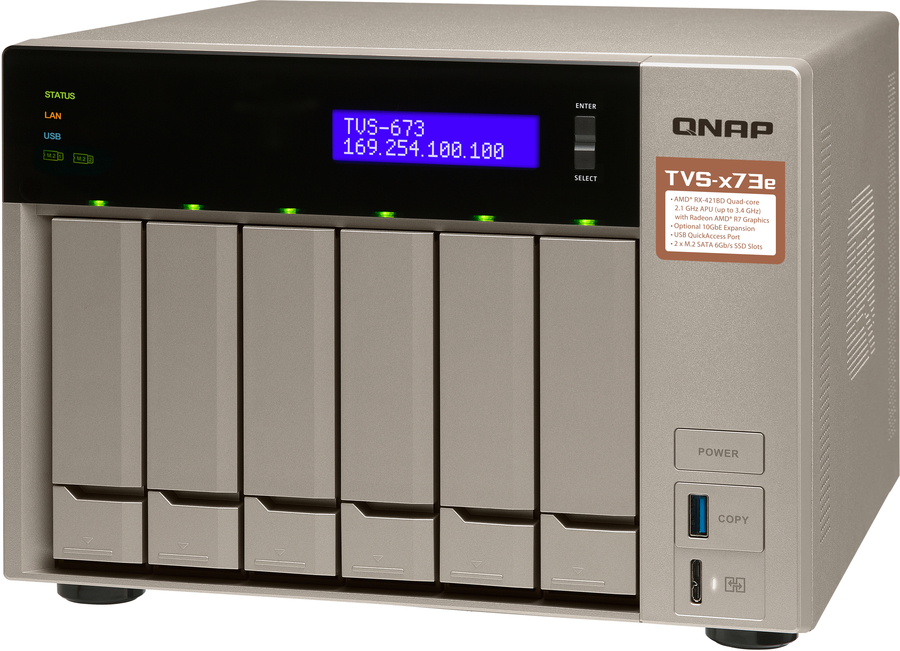

The TVS-673e is powered by a high-end AMD R-Series APU that incorporates an exceptional CPU with AMD Radeon™ R7 Graphics performance, delivering a high-performance and energy-efficient NAS solution. Built with a state-of-the-art metal design and topped off with a stylish gold finish, the highly-capable TVS-673e provides PCIe expandability, the unique USB QuickAccess port, HDMI 4K@ 30Hz output, and 4K H.264 video decoding and encoding acceleration for an optimum audiovisual experience. |
|
Storage |
|
Storage drives installed |
No |
|
Total installed storage capacity |
0 TB |
|
Number of storage drives installed |
0 |
|
Number of storage drives supported |
6 |
|
Installed storage drive type |
No |
|
Supported storage drive types |
HDD & SSD |
|
Storage drive capacity |
0 GB |
|
RAID support |
Yes |
|
Supported storage drive interfaces |
Serial ATA III |
|
Storage drive sizes supported |
2.5,3.5" |
|
Number of M.2 (M & B) slots |
2 |
|
RAID levels |
0, 1, 5, 6, 10, JBOD |
|
Online RAID migration |
Yes |
|
Online RAID expansion |
Yes |
|

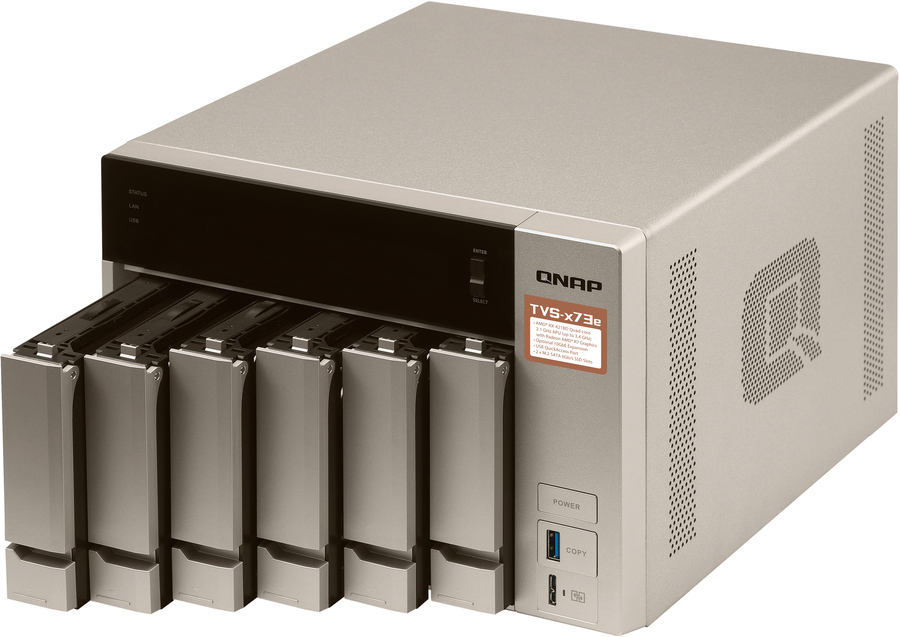

Hot-swap drive bays |
Yes |
|
Supported file systems |
FAT32, HFS+, NTFS, exFAT, ext3, ext4 |
|
Processor |
|
Processor family |
AMD Embedded R-Series SoC |
|
Processor model |
RX-421BD |
|
Processor frequency |
2.1 GHz |
|
Processor cores |
4 |
|
On-board graphics card model |
AMD Radeon R7 |
|
Memory |
|
Internal memory |
8 GB |
|
Internal memory type |
DDR4 |
|
Maximum RAM supported |
64 GB |
|
Memory slots |
4 |
|
Memory form factor |
SO-DIMM |
|
Flash memory |
512 MB |
|
Network |
|
Ethernet LAN |
Yes |
|
Ethernet LAN data rates |
10,100,1000 Mbit/s |
|
Wi-Fi |
No |
|
DHCP client |
Yes |
|
DHCP server |
Yes |
|
Jumbo frames support |
Yes |
|
iSCSI support |
Yes |
|
Wake-on-LAN ready |
Yes |
|
Dynamic DNS (DDNS) |
Yes |
|

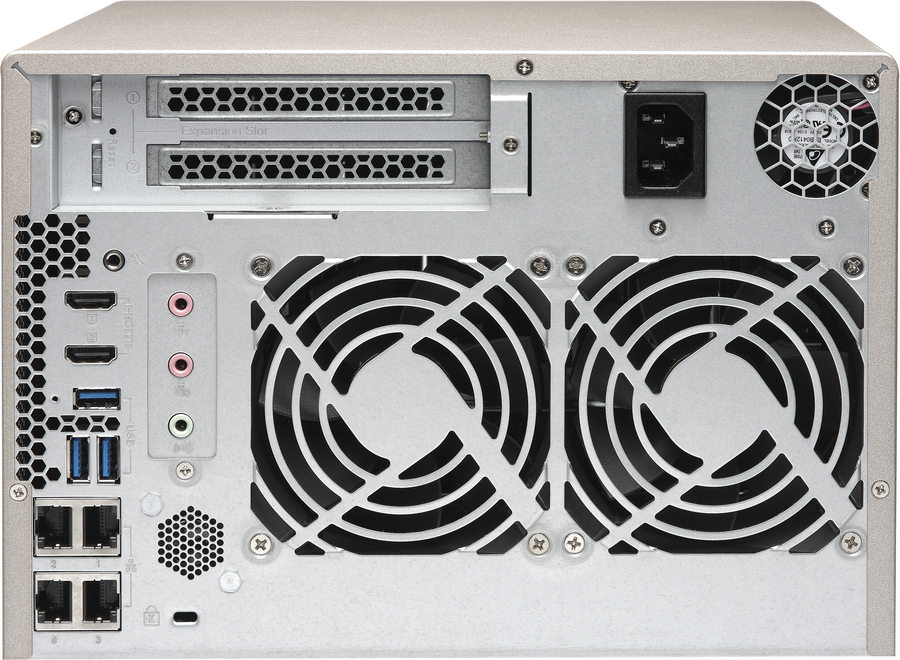

Ports & interfaces |
|
Ethernet LAN (RJ-45) ports |
4 |
|
USB port |
Yes |
|
USB 2.0 ports quantity |
0 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
|
Fiber ports quantity |
0 |
|
HDMI ports quantity |
2 |
|
HDMI version |
1.4b |
|
3.5 mm (1/8-inch) out |
Yes |
|
Microphone in |
Yes |
|
PCI Express x4 (Gen 3.x) slots |
2 |
|
Design |
|
Chassis type |
Tower |
|
Cooling type |
Active |
|
Product colour |
Gold |
|
Number of fans |
3 fan(s) |
|
Fan diameter |
9 cm |
|
Fan diameter 2 |
6 cm |
|
Built-in display |
Yes |
|
Display type |
LCD |
|
Cable lock slot |
Yes |
|
Cable lock slot type |
Kensington |
|
Built-in speaker(s) |
Yes |
|
Number of built-in speakers |
2 |
|
Performance |
|
Type |
NAS |
|
Device class |
Home & Home Office |
|
Backup function |
Yes |
|
Backup features |
Cloud, iSCSI LUN |
|
Buzzer |
Yes |
|
Multilingual support |
Yes |
|
Security algorithms |
256-bit AES, HTTPS, SNMP, SSH, SSL/TLS |
|
Access Control List (ACL) |
Yes |
|
Browser supported |
Apple Safari 7, Google Chrome, Microsoft Internet Explorer 10, Mozilla Firefox |
|
Backup button |
Yes |
|
Universal Plug and Play (UPnP) |
Yes |
|
Software |
|
Operating system installed |
QNAP Turbo System |
|
Operating system version |
4.3 |
|
Windows operating systems supported |
Windows 10, Windows 7, Windows 8 |
|
Linux operating systems supported |
Yes |
|
Mac operating systems supported |
Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
|
Server operating systems supported |
Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016 |
|
Power |
|
Power supply location |
Built-in |
|
Power supply unit (PSU) capacity |
250 W |
|
AC input voltage |
100 - 240 V |
|
AC input frequency |
50 - 60 Hz |
|
Weight & dimensions |
|
Width |
264.3 mm |
|
Depth |
279.6 mm |
|
Height |
188.2 mm |
|
Weight |
5.63 kg |
|
Packaging content |
|
Cables included |
AC, LAN (RJ-45) |
|
Quick installation guide |
Yes |
|
Number of screws |
14 |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Operating relative humidity (H-H) |
5 - 95% |
