General Information |
|
Summary |

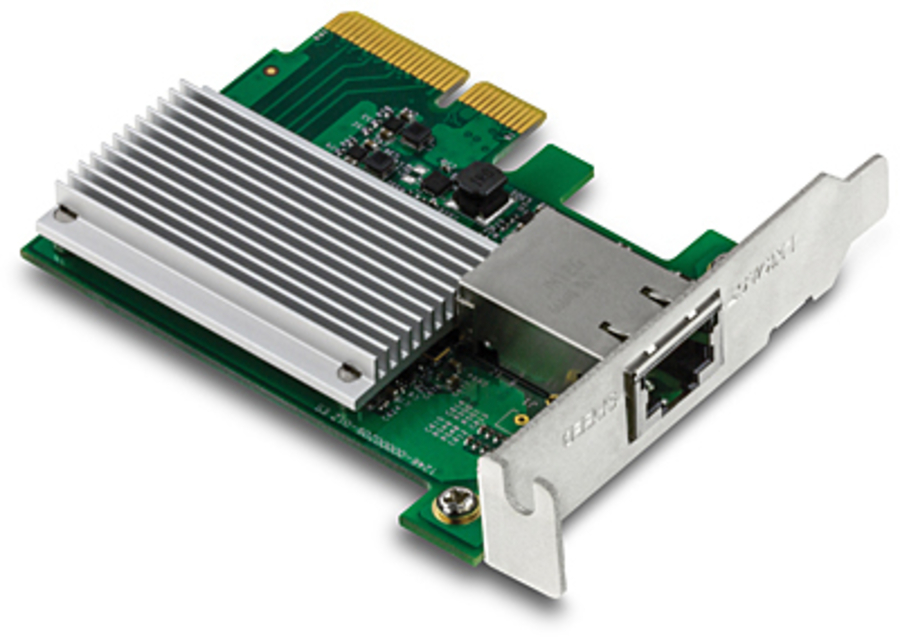

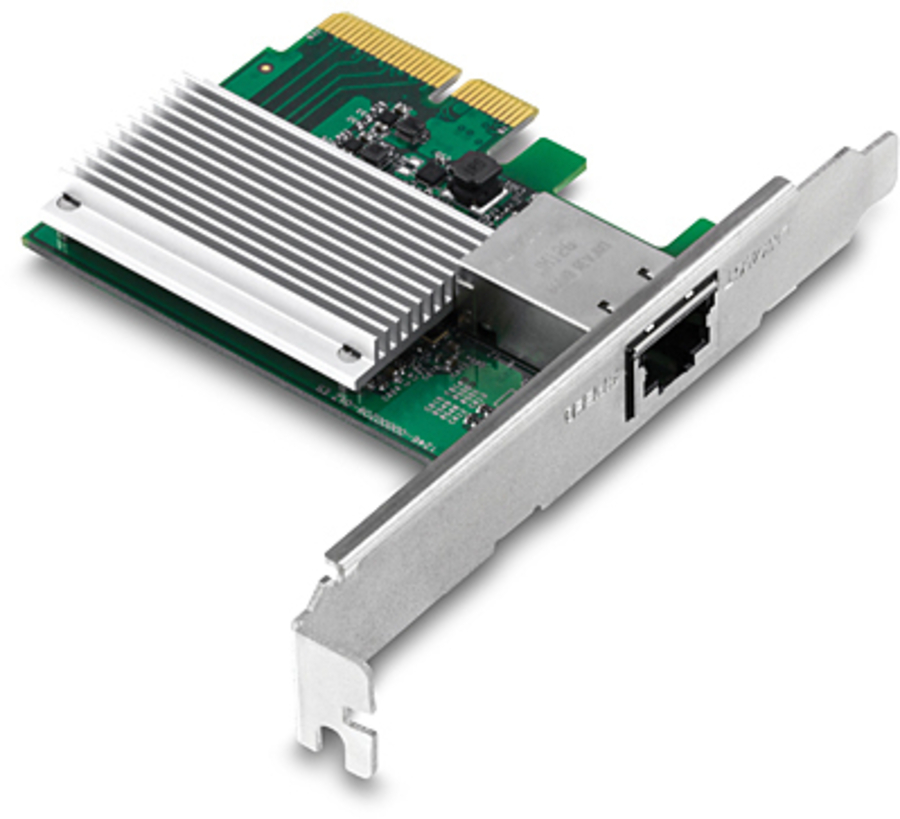

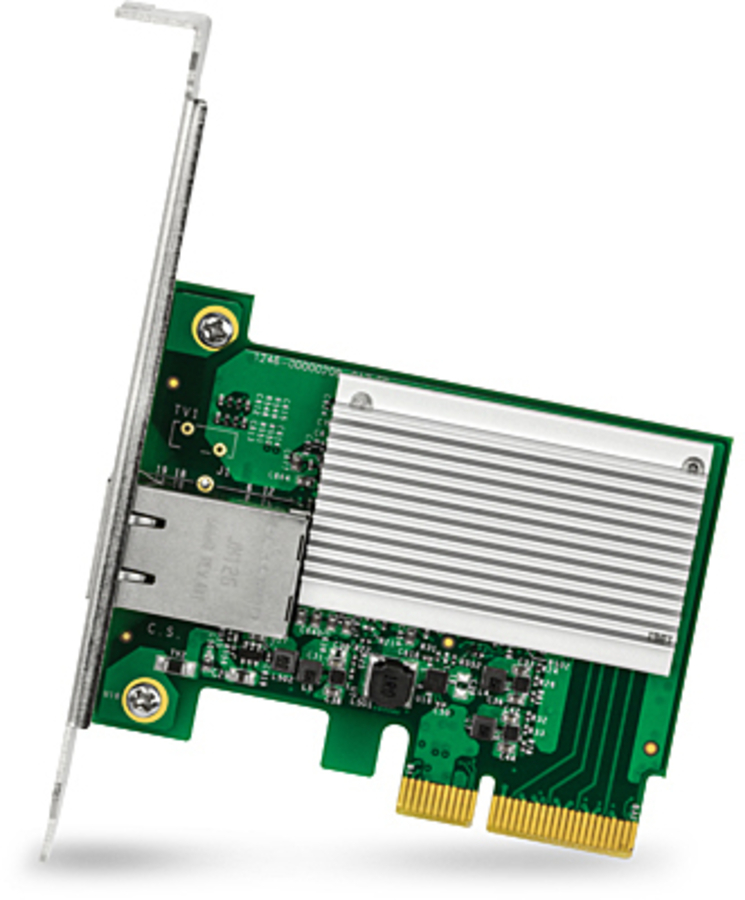

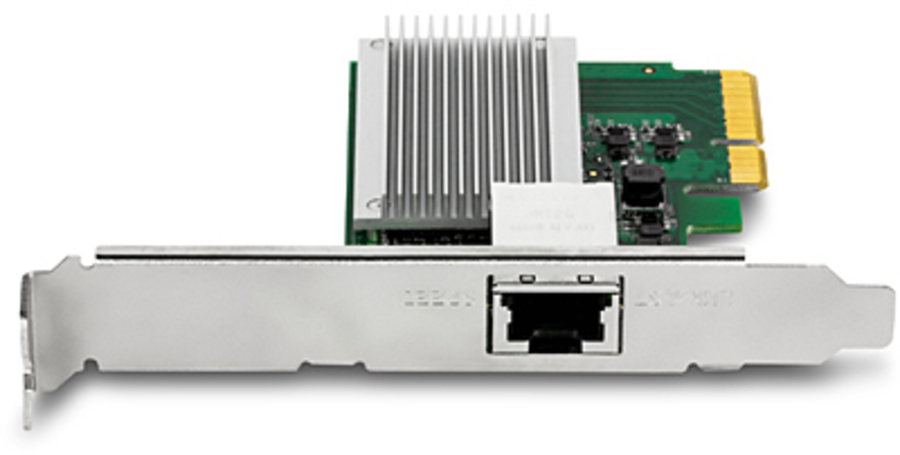

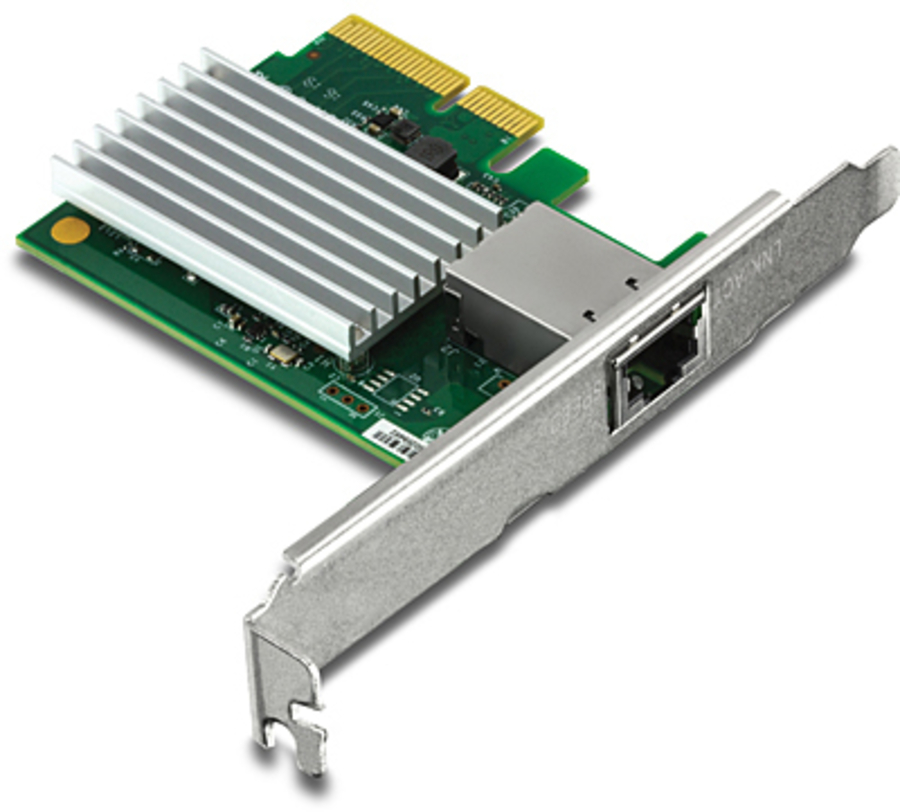

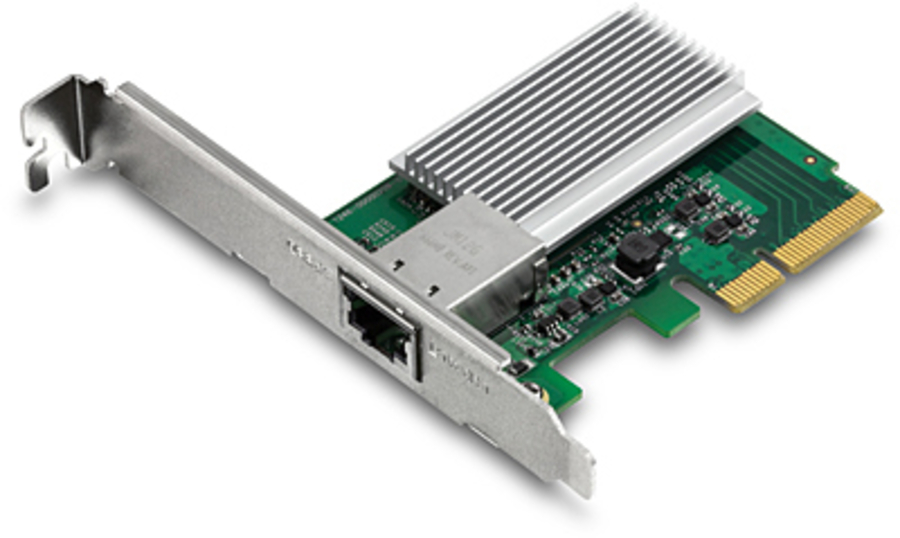

TRENDnet’s 10 Gigabit PCIe Network Adapter, model TEG-10GECTX, converts a free PCI Express slot into a 10 Gigabit Ethernet port.
10 G Port
Supports five selectable speeds: 10 Gbps, 5 Gbps, 2.5 Gbps, 1 Gbps, and 100 Mbps
PCI Express
Converts a PCIe 2.0 x4 slot into a 10 G Ethernet Port
NBASE-T™ Ethernet Technology
NBASE-T draft specification supports 2.5 and 5 Gbps speeds over standard Cat 5e cables at distances up to 100 m
Jumbo Frame
Sends larger packets, or jumbo frames (up to 16 KB), for increased performance
VLAN Support
IEEE 802.1Q tagged-based VLAN support
Brackets

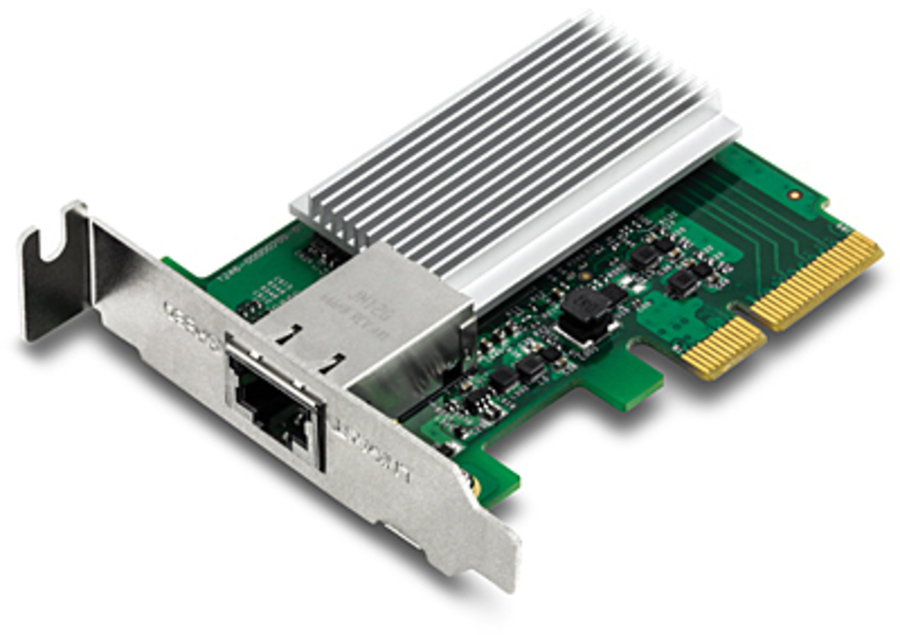

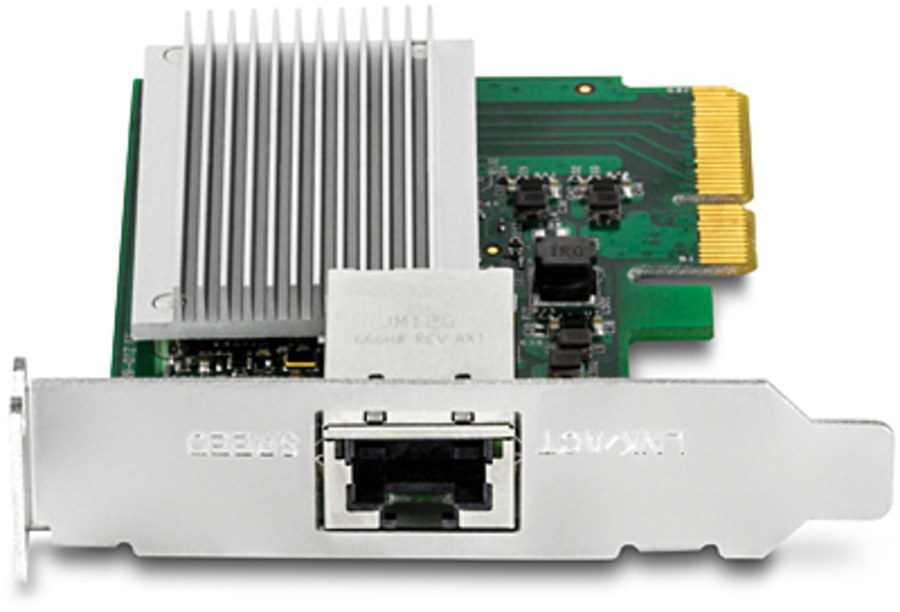

Supports most installations with included standard and low-profile brackets
Operating Systems
Compatible with Windows®, Windows Server®, and Linux® operating systems.
LED Indicators
LED indicators convey port status, link speed and activity. |
|
Ports & interfaces |
|
Connectivity technology |
Wired |
|
Host interface |
PCI Express |
|
Interface |
Ethernet |
|
Ethernet LAN (RJ-45) ports |
1 |
|
Network |
|
Maximum data transfer rate |
10000 Mbit/s |
|
Networking standards |
IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3an, IEEE 802.3u |
|
Ethernet LAN |
Yes |
|
Ethernet interface type |
10 Gigabit Ethernet |
|
Ethernet LAN data rates |
10,100,1000,10000 Mbit/s |
|
Copper ethernet cabling technology |
10BASE-T, 10GBASE-T, 100BASE-TX, 1000BASE-T |
|
Jumbo frames support |
Yes |
|
Jumbo frames |
16000 |
|
VLAN tagging |
Yes |
|
Design |
|
Internal |
Yes |
|
Product colour |
Green, Grey |
|
LED indicators |
Yes |
|
Certification |
FCC, CE |
|
System requirements |
|
Windows operating systems supported |
Yes |
|
Linux operating systems supported |
Yes |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 50 °C |
|
Weight & dimensions |
|
Width |
84 mm |
|
Depth |
18 mm |
|
Height |
63 mm |
|
Weight |
62 g |
|
Packaging data |
|
Low-profile bracket |
Yes |
|
Packaging content |
|
Mounting brackets included |
Yes |
|
Manual |
Yes |
|
Logistics data |
|
Harmonized System (HS) code |
85176990 |
|
Other features |
|
Quick start guide |
Yes |
|
Receive Side Scaling (RSS) |
Yes |
|
