General Information |
|
Summary |
Connect two DVI-D displays simultaneously to a single DVI-D video source

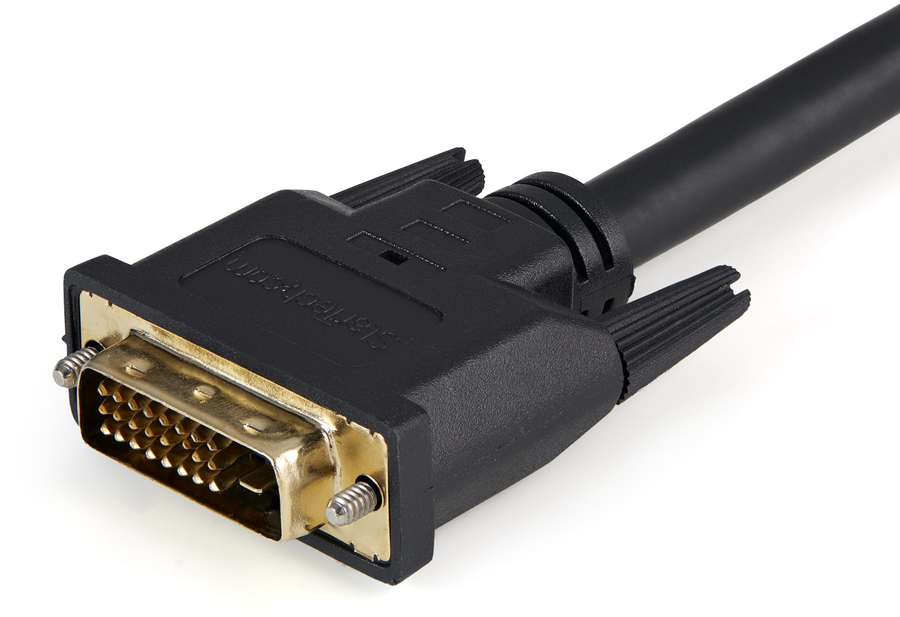

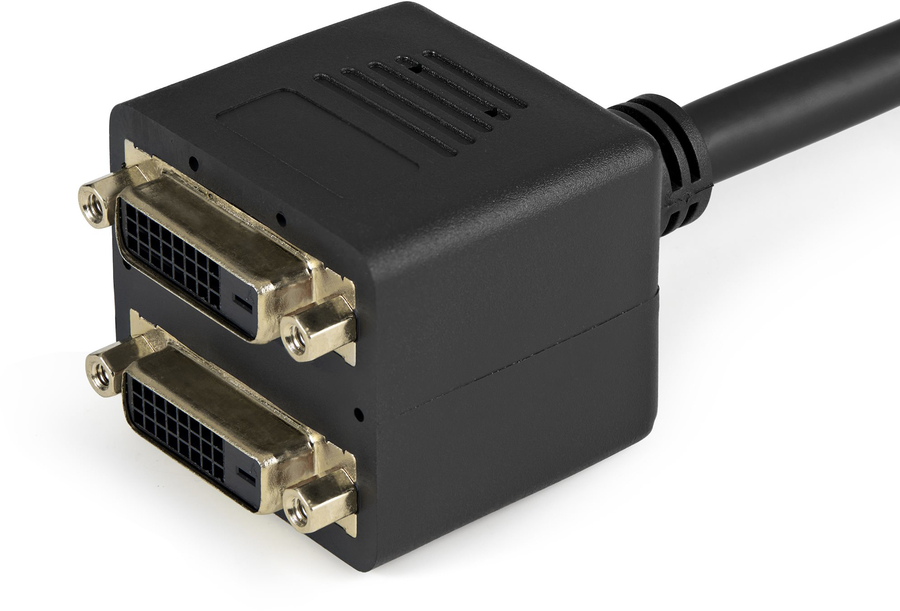

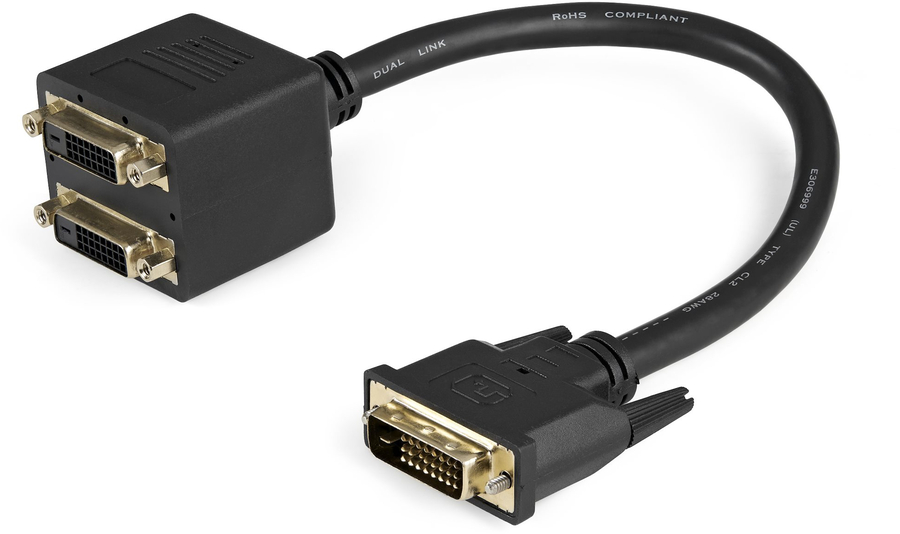

The DVISPL1DD 1ft DVI-D Splitter Cable lets you connect two DVI-D displays, or projectors to a single DVI-D digital video output port on your computer.
Backed by StarTech.com’s lifetime warranty, the DVISPL1DD is a reliable and cost-effective solution for dual DVI monitor configurations.
The StarTech.com Advantage
- Ensure a consistent high quality connection
- Remove strain from the DVI-D connectors, and reduce the potential of blocking other available ports
- Guaranteed reliability |
|
Features |
|
Cable length |
0.3 m |
|
Connector 1 |
DVI-D |
|
Connector 2 |
2 x DVI-D |
|
Connector 1 gender |
Male |
|
Connector 2 gender |
Female |
|
Product colour |
Black |
|
Connector contacts plating |
Gold |
|
Connector 1 pinout |
24+1 |
|
Connector 2 pinout |
24+1 |
|
Connector 1 form factor |
Straight |
|
Connector 2 form factor |
Straight |
|
Supported graphics resolutions |
2560 x 1600 (WQXGA) |
|
Dual Link DVI |
Yes |
|
AWG wire size |
28 |
|
Magnetically shielded |
Yes |
|
Cable jacket material |
Polyvinyl chloride (PVC) |
|
Plug and Play |
Yes |
|
Certificates |
|
Compliance certificates |
CE, RoHS |
|
Certification |
CE, REACH |
|
Weight & dimensions |
|
Weight |
153 g |
|
Packaging data |
|
Quantity per pack |
1 pc(s) |
|
Package width |
125 mm |
|
Package depth |
225 mm |
|
Package height |
39 mm |
|
Package weight |
158 g |
|
Logistics data |
|
Harmonized System (HS) code |
84733080 |
|
Master (outer) case width |
370 mm |
|
Master (outer) case length |
415 mm |
|
Master (outer) case height |
275 mm |
|
Products per master (outer) case |
100 pc(s) |
|
Sustainability |
|
Sustainability compliance |
Yes |
