General Information |
|
Summary |

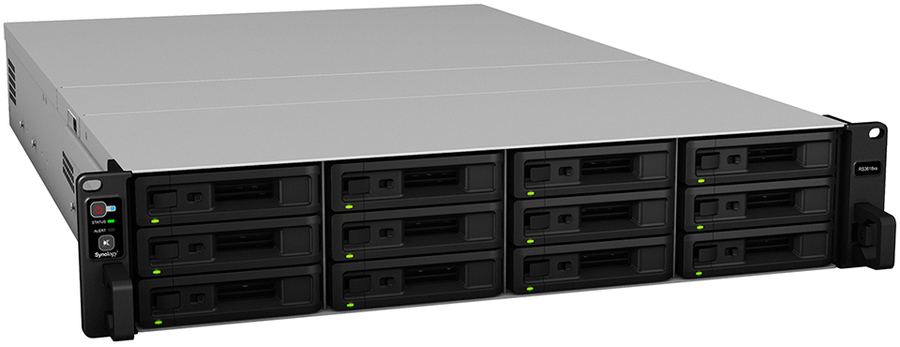

High-speed scalable storage server
Synology RS3618xs is a reliable, superior-performance network-attached storage solution for large-scale enterprises with demanding business applications. It simplifies data management, optimizes virtualization environments, and rapidly expands storage capacity with minimal time investment in setup and maintenance.
Ready for 10GbE and beyond
PCIe 3.0 slots allow for faster networking options as you expand your infrastructure. Together with the built-in quad Gigabit ports, RS3618xs offers comprehensive connectivity options for link aggregation and failover configurations.
Ultimate Backup Solution
RS3618xs integrates various backup applications to safeguard your important data on any device with an intuitive user interface and durable storage technologies.
Active Backup for Server
An agentless backup solution protects data from Windows and Linux servers through SMB and Rsync to minimize deployment and management costs.
Hyper Backup
Comprehensively back up your data to a local shared folder, an external device, another Synology NAS, an rsync server, or a public cloud to ensure data safety.
Desktop Backup
Safeguard your PC with Cloud Station Backup. Effortlessly back up data stored on macOS to Synology NAS with Time Machine.
Active Backup for Office 365/ G Suite
On-premise backup solution with a centralized dashboard. Optimize storage efficiency with single instancing and block-level deduplication technology.
Fully certified storage virtualization solutions
Synology iSCSI storage fully supports most virtualization solutions to enhance work efficiency with easy management interface. VMware vSphere 6 and VAAI integration helps offload storage operations and optimizes computation efficiency. Windows Offloaded Data Transfer (ODX) speeds up data transfer and migration rate. OpenStack Cinder support turns your Synology NAS into a block-based storage component.
Next-generation file system for better data protection
The Btrfs file system introduces advanced storage technologies and optimized snapshots to prevent data corruption and reduce maintenance overhead. While ensuring high-level data integrity, it also offers flexible, efficient data protection and recovery tools. |
|
Storage |
|
Storage drives installed |
No |
|
Number of storage drives supported |
12 |
|
Installed storage drive type |
No |
|
Supported storage drive types |
HDD & SSD |
|
RAID support |
Yes |
|
Supported storage drive interfaces |
Serial ATA, Serial ATA II, Serial ATA III |
|
Storage drive sizes supported |
2.5,3.5" |
|
Maximum supported storage capacity |
144 TB |
|
RAID levels |
0, 1, 5, 6, 10, F1, JBOD |
|
Hot-swap drive bays |
Yes |
|
Supported file systems |
BTRFS, Fat, HFS+, NTFS, ext3, ext4 |
|
Processor |
|
Processor family |
Intel® Xeon® D |
|
Processor manufacturer |
Intel |
|
Processor model |
D-1521 |
|
Processor frequency |
2.4 GHz |
|
Processor boost frequency |
2.7 GHz |
|
Processor cores |
4 |
|
Processor threads |
8 |
|
Processor cache |
6 MB |
|
CPU configuration (max) |
1 |
|
ECC supported by processor |
Yes |
|
PCI Express configurations |
1x16, 1x4, 1x8 |
|
PCI Express slots version |
2.0, 3.0 |
|
Processor code |
SR2DF |
|
Processor codename |
Broadwell |
|
Processor lithography |
14 nm |
|
Processor operating modes |
64-bit |
|
Processor package size |
37.5 x 37.5 mm |
|
Processor series |
Intel Xeon D-1500 |
|
Processor socket |
BGA 1667 |
|
Scalability |
1S |
|
Stepping |
V2 |
|
Thermal Design Power (TDP) |
45 W |
|
Maximum internal memory supported by processor |
128 GB |
|
Conflict-Free processor |
Yes |
|
Memory |
|
Internal memory |
8 GB |
|
Internal memory type |
DDR4 |
|
Memory clock speed |
2133 MHz |
|
Maximum RAM supported |
64 GB |
|
Memory slots |
4 |
|
Network |
|
Ethernet LAN |
Yes |
|
Ethernet LAN data rates |
10,100,1000 Mbit/s |
|
Wi-Fi |
No |
|
iSCSI support |
Yes |
|
Wake-on-LAN ready |
Yes |
|
Supported network protocols |
CIFS, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, VPN (PPTP, OpenVPN) |
|
Link aggregation |
Yes |
|
Ports & interfaces |
|
Ethernet LAN (RJ-45) ports |
4 |
|
USB port |
Yes |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
|
PCI Express x8 (Gen 3.x) slots |
2 |
|
Design |
|
Chassis type |
Rack (2U) |
|
Cooling type |
Active |
|
Product colour |
Black |
|
Number of fans |
4 fan(s) |
|
Fan diameter |
8 cm |
|
LED indicators |
HDD, Power |
|
Performance |
|
Type |
NAS |
|
Device class |
Small & Medium Business |
|
Backup function |
Yes |
|
Backup features |
Cloud, iSCSI LUN |
|
Multilingual support |
Yes |
|
Number of users |
16000 user(s) |
|
Noise level |
50.2 dB |
|
Web-based management |
Yes |
|
Security algorithms |
HTTPS, SSH, SSL/TLS |
|
Access Control List (ACL) |
Yes |
|
Reset button |
Yes |
|
On/off switch |
Yes |
|
Browser supported |
Chrome, Firefox, Internet Explorer 10, Safari |
|
System log |
Yes |
|
Hot spare |
Yes |
|
S.M.A.R.T. support |
Yes |
|
Share folder |
CIFS/AFP/FTP |
|
Software |
|
Operating system installed |
DiskStation Manager |
|
Windows operating systems supported |
Windows 10, Windows 7 |
|
Mac compatibility |
Yes |
|
Mac operating systems supported |
Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra |
|
Server operating systems supported |
Windows Server 2012, Windows Server 2012 R2 |
|
Power |
|
Power supply location |
Built-in |
|
Power supply unit (PSU) capacity |
500 W |
|
Number of power supply units |
1 |
|
Power consumption (typical) |
142.76 W |
|
Power consumption (HDD standby) |
55.05 W |
|
AC input voltage |
100 - 240 V |
|
AC input frequency |
50 - 60 Hz |
|
Weight & dimensions |
|
Width |
430.5 mm |
|
Depth |
692 mm |
|
Height |
88 mm |
|
Weight |
14.5 kg |
|
Packaging content |
|
Cables included |
AC |
|
Quick installation guide |
Yes |
|
Technical details |
|
Sustainability certificates |
RoHS |
|
Processor special features |
|
Embedded options available |
No |
|
Enhanced Intel SpeedStep Technology |
Yes |
|
Execute Disable Bit |
Yes |
|
Idle States |
Yes |
|
Intel 64 |
Yes |
|
Intel Enhanced Halt State |
Yes |
|
Intel Secure Key Technology version |
1.00 |
|
Intel Trusted Execution Technology |
Yes |
|
Intel TSX-NI |
Yes |
|
Intel TSX-NI version |
1.00 |
|
Intel Virtualization Technology (VT-x) |
Yes |
|
Intel Virtualization Technology for Directed I/O (VT-d) |
Yes |
|
Intel VT-x with Extended Page Tables (EPT) |
Yes |
|
Intel® AES New Instructions (Intel® AES-NI) |
Yes |
|
Intel® Hyper Threading Technology (Intel® HT Technology) |
Yes |
|
Intel® OS Guard |
Yes |
|
Intel® Secure Key |
Yes |
|
Intel® Turbo Boost Technology |
2.0 |
|
Maximum number of PCI Express lanes |
32 |
|
Thermal Monitoring Technologies |
Yes |
|
UART |
Yes |
|
Memory channels supported by processor |
Dual |
|
Memory types supported by processor |
DDR3-SDRAM, DDR4-SDRAM |
|
Operational conditions |
|
Operating temperature (T-T) |
5 - 35 °C |
|
Operating relative humidity (H-H) |
5 - 95% |
|
Storage temperature (T-T) |
-20 - 60 °C |
|
Operating altitude |
0 - 5000 m |
|
Certificates |
|
Certification |
EAC, VCCI, CCC, RCM, FCC, CE, BSMI |
|
Logistics data |
|
Harmonized System (HS) code |
84714100 |
|
Other features |
|
Processor ARK ID |
91202 |
