General Information |
|
Summary |

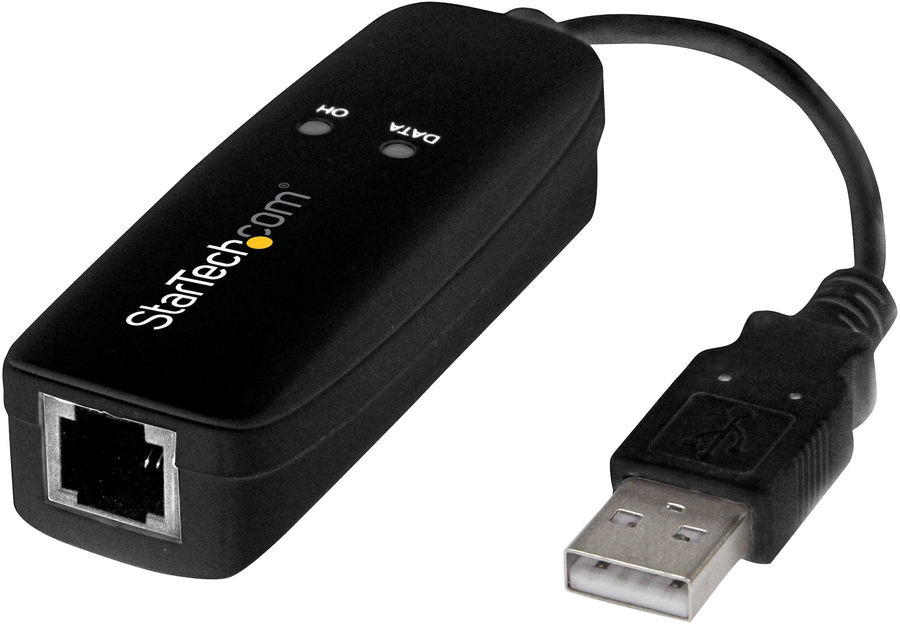

56K USB Dial-up & Fax Modem - V.92 - External - Hardware Based USB Modem - Transfer rates up to 56Kbps (data) / 14.4Kbps (fax) - 56K USB Modem |
|
Modem |
|
Modem speed |
56 Kbit/s |
|
Interface |
USB 2.0 |
|
Chipset |
Conexant - CX93010-21Z |
|
Performance |
|
Supported data transfer rates |
56 Kbps Down, 36.6 Kbps Up, 14.4 Kbps Fax |
|
Upstream data rate |
0.036 Mbit/s |
|
Downstream data rate |
0.056 Mbit/s |
|
Maximum fax transfer rate |
14.4 Kbps |
|
Supported protocols |
Modem
ITU-T V.92 / V.90, V.34, V.32bis, V.32, V.22bis, V.22, V.23, V.21 Bell 212A, Bell 103
Fax
V.17, V.29, V.27 Ter, V.21 channel 2
Data
V.44, V.42bis, MNP 5 |
|
Features |
|
LED indicators |
Data |
|
Ports & interfaces |
|
Modem (RJ-11) ports |
1 |
|
System requirements |
|
Compatible operating systems |
- Windows 7, 8, 8.1, 10
- Windows Server 2008 R2, 2012 R2, 2016, 2019
- Mac OS 10.9 to 10.10
- Linux kernel 3.16 to 4.4 LTS |
|
Certificates |
|
Compliance certificates |
RoHS, CE, Federal Communications Commission (FCC), REACH, Trade Agreements Act (TAA) |
|
Certification |
CE, FCC, RoHS, REACH, TAA |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 60 °C |
|
Operating relative humidity (H-H) |
10 - 90% |
|
Storage temperature (T-T) |
-10 - 70 °C |
|
Weight & dimensions |
|
Weight |
28 g |
|
Depth |
77 mm |
|
Height |
20 mm |
|
Width |
27 mm |
|
Packaging content |
|
Cables included |
Phone (RJ-11) |
|
Quick start guide |
Yes |
|
Packaging data |
|
Package dimensions (WxDxH) |
136 x 163 x 32 mm |
|
Package weight |
136 g |
|
Package depth |
163 mm |
|
Package height |
32 mm |
|
Package width |
136 mm |
|
Logistics data |
|
Products per master (outer) case |
100 pc(s) |
|
Master (outer) case length |
730 mm |
|
Master (outer) case width |
370 mm |
|
Master (outer) case height |
360 mm |
