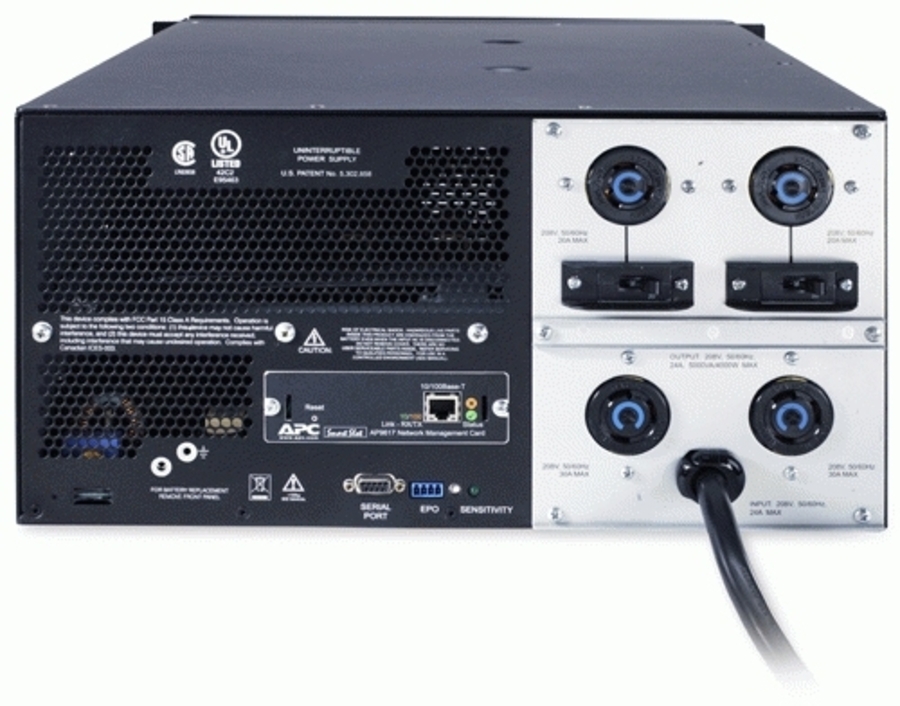

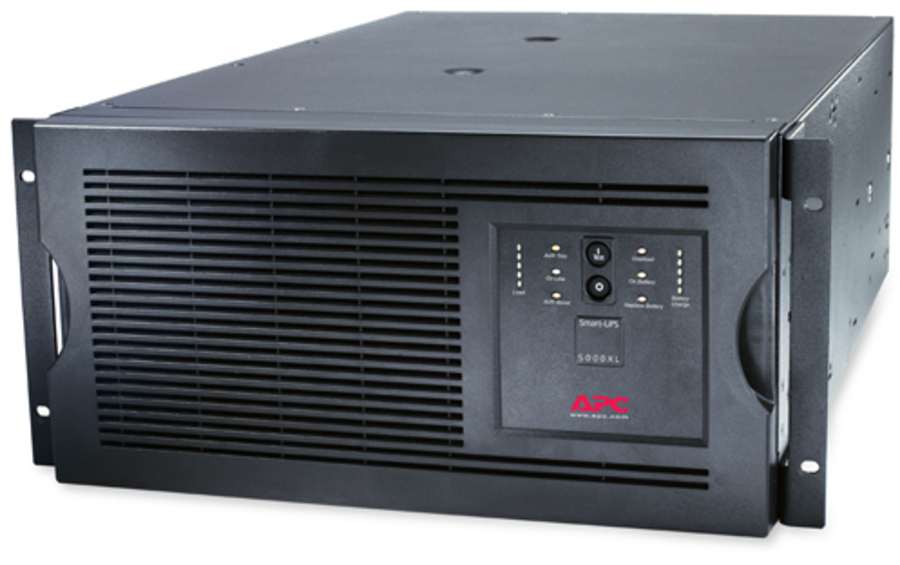

APC Smart-UPS RT 5000VA 208V Rackmount/Tower UPS w/208V to 120V Stepdown Transformer

Home :: Power Equipment ::


Regularly: $6512.00
On Sale: $6251.52    Sale Ends: April 12th, 2024

Manufacturer: APC

Smart-UPS, 4000 Watts / 5000 VA,Input 208V / Output 208V, Interface Port DB-9 RS-232, SmartSlot, Rack Height 5U

Availability
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
Product # Manufacturer # UPC # Status
38536 SUA5000RMT5U 731304255338 Active

Details

General Information
Summary SmartSlot
Customize UPS capabilities with management cards.

Cold-start capable
Provides temporary battery power when the utility power is out.

Serial Connectivity
Use any Home Automation network to monitor and control the S20 through its RS-232 serial port. For information on how to communicate with the S20, see APC's Application Note #102. Crestron and AMX installers should visit their respective websites for information on how to integrate the S20 into those networks.

Resettable circuit breakers
Enables a quick recovery from overload events.

Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced

Disconnected battery notification
Warns when a battery is not available to provide backup power.

Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Adjustable voltage-transfer points
Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.

Adjustable voltage sensitivity
Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.

Audible alarms
Provides notification of changing utility power and UPS conditions.

Serial Connectivity
Provides management of the UPS via a serial port.

Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.

Boost and Trim Automatic Voltage Regulation (AVR)
Gives higher application availability by correcting low and high voltage conditions without using the battery.

Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.

Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment. UL, FCC, CE, C-Tick approvals.

Rack/Tower convertible
Protects the initial investment in the UPS when migrating from tower to rack-mount environment.

Network manageable
Provides remote management of the UPS over the network.

Adjustable voltage sensitivity
Provides the ability to adapt the Power Conditioner for optimal performance in specific power environments or generator applications.

LED status indicators
Quickly understand unit and power status with visual indicators.
Features
Output power capacity 5 kVA
Output power 4000 W
Input frequency 50/60 Hz
Emergency Power Off (EPO) Yes
Noise level 53 dB
Audible alarm(s) Yes
Battery
Battery technology Sealed Lead Acid (VRLA)
Typical backup time at full load 9.4 min
Typical backup time at half load 26.7 min
Battery recharge time 3 h
Hot-swap battery Yes
Design
Product colour Black
Cable length 2.44 m
LED indicators Yes
Certification CSA,FCC Part 15 Class A,UL 1778, RoHS 7b
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -15 - 45 °C
Operating altitude 0 - 3000 m
Non-operating altitude 0 - 15000 m
Weight & dimensions
Weight 97.7 kg
Logistics data
Harmonized System (HS) code 85078000
Other features
Interface DB-9 RS-232, SmartSlot
Output connections 2x NEMA L6-20R 2x NEMA L6-30R
Input connection type NEMA L6-30P
Dimensions (WxDxH) 483 x 660 x 222 mm
Nominal output voltage 208 V
Nominal input voltage 208 V
