General Information |
|
Summary |

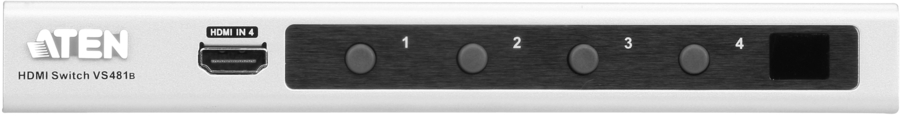

The VS481B 4-Port HDMI Switch allows you to quickly connect 4 HDMI sources to your HDMI display and easily switch between them via front panel pushbuttons, RS-232 or IR remote control. The front panel’s LEDs indicate the source device selected for the display at a glance.
The VS481B supports Ultra HD 4Kx2K, the newest resolution for high definition displays; Auto Switching modes for auto port selection;Instant Switching for a smooth video transition between HDMI ports with increased efficiency; and features a built-in bi-directional RS-232 serial port that allows the switch to be controlled through a high-end controller, PC, and/or home automation/home theater software package. |
|

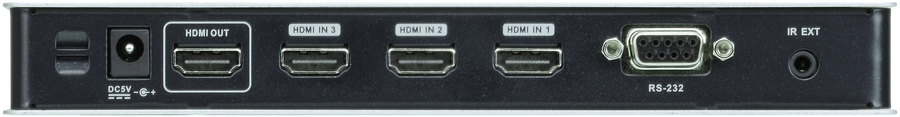

Ports & interfaces |
|
Video port type |
HDMI |
|
HDMI in |
4 |
|
Number of HDMI outputs |
1 |
|
RS-232 ports |
1 |
|
DC-in jack |
Yes |
|
Features |
|
Material |
Metal |
|
Product colour |
Black, White |
|
Supported graphics resolutions |
640 x 480 (VGA), 800 x 600 (SVGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 4096 x 2160 |
|
Supported video modes |
480p, 720p, 1080i, 1080p, 2160p |
|
LED indicators |
Yes |
|
Power |
|
AC adapter output voltage |
5 V |
|
Power consumption (typical) |
5 W |
|
Weight & dimensions |
|
Width |
200 mm |
|
Depth |
82.5 mm |
|
Height |
25 mm |
|
Weight |
470 g |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 50 °C |
|
Storage temperature (T-T) |
-20 - 60 °C |
|
Operating relative humidity (H-H) |
0 - 80% |
|
Logistics data |
|
Harmonized System (HS) code |
85176990 |
|
