Aten 8-Port HDMI HDBaseT Splitter
|
|
Regularly: $2706.00
On Sale: $2624.82
Sale Ends:
December 7th, 2025
Manufacturer:
Aten
8-Port HDMI HDBaseT Splitter (HDBaseT Class A)
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
38961561
|
VS1818T
|
672792005398 |
Active
|
Details
|
General Information |
|
Summary |

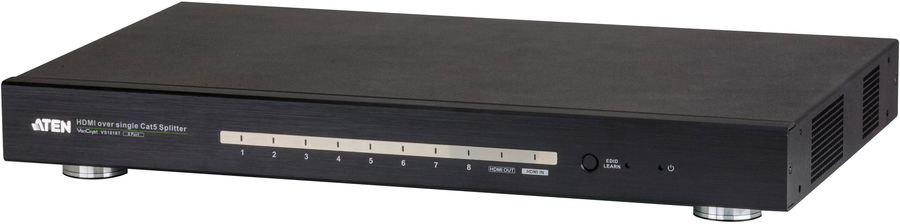

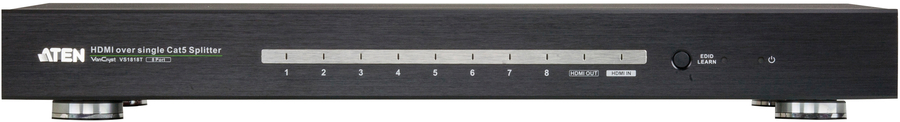

The VS1818T HDMI over single Cat 5 Splitter provides a fast and efficient way of switching high definition video from one input source to 8 displays. Incorporating suggested HDBaseT receivers*, the VS1818T can be a complete solution ideal for any installation that requires HDMI content to be delivered to multiple destinations, located up to 100m away from the source.
* Compatible with ATEN HDBaseT/HDBaseT-Lite Receiver Unit.
The solution implements HDBaseT extension technology to connect the VS1818T to receiver units over one single Cat 6 cable in order to transmit rich HDMI multimedia content in real time. It supports up to 4k2k resolution, and features an EDID selection method to ensure constant and reliable EDID data relay for the HDMI source device to efficiently optimize video resolution.
The VS1818T solution is perfect for a wide range of applications:
• In-store or tradeshow digital signage
• Information broadcasts at public locations (i.e., news, stations, airline and train schedule and arrival/departure details)
• Sporting events
• Theater and lecture overview rooms
• Classroom and company training facilities |
|

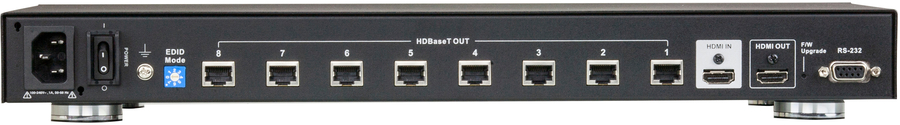

Ports & interfaces |
|
Video ports quantity |
2 |
|
Video port type |
HDMI |
|
Video out |
HDMI |
|
Video in |
HDMI |
|
Ethernet LAN (RJ-45) ports |
8 |
|
Connector(s) |
RS-232 |
|
Features |
|
Maximum resolution |
4096 x 2160 pixels |
|
Product colour |
Black |
|
Housing material |
Metal |
|
Full HD |
Yes |
|
Supported graphics resolutions |
4096 x 2160, 1920 x 1080 (HD 1080) |
|
Power LED |
Yes |
|
Supported video modes |
1080p |
|
Network |
|
Ethernet LAN |
Yes |
|
Cable types supported |
Cat5 |
|
Weight & dimensions |
|
Dimensions (WxDxH) |
261.1 x 432.4 x 44 mm |
|
Weight |
3.58 kg |
|
Packaging content |
|
Cables included |
AC |
|
User guide |
Yes |
|
Packaging content |
Mounting Kit |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 50 °C |
|
Storage temperature (T-T) |
-20 - 60 °C |
|
Operating relative humidity (H-H) |
0 - 80% |
|
Logistics data |
|
Harmonized System (HS) code |
85176990 |
|
