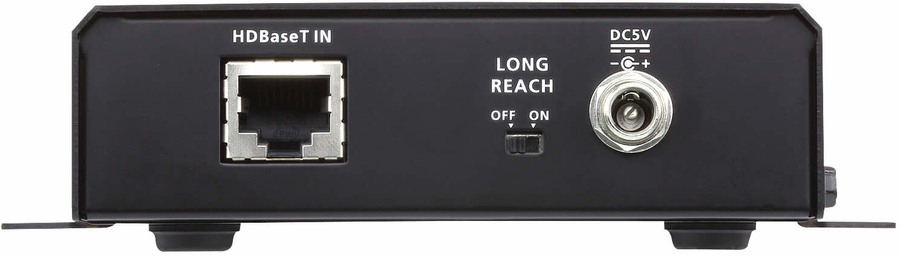

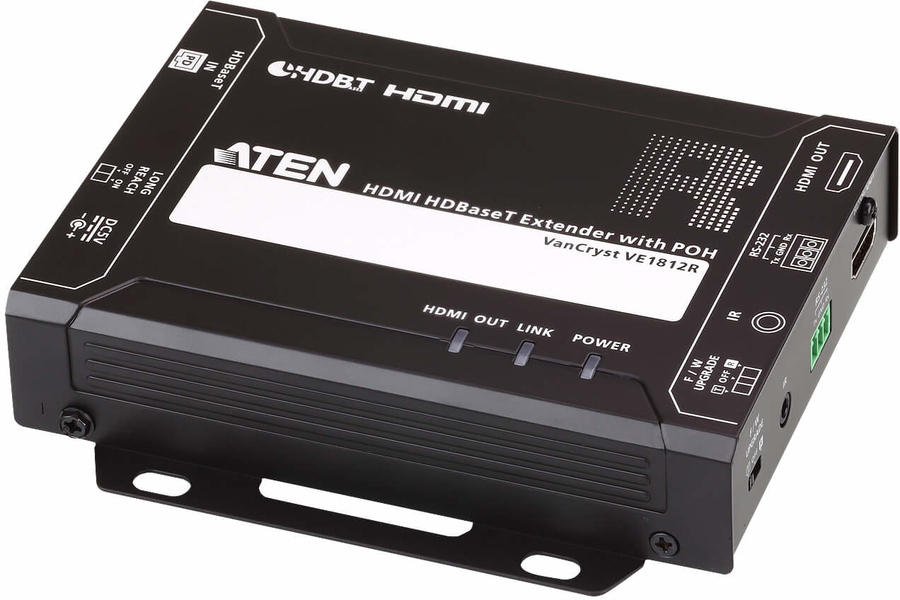

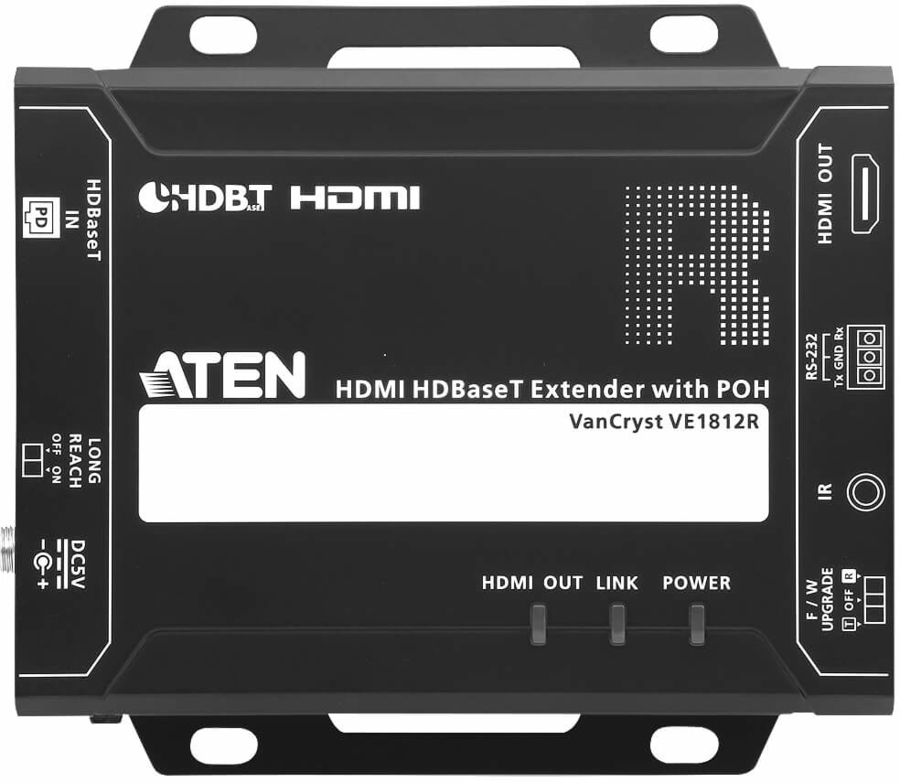

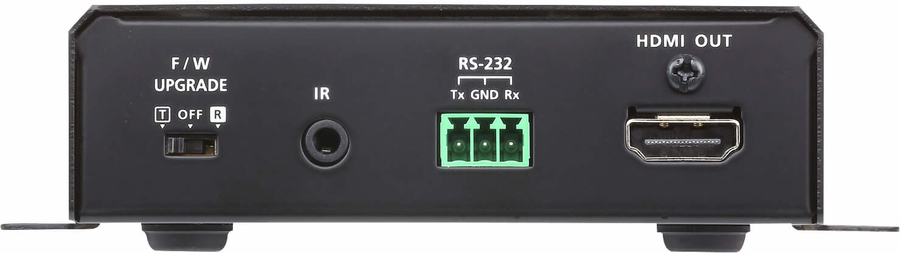

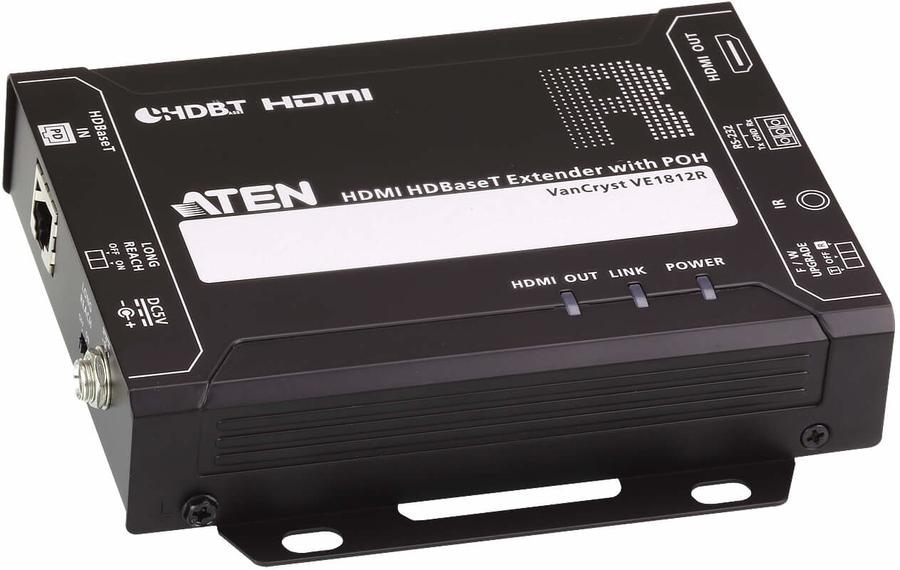

Aten HDMI HDBaseT Receiver with POH

Home :: Audio & Video Products :: Video Products ::


Regularly: $285.00
On Sale: $273.60    Sale Ends: April 12th, 2024

Manufacturer: Aten

HDMI HDBaseT Receiver with POH (4K@100m) (HDBaseT Class A) (PoH PD)

Availability
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
Product # Manufacturer # UPC # Status
38961827 VE1812R 672792007699 Active

Details

General Information
Summary The VE1812R features Power over HDBaseT (POH) which sends power from Tx to Rx over Cat 5e / 6 / 6a cable without any additional power supply. The VE1812R supports RS-232 and IR signaling pass-through, allowing you to control the HDMI source device from the receiver unit (VE1812R) while also accessing the HDMI display device from the transmitter unit (VE1812T). The IR signals can also be extended in both directions.

The VE1812R HDMI HDBaseT Receiver with POH is HDMI (3D, Deep Color, 4kx2k) and HDCP compatible. When transmitting HDMI / 4K with a Cat 6a or ATEN 2L-2910 Cat 6 cable, the maximum distance can reach up to 100 meters. With Long Reach Mode enabled, the VE1812R can extend HDMI signal up to 150m @1080p. The VE1812R is perfect for digital classrooms, video conference rooms, gaming or any installation that requires superior video quality.
Features
Type AV receiver
Maximum resolution 4096 x 2160 pixels
Cable types supported Cat5e, Cat6, Cat6a
Maximum transfer distance 150 m
LED indicators Yes
Supported video modes 1080p
Supported graphics resolutions 3840 x 2160, 4096 x 2160
Bandwidth 340 MHz
HDCP Yes
Material Metal
3D Yes
Consumer Electronics Control (CEC) support Yes
Impedance 100 Ω
Product colour Black
Ports & interfaces
Connectivity technology Wired
RJ-45 input ports 1
HDBaseT port Yes
Number of HDMI outputs 1
RS-232 output ports 1
Video out 1
3.5 mm (1/8-inch) out Yes
Remote (IR) output 1
DC-in jack Yes
Power
Operating voltage (receiver) 5 V
Power consumption (receiver) (max) 6.4 W
External power adapter Yes
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -20 - 60 °C
Operating relative humidity (H-H) 0 - 80%
Weight & dimensions
Receiver dimensions (WxDxH) 123 x 140.4 x 30 mm
Receiver weight 450 g
Packaging content
AC adapter included Yes
Quick start guide Yes
Technical details
Sustainability certificates RoHS
