Aten 4-Port HDBaseT Output Board
|
|
Regularly: $2425.00
On Sale: $2352.25
Sale Ends:
December 7th, 2025
Manufacturer:
Aten
4-Port HDBaseT Output Board
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
38961930
|
VM8514
|
- |
Active
|
Details
|
General Information |
|
Summary |

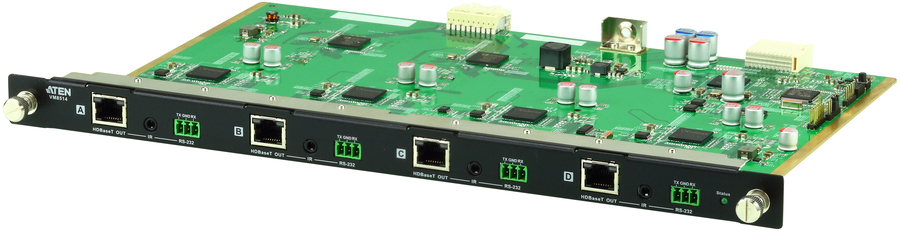

The VM8514 4-Port HDBaseT Output Board offers an easy way route 4 HDBaseT transmitters to 4 HDBaseT receivers, and in combination with the ATEN Modular Matrix Switches to provide the ability of routing up to 32 input and 32 output HDBaseT connections.
When the VM8514 HDBaseT Output Board is used in conjunction with the VE805R HDBaseT receiver it features Seamless Switch™ technology and video wall functionality. ATEN’s Seamless Switch™ technology provides video switching in real-time with a built in scaler that handles different video resolutions across different displays and video wall features that allow you to configure up 32 profiles for custom layouts via the point-n-click web GUI. |
|
Design |
|
Product type |
Input board |
|
Product colour |
Black, Green |
|
Material |
Metal |
|
Ports & interfaces |
|
RJ-45 ports quantity |
4 |
|
Power |
|
Power consumption (typical) |
12.2 W |
|
Weight & dimensions |
|
Width |
238 mm |
|
Depth |
352 mm |
|
Height |
233 mm |
|
Weight |
970 g |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Operating relative humidity (H-H) |
0 - 80% |
|
Storage temperature (T-T) |
-20 - 60 °C |
|
