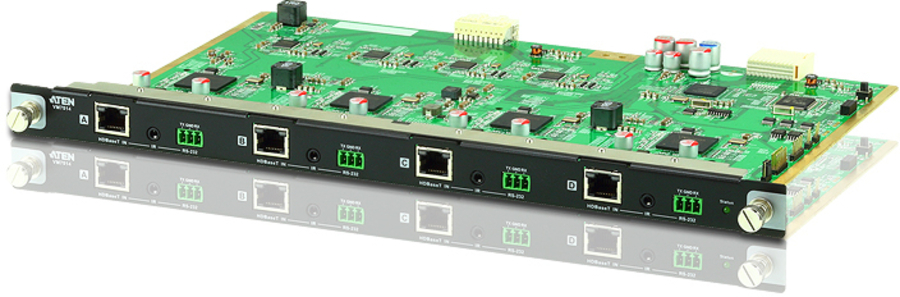

Aten 4-Port HDBaseT Input Board
|
|
Regularly: $2425.00
On Sale: $2352.25
Sale Ends:
December 7th, 2025
Manufacturer:
Aten
4 x RJ-45, 340 MHz, 4096 x 2160, RS-232, IR, 24.5 W, metal, 990 g
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
38961932
|
VM7514
|
672792006234 |
Active
|
Details
|
General Information |
|
Summary |
The VM7514 4-Port HDBaseT Input Board offers an easy way route 4 HDBaseT transmitters connected to HDMI sources to 4 HDBaseT receivers connected to HDMI displays, and in combination with the ATEN Modular Matrix Switch provides the ability route up to 16 input and 16 output HDBaseT connections
- Compatible with the VM1600 and can be mixed with modular I/O boards of any type for optimum flexibility
- Bi-directional RS-232 channel – allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners
- HDBaseT Connectivity – extends 4 HDBaseT connections up to 100 meters via single Cat 5e/6 cable
- HDBaseT Anti-jamming – resists signal interference during video transmission using HDBaseT technology
- Bi-directional IR channel – IR transmission is processed one direction at a time
- Hot-swappable design for easy integration of I/O boards |
|
Ports & interfaces |
|
Audio (L/R) out |
4 |
|
RJ-45 input ports |
4 |
|
RS-232 ports |
4 |
|
Features |
|
Material |
Metal |
|
Product colour |
Black, Green |
|
HDCP |
Yes |
|
Supported graphics resolutions |
4096 x 2160 |
|
Supported video modes |
2160p |
|
Bandwidth |
340 MHz |
|
Maximum resolution |
4096 x 2160 pixels |
|
Cable length |
1000 m |
|
Power |
|
Power consumption (typical) |
24.5 W |
|
Weight & dimensions |
|
Width |
237 mm |
|
Height |
228 mm |
|
Weight |
990 g |
|
Length |
352 mm |
|
Packaging content |
|
Quantity per pack |
1 pc(s) |
|
Packaging content |
1x VM7514 4-Port HDBaseT Input Board, 4x Terminal Block Connectors, 1x IR Transmitter, 1x IR Receiver,
1x User Instructions |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Storage temperature (T-T) |
-20 - 60 °C |
|
