Aten 4-Port VGA Input Board
|
|
Regularly: $1493.00
On Sale: $1448.21
Sale Ends:
December 7th, 2025
Manufacturer:
Aten
4-Port VGA Input Board
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
38961933
|
VM7104
|
- |
Active
|
Details
|
General Information |
|
Summary |

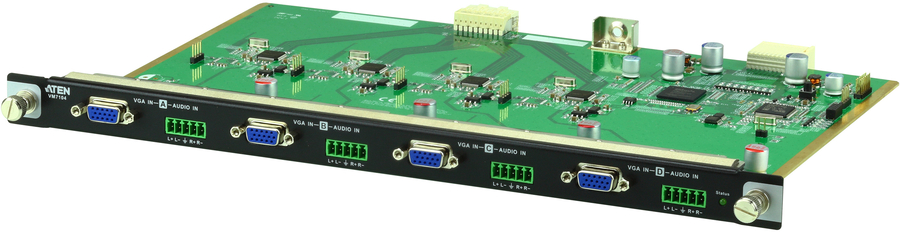

The VM7104 4-Port VGA Input Board offers an easy way to route 4 VGA video and audio sources up to 16 displays, when used in combination with the ATEN Modular Matrix Switch. The VM7104 supports RGBHV / RGBS/ Y CbCr/ YPbPr input signals; stereo audio that can be embedded into HDMI Audio output. The board is built with a hot-swappable design that is compatible with the VM1600, so that the unit doesn’t need to be powered off when the board is changed. |
|
Design |
|
Product type |
Input board |
|
Product colour |
Black, Green |
|
Material |
Metal |
|
Ports & interfaces |
|
VGA (D-Sub) ports quantity |
4 |
|
Power |
|
Power consumption (typical) |
7.1 W |
|
Weight & dimensions |
|
Width |
238 mm |
|
Depth |
352 mm |
|
Height |
23.3 mm |
|
Weight |
560 g |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Operating relative humidity (H-H) |
0 - 80% |
|
Storage temperature (T-T) |
-20 - 60 °C |
|
