Aten HDMI HDBaseT-Lite Extender with POH
|
|
Regularly: $477.00
On Sale: $457.92
Sale Ends:
April 26th, 2024
Manufacturer:
Aten
HDMI HDBaseT-Lite Extender with POH (4K@40m)(HDBaseT Class B)
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
38961936
|
VE802
|
672792006074 |
Active
|
Details
|
General Information |
|
Summary |

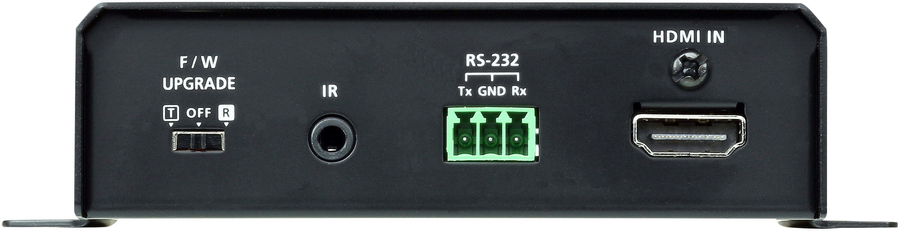

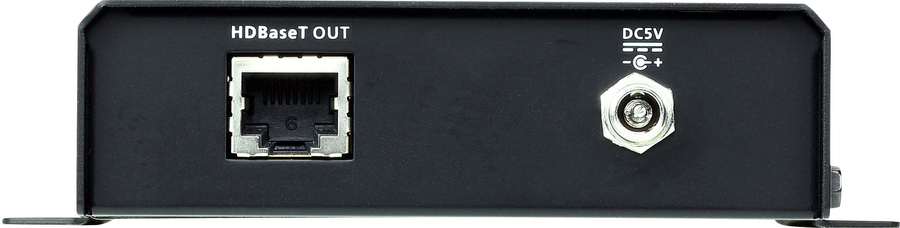

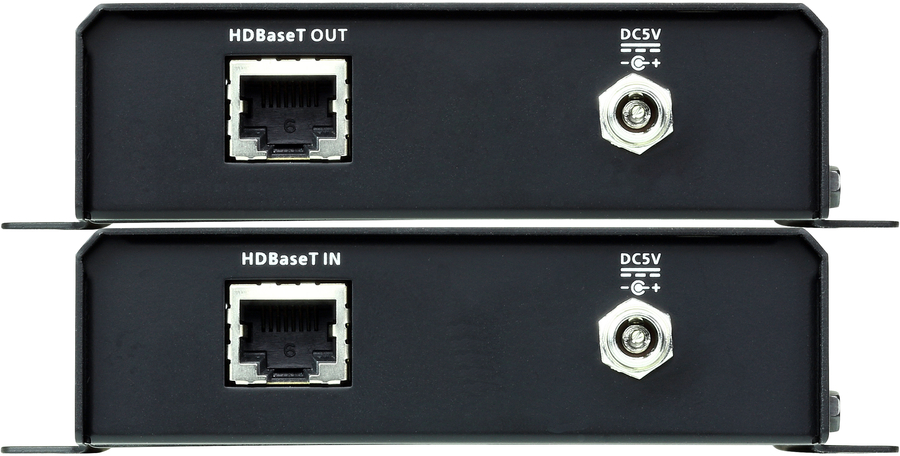

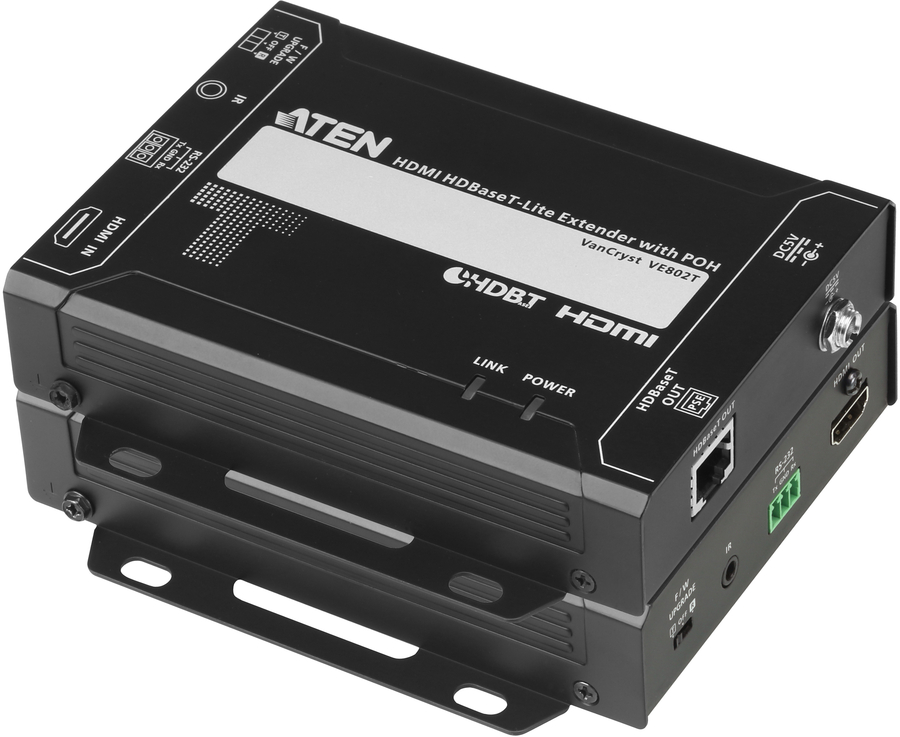

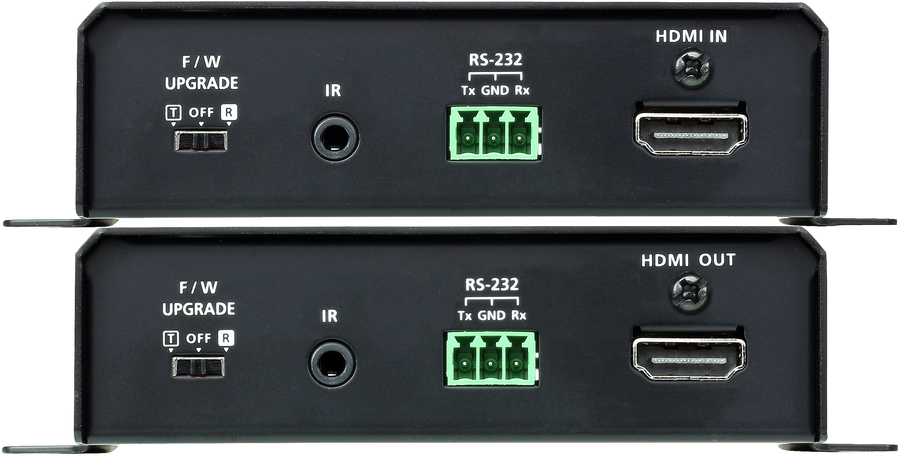

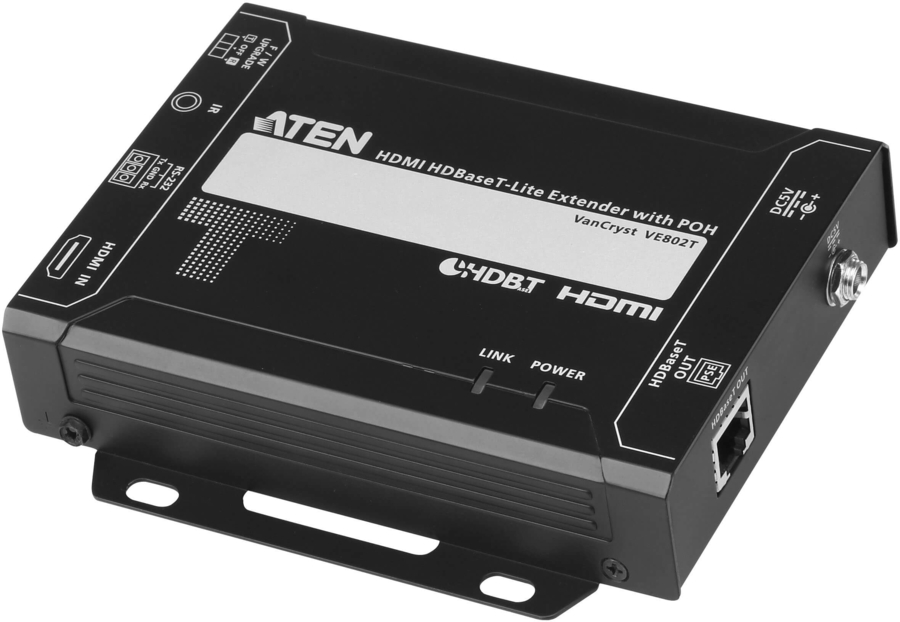

The VE802 HDMI HDBaseT-Lite Extender extends an HDBaseT signal up to 70m from the HDBaseT source using one Cat 5e/6/6a cable. VE802 supports RS-232 and IR signaling passthrough, allowing you to control the HDMI source device from the remote unit (VE802R) while also granting access to the HDMI display device from the local unit (VE802T). IR signals can also be extended in both directions. The VE802 features Power over HDBaseT (POH) which can send power over Cat 5e/6/6a cable without an additional power supply. The VE802 is HDMI (3D, Deep Color,4k) and HDCP compatible. The VE802 is perfect for a digital entertainment center or any installation that requires superior video quality. |
|
Features |
|
Type |
AV transmitter & receiver |
|
Maximum resolution |
4096 x 2160 pixels |
|
Cable types supported |
Cat6a, Cat6e |
|
Maximum transfer distance |
1.8 m |
|
Maximum refresh rate |
340 Hz |
|
Bandwidth |
10 Gbit/s |
|
HDCP |
Yes |
|
Material |
Metal |
|
3D |
Yes |
|
Plug and Play |
Yes |
|
Impedance |
100 Ω |
|
Product colour |
Black |
|
Ports & interfaces |
|
Connectivity technology |
Wired |
|
Number of HDMI outputs |
1 |
|
RS-232 input ports |
1 |
|
DC-in jack |
Yes |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 50 °C |
|
Storage temperature (T-T) |
-20 - 60 °C |
|
Operating relative humidity (H-H) |
0 - 80% |
|
Weight & dimensions |
|
Dimensions (WxDxH) |
144 x 123 x 30 mm |
|
Weight |
440 g |
|
Technical details |
|
Colour |
Yes |
|
