General Information |
|
Summary |

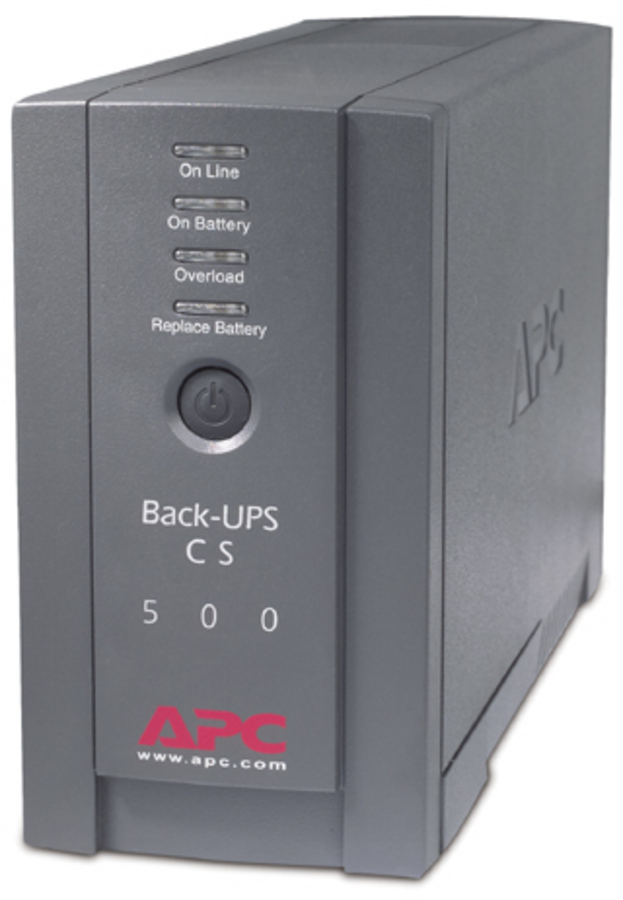

Back-UPS CS 500. Description: Back-UPS CS, 500VA/300W, Input 120V/Output 120V, Interface Port DB-9 RS-232, USB. Includes: CD with software, Cord Management Straps, USB cable, User Manual Topology: Standby. CANADA |
|
Features |
|
UPS topology |
Line-Interactive |
|
Output power capacity |
0.5 kVA |
|
Output power |
300 W |
|
Waveform |
Sine |
|
Input operation voltage (min) |
98 V |
|
Input operation voltage (max) |
140 V |
|
Input frequency |
50/60 Hz |
|
Output frequency |
50/60 Hz |
|
Surge energy rating |
480 J |
|
Audible alarm(s) |
Yes |
|
Audible alarm modes |
Alarm when on battery, Low battery alarm, Overload alarm |
|
Ports & interfaces |
|
USB port |
Yes |
|
Battery |
|
Battery technology |
Lead-Acid |
|
Typical backup time at full load |
2.4 min |
|
Typical backup time at half load |
13.9 min |
|
Battery recharge time |
8 h |
|
Hot-swap battery |
Yes |
|
Design |
|
Form factor |
Tower |
|
Product colour |
Black |
|
Cable length |
1.8 m |
|
LED indicators |
Yes |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Storage temperature (T-T) |
-15 - 45 °C |
|
Operating relative humidity (H-H) |
5 - 95% |
|
Storage relative humidity (H-H) |
5 - 95% |
|
Operating altitude |
0 - 3000 m |
|
Certificates |
|
Certification |
FCC Part 15 Class B/Industry Canada/UL 1778/cUL |
|
Safety regulation & standards |
|
Safety |
UL,/FCC/CE/C-Tick |
|
Weight & dimensions |
|
Width |
91 mm |
|
Depth |
284 mm |
|
Height |
165 mm |
|
Weight |
6.27 kg |
|
Packaging data |
|
Package weight |
6.95 kg |
|
Logistics data |
|
Products per pallet |
80 pc(s) |
|
Other features |
|
Output connections |
6 x NEMA 5-15R |
|
Input connection type |
NEMA 5-15P |
|
Dimensions (WxDxH) |
91 x 284 x 165 mm |
|
Nominal output voltage |
120 V |
|
Nominal input voltage |
120 V |
|
Operating temperature (T-T) |
0 - 40 °F |
|
Package dimensions (WxDxH) |
175 x 357 x 263 mm |
|
Non-operating relative humidity (non-condensing) |
0 - 95% |
|
Weight (imperial) |
6.26 kg (13.8 lbs) |
