Aten HDMI EDID Emulator
|
Regularly: $90.00
On Sale: $85.95
Sale Ends:
September 28th, 2024
Manufacturer:
Aten
4K HDMI EDID Emulator with Programmer
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
Product # |
Manufacturer # |
UPC # |
Status |
46841401
|
VC080
|
- |
Active
|
Details
General Information |
Summary |

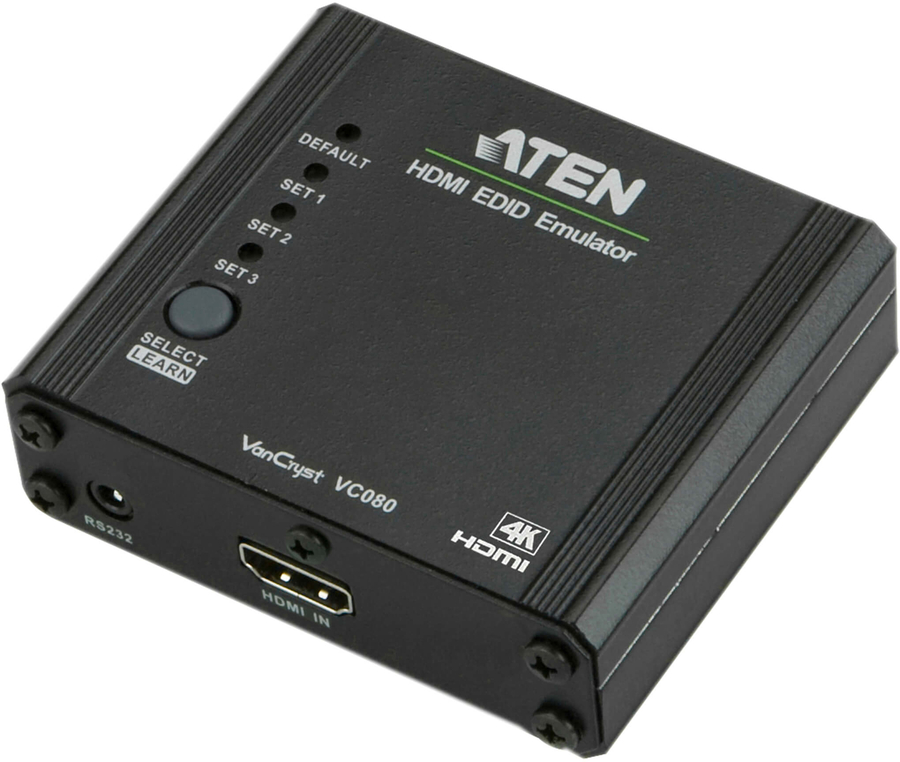

The ATEN VC080 is a HDMI EDID Emulator, which is designed to emulate and store the EDID of a video display, providing constant and reliable EDID data for the a HDMI source device to efficiently optimize video resolution.
The ATEN HDMI EDID Emulator is a convenient tool that ensures smooth viewing experience for any video installation. The EDID Emulator provides three flexible methods for selecting and switching between EDID Modes: Default Mode, Programming Mode, and Learning Mode. It comes with an easy-to-use EDID Wizard that allows users to quickly view, store and manage EDID settings. |
Features |
Maximum video resolution |
1920 x 1080 pixels |
Video resolutions |
640 x 480,1280 x 720,1920 x 1080,1920 x 1200 |
Bandwidth |
2.25 Gbit/s |
Deep colour support |
Yes |
Consumer Electronics Control (CEC) support |
Yes |
Dolby technologies |
DTS-HD Master Audio, Dolby TrueHD |
Design |
Product colour |
Black |
Housing material |
Metal |
LED indicators |
Yes |
Ports & interfaces |
Video port type |
HDMI |
Number of video inputs |
1 |
Number of video outputs |
1 |
HDCP |
Yes |
DC-in jack |
Yes |
Power |
AC adapter output voltage |
5 V |
Power consumption (max) |
0.15 W |
Logistics data |
Quantity per pack |
1 pc(s) |
Packaging content |
AC adapter included |
Yes |
Quick start guide |
Yes |
Weight & dimensions |
Width |
71.6 mm |
Depth |
79 mm |
Height |
24.5 mm |
Weight |
150 g |
|
