Aten DVI EDID Emulator
|
|
Price: $79.00
Manufacturer:
Aten
DVI EDID Emulator with Programmer
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
46842893
|
VC060
|
672792004186 |
Active
|
Details
|
General Information |
|
Summary |

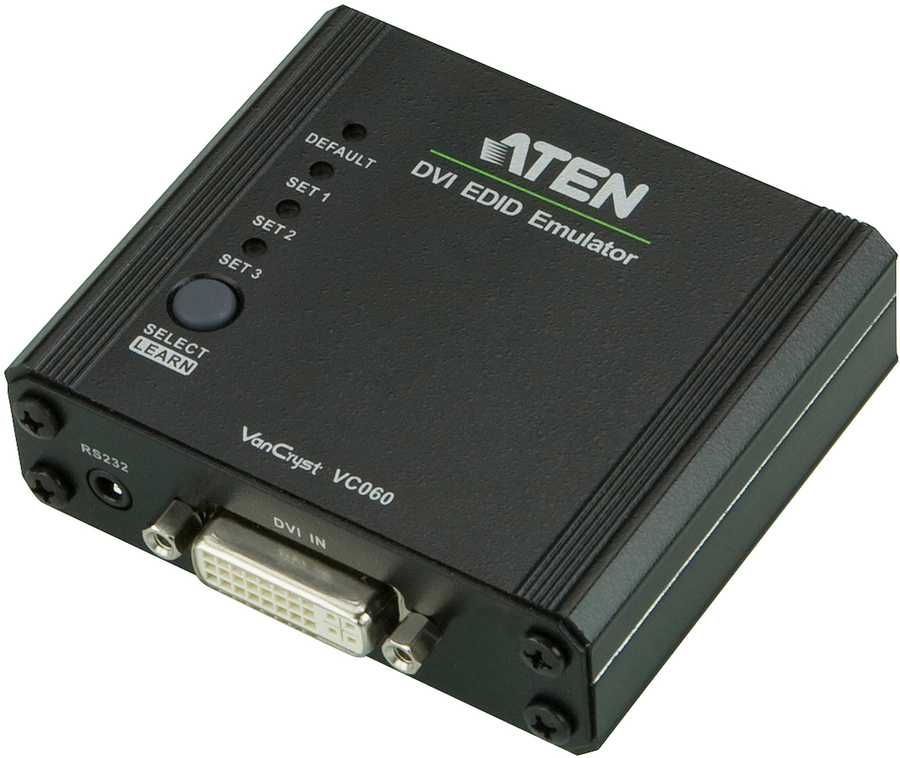

The ATEN VC060 is a DVI EDID Emulator, which is designed to emulate and store the EDID of a video display, providing constant and reliable EDID data for the a DVI source device to efficiently optimize video resolution.
The ATEN DVI EDID Emulator is a convenient tool that ensures smooth viewing experience for any video installation. The EDID Emulator provides three flexible methods for selecting and switching between EDID Modes: Default Mode, Programming Mode, and Learning Mode. It comes with an easy-to-use EDID Wizard that allows users to quickly view, store and manage EDID settings. |
|
Features |
|
Product colour |
Black |
|
Compatible products |
RoHS |
|
Video |
|
Maximum video resolution |
1920 x 1200 pixels |
|
Supported video modes |
1080p |
|
Ports & interfaces |
|
Host interface |
DVI-I |
|
Output interface |
DVI-I |
|
Power |
|
External power adapter |
Yes |
|
Input voltage |
5 V |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 50 °C |
|
Storage temperature (T-T) |
-20 - 60 °C |
|
Operating relative humidity (H-H) |
0 - 80% |
|
Weight & dimensions |
|
Width |
78.6 mm |
|
Depth |
79 mm |
|
Height |
24.5 mm |
|
Weight |
150 g |
|
Packaging data |
|
Cables included |
RS-232, USB |
|
Manual |
Yes |
|
