Aten HDMI USB Extender System
|
|
Regularly: $169.00
On Sale: $162.24
Sale Ends:
April 26th, 2024
Manufacturer:
Aten
HDMI/USB Cat 5 Extender (1080p@40m)
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
46842977
|
VE803
|
672792004285 |
Active
|
Details
|
General Information |
|
Summary |

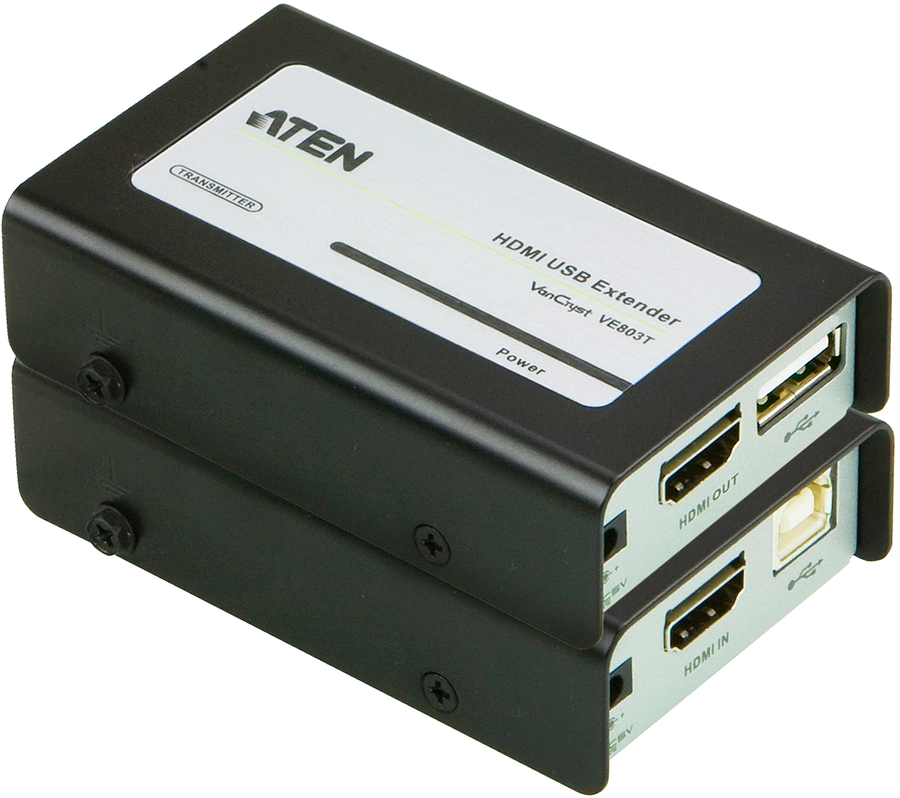

The VE803 HDMI USB Extender extends an HDMI signal up to 60 meters from the HDMI source using two Cat 5e cables. It is capable of sending 1080i signals up to 60 meters and 1080p signals up to 40 meters.

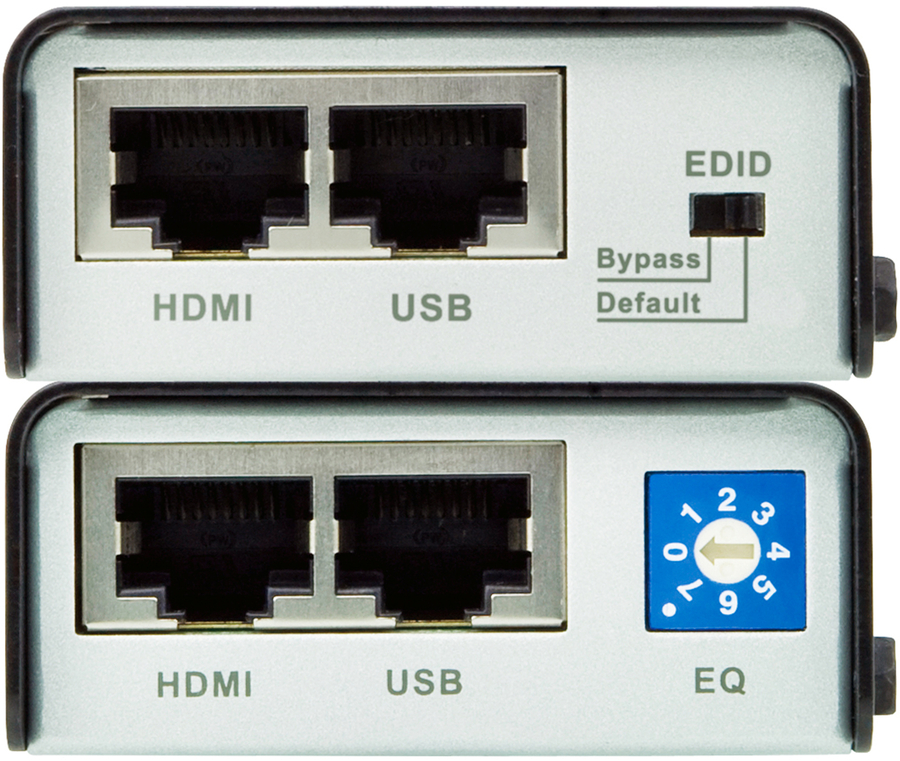

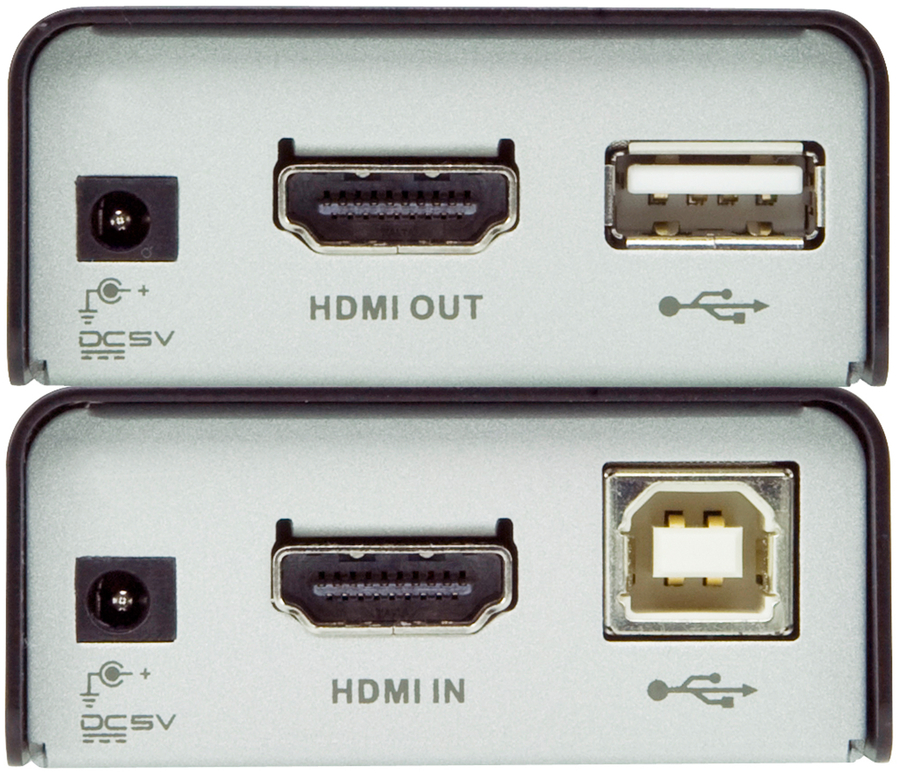

The VE803 is equipped with USB connectors which allow you to extend any USB device between the units. The USB feature also provides support for touch panel control, allowing you to control the local HDMI source device from the remote display, or control the remote display through the local unit. |
|
Features |
|
Type |
AV transmitter & receiver |
|
Cable types supported |
Cat5e |
|
Maximum transfer distance |
60 m |
|
LED indicators |
Yes |
|
Supported video modes |
1080i, 1080p |
|
Product colour |
Black, Grey |
|
Ports & interfaces |
|
RJ-45 input ports |
2 |
|
RJ-45 output ports |
2 |
|
HDMI in |
1 |
|
Number of HDMI outputs |
1 |
|
USB ports quantity |
2 |
|
DC-in jack |
Yes |
|
Power |
|
Operating voltage |
5 V |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 50 °C |
|
Storage temperature (T-T) |
-20 - 60 °C |
|
Operating relative humidity (H-H) |
0 - 80% |
|
Weight & dimensions |
|
Dimensions (WxDxH) |
31.6 x 71.6 x 23 mm |
|
Weight |
160 g |
|
Technical details |
|
Connector(s) |
HDMI Type A, USB Type B, USB Type A, RJ-45 |
|
Sustainability certificates |
RoHS |
|
