General Information |
|
Summary |

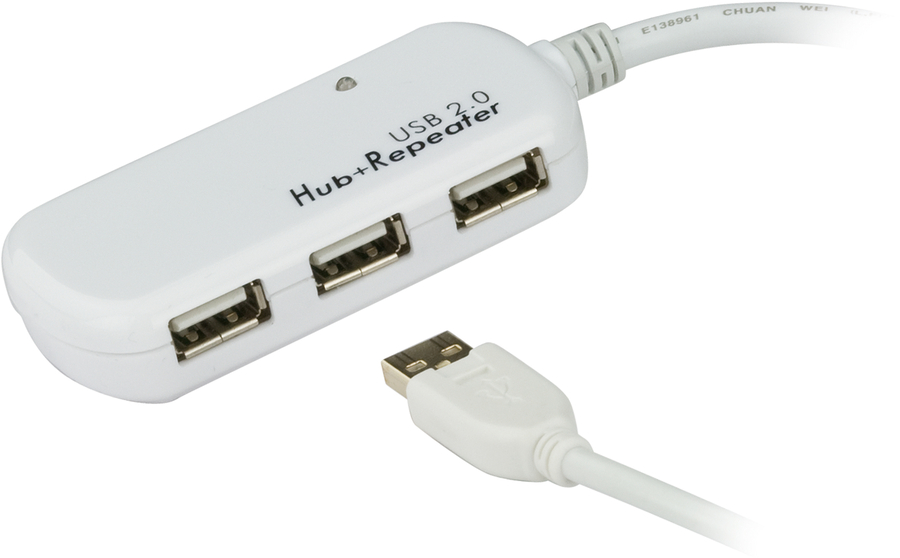

The UE2120H allows users to extend the distance between a computer and USB device(s) up to 12 meters via the active extender hub. USB signals transmitted through these cables maintain optimal signal integrity and meet USB 2.0 standards. Up to 4 extender cables (UE2120) and 1 Extender Hub (UE2120H) can be chained together, so that cable distance is increased by up to 60 meters. |
|
Ports & interfaces |
|
Ports quantity |
4 |
|
Host interface |
USB 2.0 |
|
Hub interfaces |
USB 2.0 |
|
USB 2.0 ports quantity |
4 |
|
DC-in jack |
No |
|
Features |
|
Data transfer rate |
480 Mbit/s |
|
Product colour |
White |
|
Housing material |
Plastic |
|
LED indicators |
Yes |
|
Cable length |
12 m |
|
Plug and Play |
Yes |
|
Certification |
RoHS |
|
Power |
|
Input voltage |
5 V |
|
Weight & dimensions |
|
Width |
41 mm |
|
Depth |
82 mm |
|
Height |
17 mm |
|
Weight |
484 g |
|
Packaging data |
|
Package width |
56 mm |
|
Package depth |
186 mm |
|
Package height |
157 mm |
|
Package weight |
592 g |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Storage temperature (T-T) |
-20 - 60 °C |
|
Operating relative humidity (H-H) |
0 - 80% |
|
Logistics data |
|
Master (outer) case net weight |
9.68 kg |
|
Master (outer) case width |
305 mm |
|
Master (outer) case length |
390 mm |
|
Master (outer) case height |
335 mm |
|
Master (outer) case gross weight |
11.8 kg |
|
Products per master (outer) case |
20 pc(s) |
|
Harmonized System (HS) code |
84719000 |
