General Information |
|
Summary |

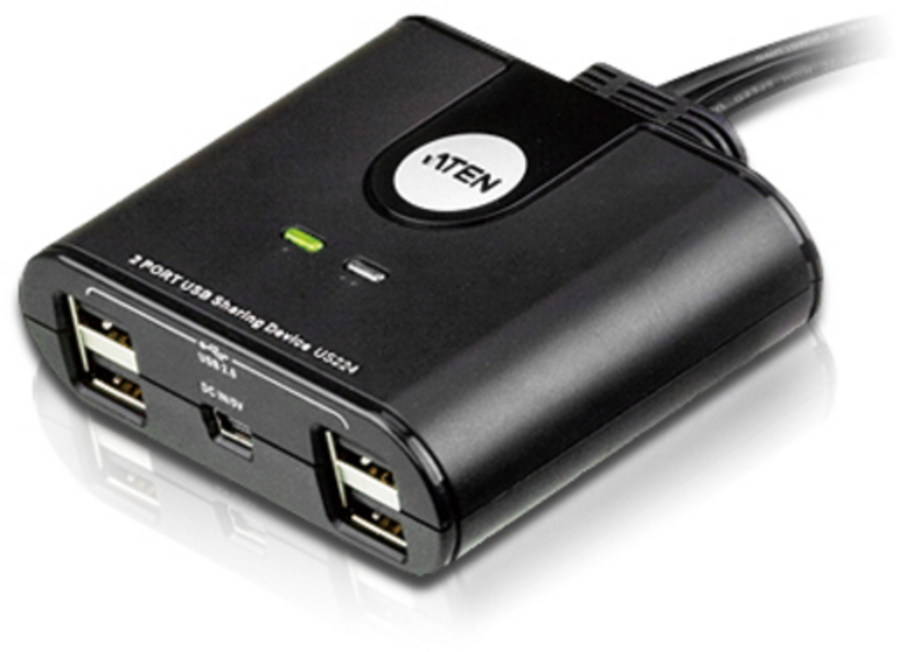

The US224 is a 2-port USB peripheral sharing device that enables 2 computers to share the use of 4 USB devices – a keyboard, mouse and up to two peripheral devices. It eliminates the added expense of having a separate USB keyboard, mouse and peripheral device(s) for each computer. The US224 all-in-one design allows for a neat and tidy installation – no need to connect 2 separate USB cables to the computer, thus eliminating cable clutter.
1x US224 2 x 4 USB 2.0 Peripheral Sharing Switch |
|
Ports & interfaces |
|
Number of computers controlled |
2 |
|
Keyboard port type |
USB |
|
Mouse port type |
USB |
|
USB hub |
Yes |
|
USB 2.0 Type-A hub ports quantity |
4 |
|
USB connector type |
USB Type-A |
|
Performance |
|
HD type |
Not supported |
|
Design |
|
Rack mounting |
No |
|
Product colour |
Black |
|
Housing material |
Plastic |
|
Cable length |
1.8 m |
|
Display |
|
Built-in display |
No |
|
Power |
|
USB powered |
Yes |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Storage temperature (T-T) |
-20 - 60 °C |
|
Operating relative humidity (H-H) |
0 - 80% |
|
Weight & dimensions |
|
Weight |
142 g |
|
Packaging data |
|
Package width |
55 mm |
|
Package depth |
155 mm |
|
Package height |
223 mm |
|
Package weight |
221 g |
|
Logistics data |
|
Master (outer) case net weight |
2.84 kg |
|
Harmonized System (HS) code |
85176200 |
|
Master (outer) case width |
328 mm |
|
Master (outer) case length |
389 mm |
|
Master (outer) case height |
330 mm |
|
Master (outer) case gross weight |
4.89 kg |
|
Products per master (outer) case |
20 pc(s) |
