General Information |
|
Summary |
Storage capacity expansion

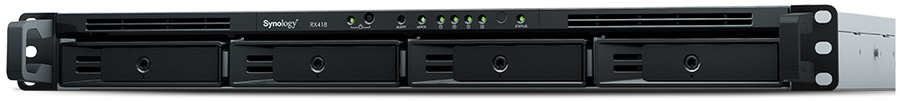

When the storage capacity on Synology 1U RackStation reaches its limit, Synology expansion unit RX418 provides easy capacity expansion by adding 4 3.5"/2.5" SATA drives to the system. Synology RX418 can also be used as a dedicated local backup destination of Synology 1U RackStation for comprehensive data protection.
Reliable plug-and-play design
Simply connect Synology RX418 to corresponding Synology RackStation and it is ready to use. Drives in the connected Synology RX418 operate as though they were internal to the connected Synology NAS and can be managed directly by Synology DiskStation Manager (DSM), with no additional software installation required.
Green and easy to manage
Award-winning Synology DSM provides an intuitive user interface for easy system management. Drive hibernation can be configured in DSM to take effect automatically when the system has been inactive for a period of time. This not only saves energy but also extends the lifespan of the installed drives. |
|
Storage |
|
Storage drives installed |
No |
|
Installed storage drive type |
No |
|
Number of storage drives installed |
0 |
|
Total installed storage capacity |
0 TB |
|
Supported storage drive types |
HDD & SSD |
|
Number of storage drives supported |
4 |
|
Maximum supported storage capacity |
56 TB |
|
Supported storage drive interfaces |
Serial ATA, Serial ATA II, Serial ATA III |
|
Hot-swap drive bays |
Yes |
|
Ports & interfaces |
|
USB connectivity |
No |
|
eSATA ports quantity |
1 |
|
Design |
|
Chassis type |
Rack (1U) |
|
Product colour |
Black, Grey |
|
Number of fans |
3 fan(s) |
|
Noise level |
25.1 dB |
|
Compatible products |
Synology RS1219+, RS818(RP)+, RS815(RP)+, RS816, RS815 |
|
Certification |
FCC A, CE A, BSMI A, EAC, VCCI, RCM, KC |
|
Power |
|
Power supply unit (PSU) capacity |
100 W |
|
Number of power supply units |
1 |
|
Power consumption (typical) |
23.26 W |
|
AC input voltage |
100-240 V |
|
AC input frequency |
50 - 60 Hz |
|
Weight & dimensions |
|
Width |
480 mm |
|
Depth |
325 mm |
|
Height |
44 mm |
|
Weight |
4.28 kg |
|
Packaging content |
|
Cables included |
AC, eSATA |
|
Operational conditions |
|
Operating temperature (T-T) |
5 - 35 °C |
|
Operating relative humidity (H-H) |
5 - 95% |
|
Storage temperature (T-T) |
-20 - 60 °C |
|
Other features |
|
Compliance certificates |
RoHS |
|
Logistics data |
|
Harmonized System (HS) code |
84717020 |
