General Information |
|
Summary |

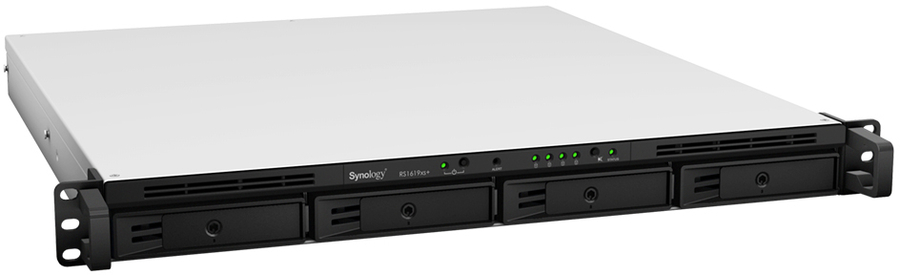

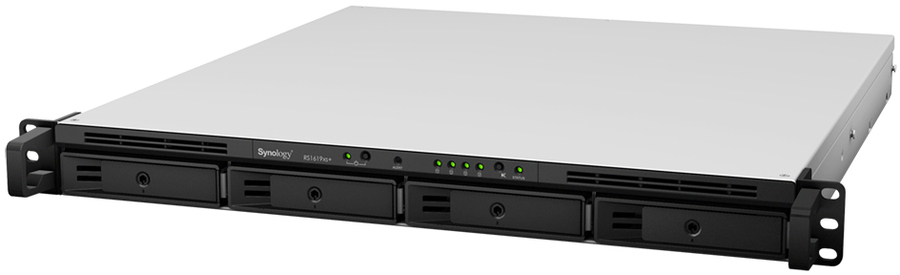

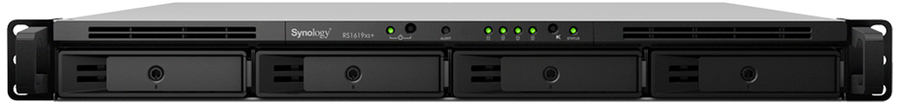

Synology RackStation RS1619xs+ is a high-performance 1U rackmount NAS with comprehensive storage, data backup, and collaboration applications, suitable for small- to medium-sized businesses. RS1619xs+ simplifies data management, optimizes virtualization environments, and rapidly expands storage capacity with minimal time investment in setup and maintenance. Synology RS1619xs+ is backed by Synology’s 5-year limited warranty.
Synology RS1619xs+ is a 1U 4-bay rackmount network attached storage solution equipped with a quad-core processor, 8 GB DDR4 memory (expandable up to 64 GB), and four Gigabit LAN ports. With an optional 10GbE network adapter card installed, RS1619xs+ delivers sequential reading throughput over 1,523 MB/s and 162,097 iSCSI random read IOPS under a RAID 5 configuration.
RS1619xs+ comes with two onboard M.2 SSD slots, allowing fast system cache creation with M.2 2280 NVMe/SATA SSDs without occupying internal 3.5" drive bays. RS1619xs+ also provides great flexibility to easily scale up to 16 drives when connected to one Synology RX1217/RX1217RP expansion unit. Storage capacity can be expanded according to your business needs with minimal effort. |
|
Storage |
|
Storage drives installed |
No |
|
Total installed storage capacity |
0 TB |
|
Number of storage drives installed |
0 |
|
Number of storage drives supported |
4 |
|
Installed storage drive type |
No |
|
Supported storage drive types |
HDD & SSD |
|
Storage drive capacity |
0 GB |
|
Storage drive interface |
Serial ATA, Serial ATA II, Serial ATA III |
|
RAID support |
Yes |
|
Storage drive sizes supported |
2.5,3.5" |
|
Number of M.2 (M & B) slots |
2 |
|
RAID levels |
0, 1, 5, 6, 10, JBOD |
|
Hot-swap drive bays |
Yes |
|
Supported file systems |
BTRFS, Fat, HFS+, NTFS, ext3, ext4 |
|
Processor |
|
Processor family |
Intel® Xeon® D |
|
Processor manufacturer |
Intel |
|
Processor model |
D-1527 |
|
Processor frequency |
2.2 GHz |
|
Processor boost frequency |
2.7 GHz |
|
Processor cores |
4 |
|
Processor threads |
8 |
|
Processor cache |
6 MB |
|
CPU configuration (max) |
1 |
|
ECC supported by processor |
Yes |
|
PCI Express configurations |
1x16, 1x4, 1x8 |
|
PCI Express slots version |
2.0, 3.0 |
|
Processor cache type |
L3 |
|
Processor code |
SR2DK |
|
Processor codename |
Broadwell |
|
Processor lithography |
14 nm |
|
Processor operating modes |
64-bit |
|
Processor package size |
37.5 x 37.5 mm |
|
Processor series |
Intel Xeon D-1500 |
|
Processor socket |
BGA 1667 |
|
Scalability |
1S |
|
Stepping |
V2 |
|
Thermal Design Power (TDP) |
35 W |
|
On-board graphics card model |
Not available |
|
Maximum internal memory supported by processor |
128 GB |
|
Conflict-Free processor |
Yes |
|
Memory |
|
Internal memory |
8 GB |
|
Internal memory type |
DDR4 |
|
Maximum RAM supported |
64 GB |
|
Memory slots |
4 |
|
Network |
|
Ethernet LAN |
Yes |
|
Ethernet LAN data rates |
10,100,1000 Mbit/s |
|
Wi-Fi |
No |
|
iSCSI support |
Yes |
|
Wake-on-LAN ready |
Yes |
|
Supported network protocols |
CIFS, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, VPN (PPTP, OpenVPN, L2TP) |
|
Link aggregation |
Yes |
|
Ports & interfaces |
|

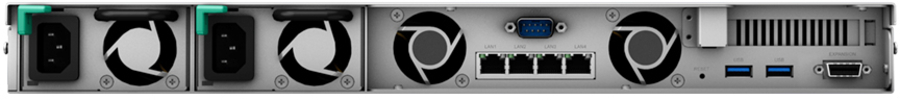

Ethernet LAN (RJ-45) ports |
4 |
|
USB port |
Yes |
|
USB 2.0 ports quantity |
0 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
|
Fiber ports quantity |
0 |
|
Expansion ports quantity |
1 |
|
PCI Express x8 (Gen 3.x) slots |
1 |
|
Design |
|
Chassis type |
Rack (1U) |
|
Cooling type |
Active |
|
Product colour |
Black |
|
Number of fans |
2 fan(s) |
|
Fan diameter |
4 cm |
|
LED indicators |
Alarm, HDD, Power, Status |
|
Performance |
|
Type |
NAS |
|
Device class |
Small & Medium Business |
|
Backup function |
Yes |
|
Backup features |
Cloud, iSCSI LUN |
|
Multilingual support |
Yes |
|
Noise level |
39.3 dB |
|
Web-based management |
Yes |
|
Security algorithms |
HTTPS, SSH, SSL/TLS |
|
Access Control List (ACL) |
Yes |
|
Reset button |
Yes |
|
On/off switch |
Yes |
|
Browser supported |
Chrome, Firefox, Internet Explorer 10+, Safari 10+ |
|
Software |
|
Operating system installed |
DiskStation Manager |
|
Windows operating systems supported |
Windows 10, Windows 7 |
|
Mac operating systems supported |
Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave |
|
Server operating systems supported |
Windows Server 2016 |
|
Power |
|
Power supply location |
Built-in |
|
Power supply unit (PSU) capacity |
150 W |
|
Number of power supply units |
2 |
|
Power consumption (typical) |
68.68 W |
|
Power consumption (HDD standby) |
34.78 W |
|
AC input voltage |
100 - 240 V |
|
AC input frequency |
50 - 60 Hz |
|
Weight & dimensions |
|
Width |
480 mm |
|
Depth |
518.6 mm |
|
Height |
44 mm |
|
Weight |
8.16 kg |
|
Packaging content |
|
Cables included |
AC |
|
Quick installation guide |
Yes |
|
Processor special features |
|
Embedded options available |
Yes |
|
Enhanced Intel SpeedStep Technology |
Yes |
|
Execute Disable Bit |
Yes |
|
Idle States |
Yes |
|
Intel 64 |
Yes |
|
Intel Enhanced Halt State |
Yes |
|
Intel Secure Key Technology version |
1.00 |
|
Intel Trusted Execution Technology |
Yes |
|
Intel TSX-NI |
Yes |
|
Intel TSX-NI version |
1.00 |
|
Intel Virtualization Technology (VT-x) |
Yes |
|
Intel Virtualization Technology for Directed I/O (VT-d) |
Yes |
|
Intel VT-x with Extended Page Tables (EPT) |
Yes |
|
Intel® AES New Instructions (Intel® AES-NI) |
Yes |
|
Intel® Hyper Threading Technology (Intel® HT Technology) |
Yes |
|
Intel® OS Guard |
Yes |
|
Intel® Secure Key |
Yes |
|
Intel® Turbo Boost Technology |
2.0 |
|
Maximum number of PCI Express lanes |
32 |
|
Thermal Monitoring Technologies |
Yes |
|
UART |
Yes |
|
Memory channels supported by processor |
Dual |
|
Memory types supported by processor |
DDR3-SDRAM, DDR4-SDRAM |
|
Operational conditions |
|
Operating temperature (T-T) |
5 - 35 °C |
|
Operating relative humidity (H-H) |
5 - 95% |
|
Storage temperature (T-T) |
-20 - 60 °C |
|
Operating altitude |
0 - 5000 m |
|
Logistics data |
|
Harmonized System (HS) code |
84714100 |
|
Other features |
|
Compliance certificates |
RoHS |
|
Certification |
EAC
VCCI
RCM
FCC
CE
BSMI |
|
Processor ARK ID |
91195 |
