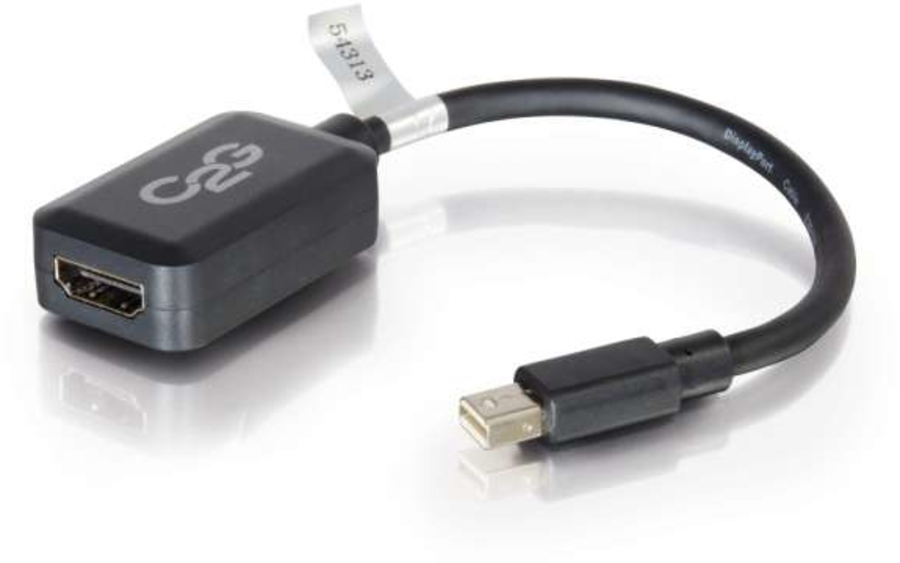

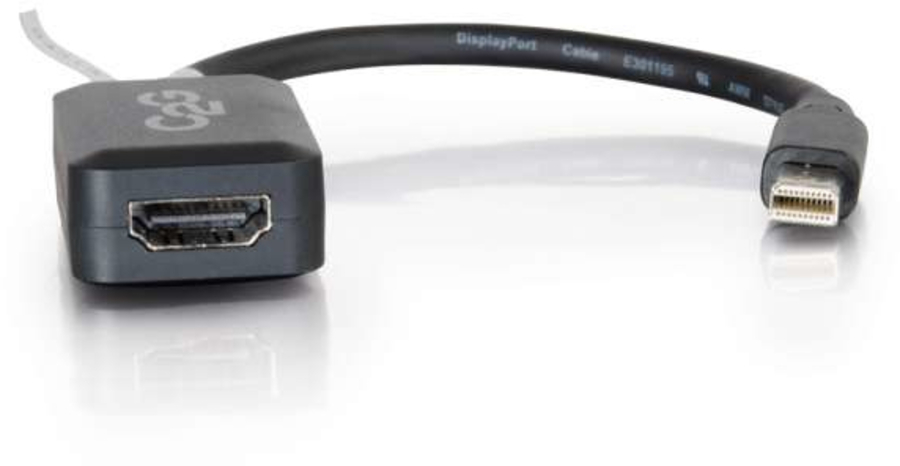

C2G 8in Mini DisplayPort Male to HDMI Female Adapter Converter - Black (TAA Compliant)
|
|
Price: $27.00
Manufacturer:
C2G
8in Mini DisplayPort Male to HDMI Female Adapter Converter - Black
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
48181833
|
54313
|
757120543138 |
Active
|
Details
|
General Information |
|
Summary |
This adapter converter is an ideal solution for adapting the Mini DisplayPort or Thunderbolt 2 output of a small laptop or tablet so that it may be connected to a HDTV or projector which accepts a HDMI input. This adapter converter carries a digital audio/video signal, supports up to a 1080p resolution and meets the requirements of high performance applications. This adapter converter is a perfect accessory for Microsoft® Surface® products and other leading laptops.
Additional Technical Specs
Electrical Specifications
•Voltage Rating: 30v
•Conductor Resistance: @ 20°C max
•Insulation Resistance: 10MΩ/km
•Time Delay: 5.2ns/m (max)
•Attenuation:
5.02dB@100-450MHz 7.69dB@1GHz
12.595dB@2GHz 17.495dB@3GHz
22.395dB@4GHz 27.295dB@5GHz
32.195dB@6GHz 37.095dB@7GHz
Physical Specifications:
•Operating Temperature: 0°C to 50°C
•Storage Temperature: -25°C to 70°C
•Approvals: CE
Conductor (2 Conductor, 5 Pair):
•Conductor: 32AWG (7/0.08TC)
•Insulation: FM-PE, ID:0.63±0.05mm
•Color: White/Brown, White/Red,
White/Orange, White/Green
White/Blue
•Drain: 32AWG (7/0.08TC)
HD-PE ID:0.63±0.05
•Shield: AL-Mylar Wrap
Coverage—100%
Conductor (5 Conductors):
•Conductor: 32AWG (7/0.08TC)
•Insulation: HD-PE, ID:0.5±0.05mm
•Color: Red/Orange/Yellow/Green/ White
Overall Cable:
•Jacket: PVC
•Shield: AL-Mylar—Coverage 100%
• Braid—16/9/0.12
•Drain: 2:30AWG (7/0.08 BC)
•OD: 5.2±0.2 |
|
Features |
|
Cable length |
0.2 m |
|
Connector 1 gender |
Male |
|
Connector 2 gender |
Female |
|
Product colour |
Black |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 50 °C |
|
Storage temperature (T-T) |
-25 - 70 °C |
|
Certificates |
|
Compliance certificates |
Federal Communications Commission (FCC), CE |
|
Certification |
CE,FCC |
|
Weight & dimensions |
|
Cable diameter |
5.2 mm |
|
Weight |
29.5 g |
|
Packaging data |
|
Package weight |
29.48 g |
|
