General Information |
|
Summary |

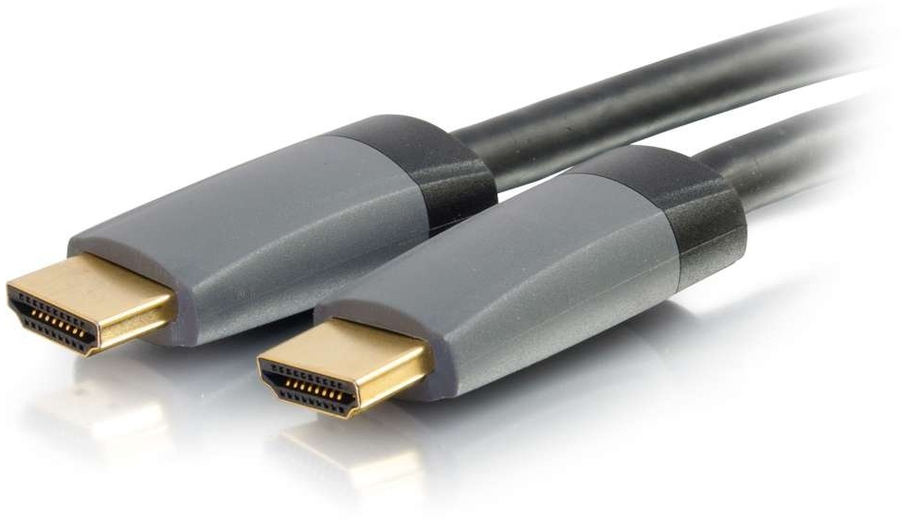

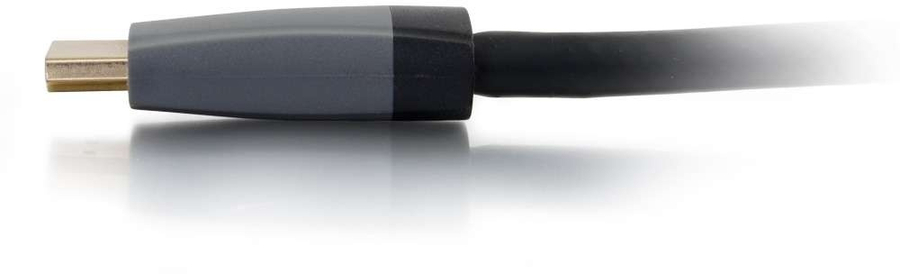

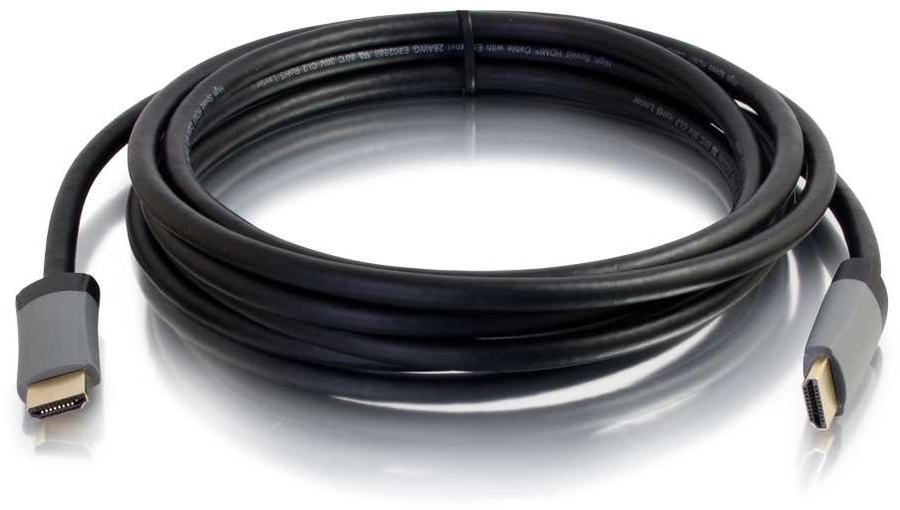

C2G Plus Series Select HDMI Cable with Ethernet is the perfect solution for connecting multimedia source devices in desktop or commercial audio video applications requiring high speed HDMI features.* The CL2 rated cable jacket is designed to meet the requirements for in-wall installations. The Ethernet capabilities of the cable allow a user to connect multiple Ethernet enabled HDMI devices through a single Ethernet connection. |
|
Features |
|
Cable length |
0.9 m |
|
Connector 1 |
HDMI Type A (Standard) |
|
Connector 2 |
HDMI Type A (Standard) |
|
Connector 1 gender |
Male |
|
Connector 2 gender |
Male |
|
Product colour |
Black |
|
Connector contacts plating |
Gold |
|
Connector 1 form factor |
Straight |
|
Connector 2 form factor |
Straight |
|
HDMI version |
2.0 |
|
Supported graphics resolutions |
4096 x 2160 |
|
HDMI Ethernet channel |
Yes |
|
Data transfer rate |
18 Gbit/s |
|
Supported digital audio channels (uncompressed) |
32 |
|
Maximum refresh rate |
60 Hz |
|
AWG wire size |
32 |
|
Cable rating |
CL2 |
|
Bending radius (min) |
5.1 cm |
|
Colour sampling |
4:4:4 |
|
Operational conditions |
|
Operating temperature (T-T) |
-20 - 80 °C |
|
Storage temperature (T-T) |
-20 - 80 °C |
|
Certificates |
|
Compliance certificates |
National Defense Authorization Act (NDAA), REACH, RoHS |
|
Weight & dimensions |
|
Cable diameter |
7.3 mm |
|
Packaging data |
|
Quantity per pack |
1 pc(s) |
|
Package type |
Polybag |
|
Sustainability |
|
Sustainability compliance |
Yes |
