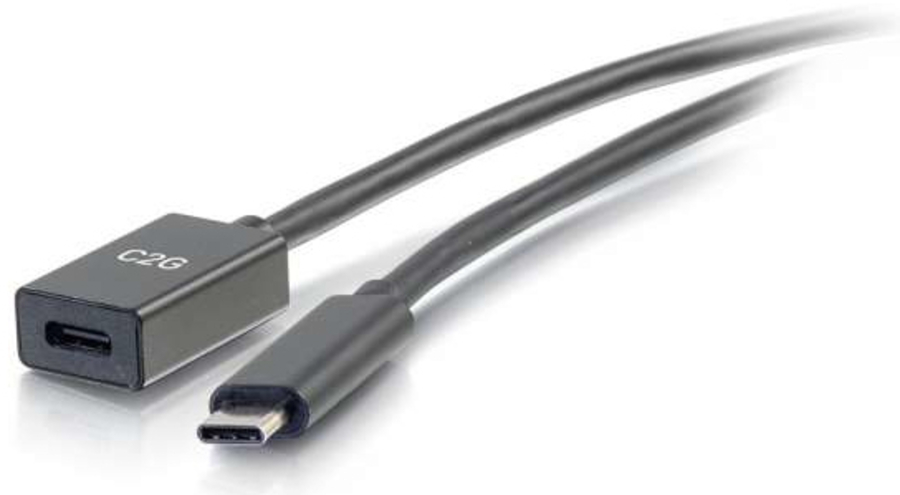

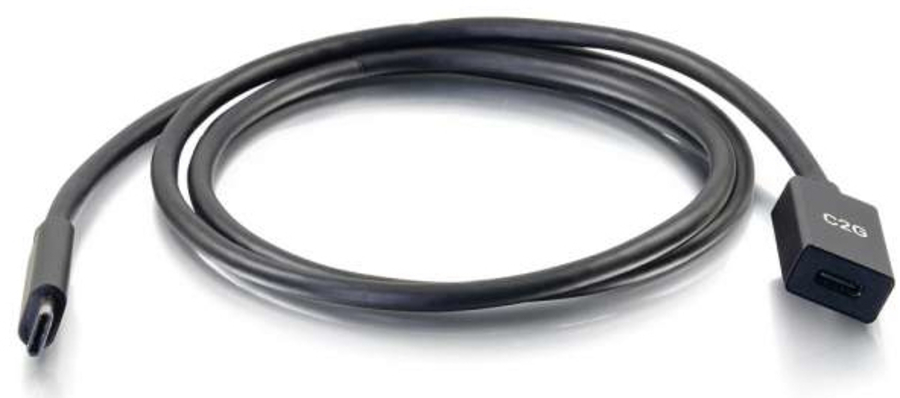

C2G 3-Foot USB-C to C 3.1 (Gen 1) Male to Female Extension Cable (5Gbps)
|
|
Price: $23.00
Manufacturer:
C2G
3ft (0.9m) USB-C to C 3.2 Gen 1 (5Gbps) Male to Female Extension Cable
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
50933671
|
28656
|
757120286561 |
Active
|
Details
|
General Information |
|
Summary |
The USB-C to C 3.2 (Gen 1) Male to Female Extension Cable is perfect for extending a USB-C connection on a USB-C equipped laptop, smartphone, or tablet. The extension cable supports fast charging and data transfer speeds up to 5 Gbps.
The USB-C connector has a symmetrical design which is identical on both sides, so no more worrying about whether it's upside-down or right-side-up. It will plug in the first time, every time—while preventing damage to the connector port from frequent plugging and unplugging.
Features and Benefits
USB-C Male to USB-C Female connection
Data transfer speeds up to 5 Gbps
3A charging output
Compatible with USB-C and Thunderbolt™ 3 ports
Reversible, symmetrical USB-C connector
Supports all 'Alt' mode features outputting full DisplayPort, including multi-streaming
Additional Technical Specifications
Electrical Specifications
USB 3.2 OD:4.5mm ~ Black
Rated Temperature: 80°C ; Voltage: 30V
Conductor Resistance: At 20°C max 32AWG: 588.5 OHMS/KM
Insulation Resistance: 10M-KM min at 20°C DC 500V.(EIA—364—21)
Dielectric Strength: AC 500V/1 Minute No Breakdown.(EIA—364—20)
Physical Specifications
Operating Temperature: 0 ~ +50°C; 15-85% RH (Non-Condensing)
Storage Temperature: -25 ~ +70°C; 15-85% RH (Non-Condensing)
Connector: P1: USB3.2 C Type Male: Contacts Terminal Gold Flash, Nickel Plated Shell; Black Insulation
Connector: P2: USB3.2 C Type Female: Contacts Terminal Gold Flash, Nickel Plated Shell; Black Insulation
Molding Material: P1: Black PVC Conform RoHS
Molding Material: P2: Black PVC Conform RoHS
Product is CE marked and conforms to 2011/65/EU RoHS2 |
|
Features |
|
USB version |
USB 3.2 Gen 1 (3.1 Gen 1) |
|
Connector 1 |
USB C |
|
Connector 2 |
USB C |
|
Connector 1 gender |
Male |
|
Connector 2 gender |
Female |
|
Product colour |
Black |
|
Connector 1 form factor |
Straight |
|
Connector 2 form factor |
Straight |
|
AWG wire size |
32 |
|
Connector contacts plating |
Gold |
|
Cable jacket material |
Polyvinyl chloride (PVC) |
|
Maximum data transfer rate |
5 Gbit/s |
|
Plug and Play |
Yes |
|
Weight & dimensions |
|
Cable length |
0.91 m |
|
Cable diameter |
4.5 mm |
|
Packaging data |
|
Package weight |
42.64 g |
|
Packaging content |
|
Quantity per pack |
1 pc(s) |
|
Certificates |
|
Compliance certificates |
Federal Communications Commission (FCC) |
|
Certification |
FCC |
|
