Aten DVI HDBaseT-Lite Transmitter

Home :: Audio & Video Products :: Video Products ::


Regularly: $127.00
On Sale: $121.92    Sale Ends: April 12th, 2024

Manufacturer: Aten

DVI HDBaseT-Lite Transmitter (1080p@70m)(HDBaseT Class B)

Availability
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
Product # Manufacturer # UPC # Status
52409182 VE601T 672792006630 Active

Details

General Information

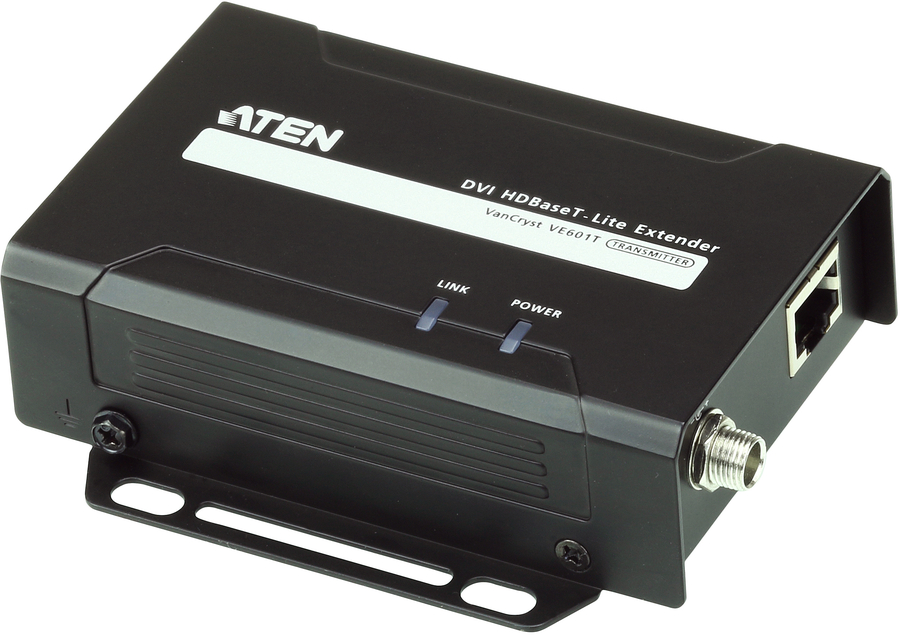

Summary The VE601T DVI HDBaseT-Lite Extender is able to extend a DVI 1080p display up to 70 m using an Ethernet cable. This combination of ATEN and HDBaseT technology even supports sharing 1920 x 1200 media up to 40 m away, offering a simple, adaptable, and cost-effective solution for any professional A/V installation.

The VE601 DVI HDBaseT-Lite Extender is the perfect solution for professional A/V installations that require video signal interference protection, such as in medical and military installations. With its lightweight and easy-to-mount design, not to mention slip-resistant DC Jack lock mechanism, the VE601 can be installed nearly anywhere while ensuring peace of mind with its unerring reliability.

* Compatible HDBaseT Receiver Units: VE601R, VE801R
Features
Type AV transmitter
Maximum resolution 1920 x 1200 pixels
Cable types supported Cat5e, Cat6, Cat6a
Maximum transfer distance 70 m
Supported video modes 1080p
Supported graphics resolutions 1920 x 1200 (WUXGA)
Bandwidth 340 MHz
Cable length 1.8 m
Resolution 1920 x 1200 pixels
Power 1.85 W
HDCP Yes
Material Metal
3D Yes
Rack mounting Yes
Impedance 100 Ω
Product colour Black
Compatible products VE601R, VE801R
Ports & interfaces
Ethernet LAN Yes

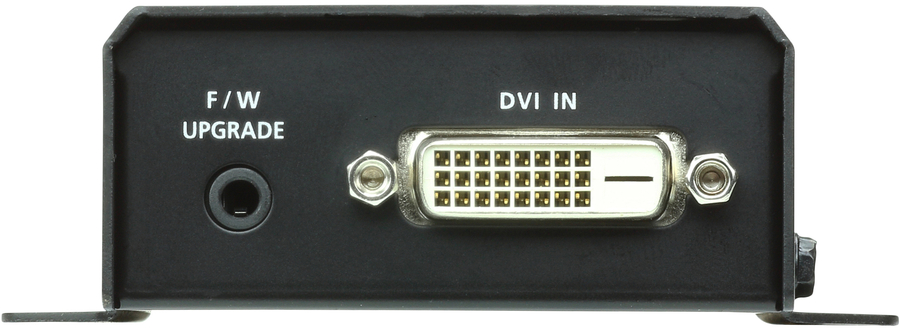

DVI input ports 1
Video in DVI-D Female

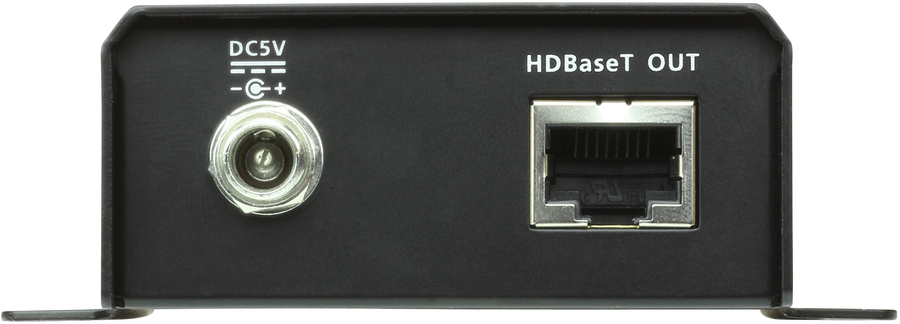

DC-in jack Yes
Power
Operating voltage 5 V
Power consumption (typical) 1.85 W
Operational conditions
Operating temperature (T-T) 0 - 50 °C
Storage temperature (T-T) -20 - 60 °C
Operating relative humidity (H-H) 0 - 80%
Weight & dimensions
Transmitter dimensions (WxDxH) 87 x 103 x 30 mm
Transmitter weight 250 g
Technical details
Connector type DC Jack with locking
Number of connectors 1
Quantity 1
Frequency 340 MHz

Multimedia

Multimedia Items
leaflet (leaflet)
