General Information |
|
Summary |

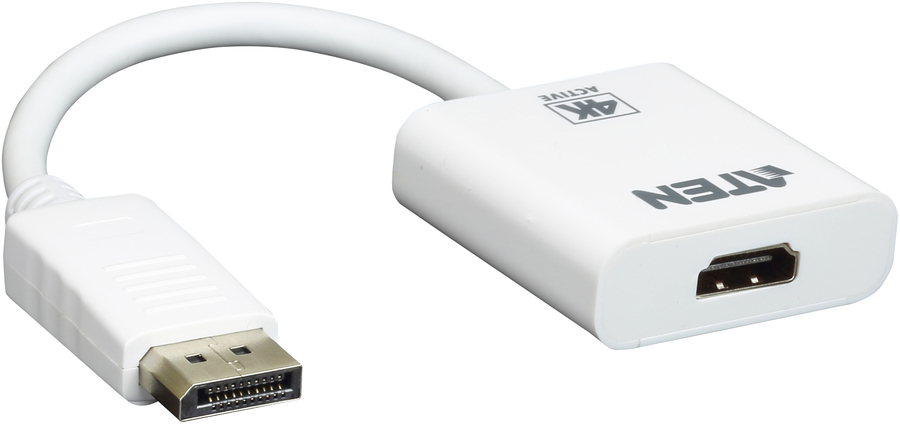

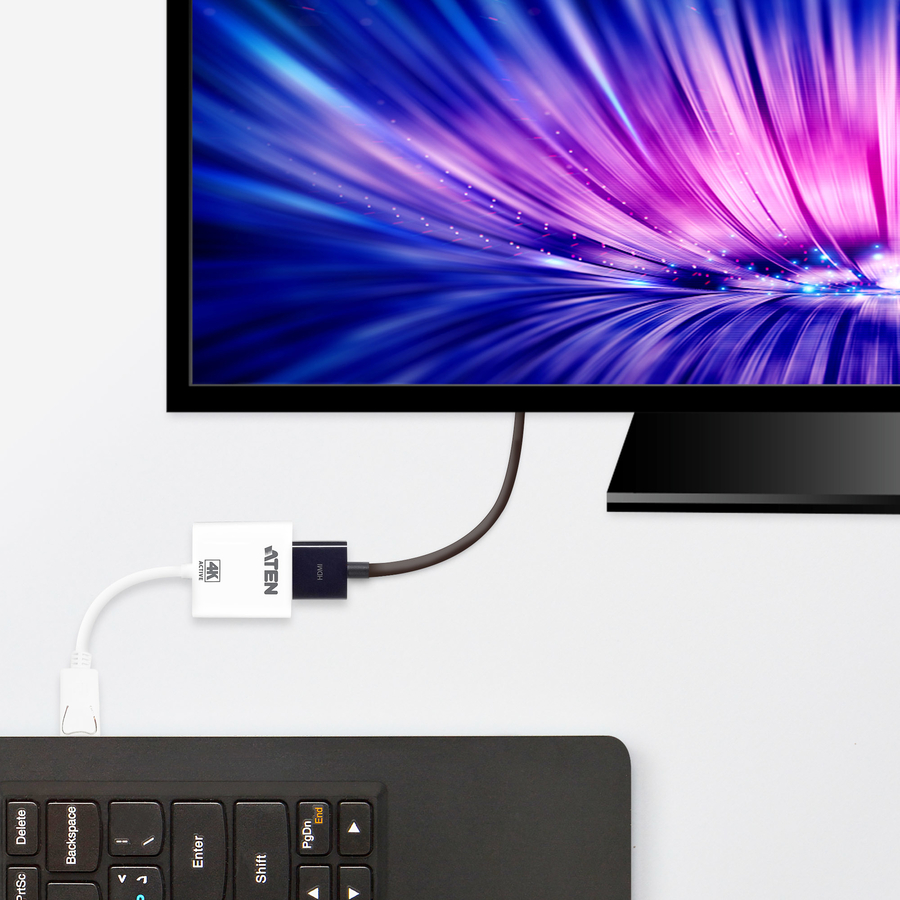

The VC986 is an active DisplayPort to HDMI adapter that allow you to connect your Mini DisplayPort/DisplayPort output device to the HDMI input of a 4K TV or other display.

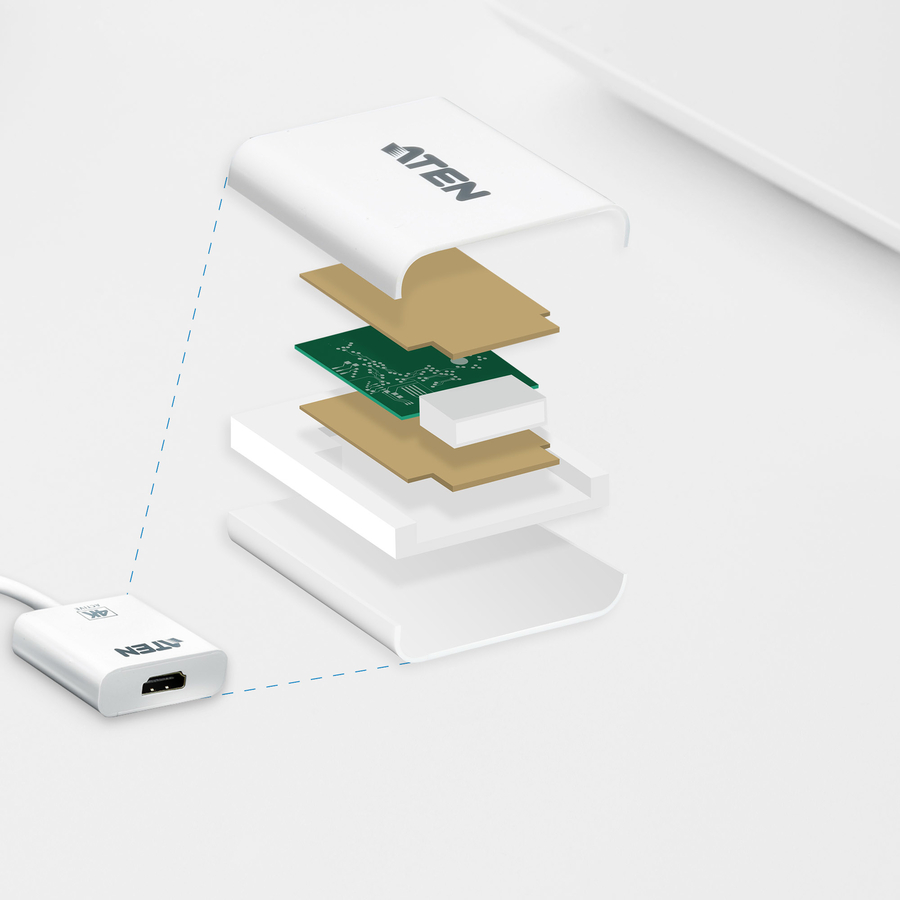

The ATEN VC986 is an active adapter, featuring advanced chips which ensure stable video signal conversion even when the video source does not support dual-mode DisplayPort (DP++).* Moreover, support for resolutions up to 4K make this adapter ideal for users who require a high performance signal conversion solution.
Note:
* Dual-mode DisplayPort (DP++) can directly process the signal from DisplayPort to HDMI or DVI signals.
* VC986 can only convert DisplayPort signals to HDMI output, and the reverse does not apply. |
|
Features |
|
Connector 1 |
DisplayPort |
|
Connector 2 |
HDMI |
|
Connector 1 gender |
Male |
|
Connector 2 gender |
Female |
|
Connector 1 form factor |
Straight |
|
Connector 2 form factor |
Straight |
|
HDMI version |
1.4 |
|
HDCP |
Yes |
|
HDCP version |
1.3 |
|
DisplayPort version |
1.2a |
|
Maximum resolution |
3840 x 2160 pixels |
|
Supported graphics resolutions |
1920 x 1200 (WUXGA), 3840 x 2160 |
|
Data transfer rate |
10.2 Gbit/s |
|
Bandwidth |
297 MHz |
|
Maximum refresh rate |
60 Hz |
|
Refresh rate at maximum resolution |
30 Hz |
|
3D |
Yes |
|
Product colour |
White |
|
Cable type |
Round cable |
|
Connector housing material |
Plastic |
|
Plug and Play |
Yes |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 50 °C |
|
Storage temperature (T-T) |
-20 - 60 °C |
|
Operating relative humidity (H-H) |
0 - 80% |
|
Weight & dimensions |
|
Weight |
40 g |
|
Width |
45 mm |
|
Depth |
180 mm |
|
Height |
15 mm |
|
Packaging content |
|
Quantity per pack |
1 pc(s) |
