General Information |
|
Summary |

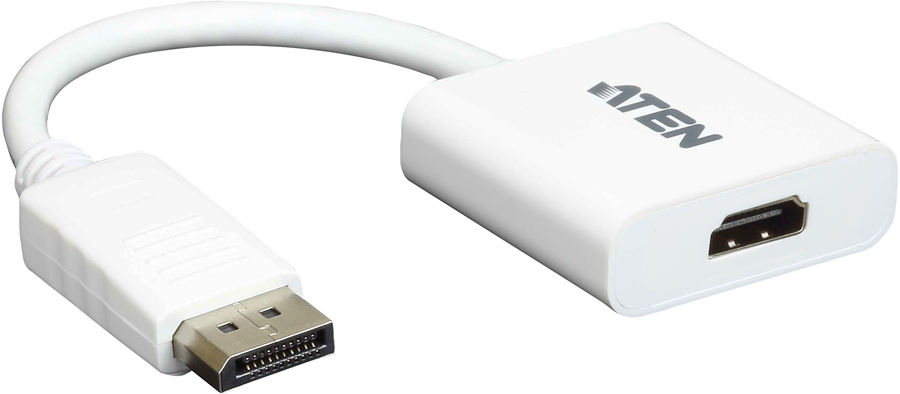

The VC985 is a DisplayPort to HDMI adapter, allowing you to connect your device’s DisplayPort output to the HDMI input of a TV or other display.
The VC985 provide a cost-effective yet high performance signal conversion solution. This adapter is therefore perfect for computers and notebooks, supporting display resolutions of up to 1080p (1920x1080@60Hz). |
|
Features |
|
Connector 1 |
DisplayPort |
|
Connector 2 |
HDMI |
|
Connector 1 gender |
Male |
|
Connector 2 gender |
Female |
|
Connector 1 form factor |
Straight |
|
Connector 2 form factor |
Straight |
|
HDMI version |
1.3 |
|
DisplayPort version |
1.2 |
|
Maximum resolution |
1920 x 1200 pixels |
|
Supported graphics resolutions |
1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA) |
|
Bandwidth |
165 MHz |
|
Maximum refresh rate |
60 Hz |
|
Refresh rate at maximum resolution |
60 Hz |
|
Product colour |
White |
|
Cable type |
Round cable |
|
Connector housing material |
Plastic |
|
Plug and Play |
Yes |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 50 °C |
|
Storage temperature (T-T) |
-20 - 60 °C |
|
Operating relative humidity (H-H) |
0 - 80% |
|
Weight & dimensions |
|
Weight |
40 g |
|
Width |
45 mm |
|
Depth |
180 mm |
|
Height |
15 mm |
|
Packaging content |
|
Quantity per pack |
1 pc(s) |
