General Information |
|
Summary |

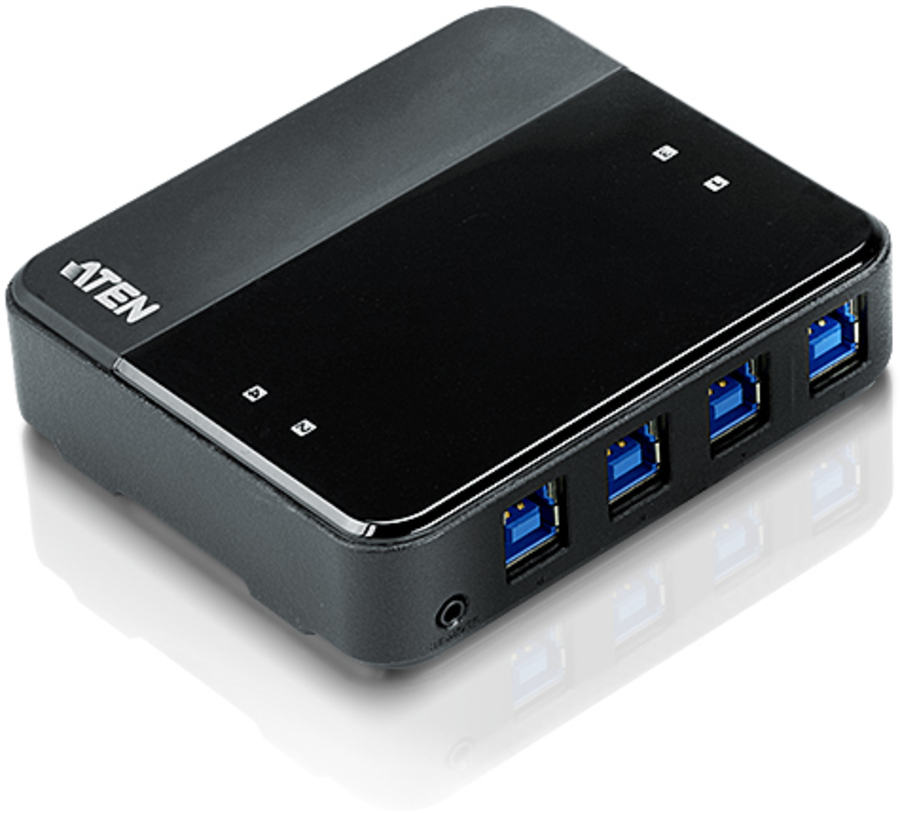

ATEN US434 is a 4-port USB 3.2 Gen1 peripheral sharing device that allows users to share four USB devices between 4 different computers. US434 is USB 3.2 Gen1 compliant, which can support data transfer rate up to 5Gbps and backwards compatible with USB 2.0 and USB1.1. It is perfect for high-bandwidth devices, such as USB docking stations or HD cameras.
1x US434 4 x 4 USB 3.2 Gen1 Peripheral Sharing Switch
2x LIN6-11C1-E11G USB 3.2 Gen1 Type-B to Type-A Cables (1,2m)
2x LIN6-11C1-E12G USB 3.2 Gen1 Type-B to Type-A Cables (1,8m)
1x Remote Port Selector
1x User Instructions |
|
Ports & interfaces |
|
USB 2.0 ports quantity |
0 |
|

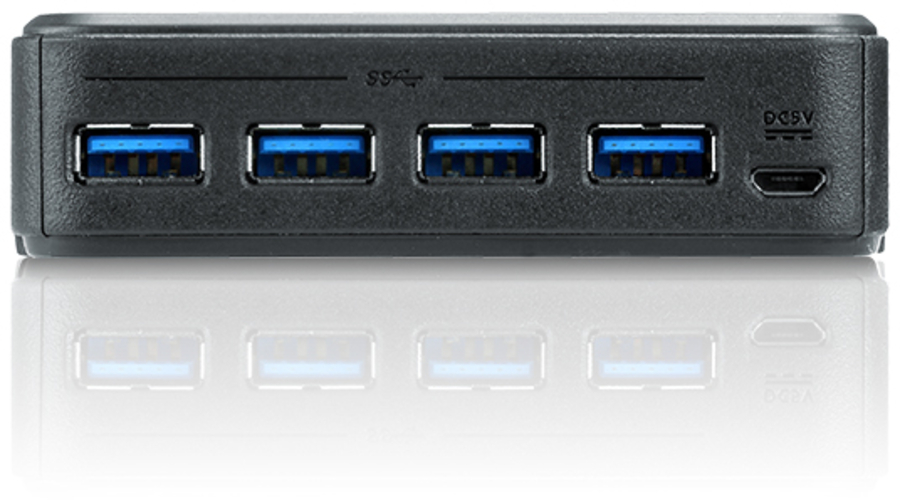

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
|

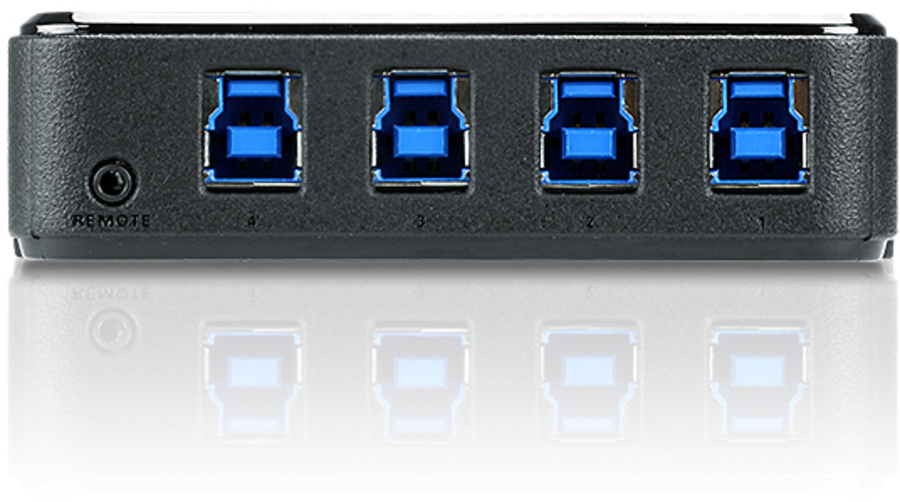

USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity |
4 |
|
DC-in jack |
Yes |
|
Performance |
|
Maximum data transfer rate |
5 Gbit/s |
|
Remote control function |
Yes |
|
LED indicators |
Yes |
|
Power connector |
Micro-USB Type-B |
|
Product colour |
Black |
|
Housing material |
Plastic |
|
Technical details |
|
Compliance certificates |
RoHS |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Storage temperature (T-T) |
-20 - 60 °C |
|
Operating relative humidity (H-H) |
0 - 80% |
|
Weight & dimensions |
|
Width |
36.6 mm |
|
Depth |
93.7 mm |
|
Height |
26.8 mm |
|
Weight |
439 g |
|
Packaging data |
|
Package depth |
163 mm |
|
Package width |
70 mm |
|
Package height |
195 mm |
|
Package weight |
576 g |
|
Logistics data |
|
Products per master (outer) case |
10 pc(s) |
|
Master (outer) case gross weight |
6.46 kg |
|
Master (outer) case length |
405 mm |
|
Master (outer) case width |
395 mm |
|
Master (outer) case height |
182 mm |
|
Master (outer) case net weight |
4.39 kg |
