General Information |
Summary |

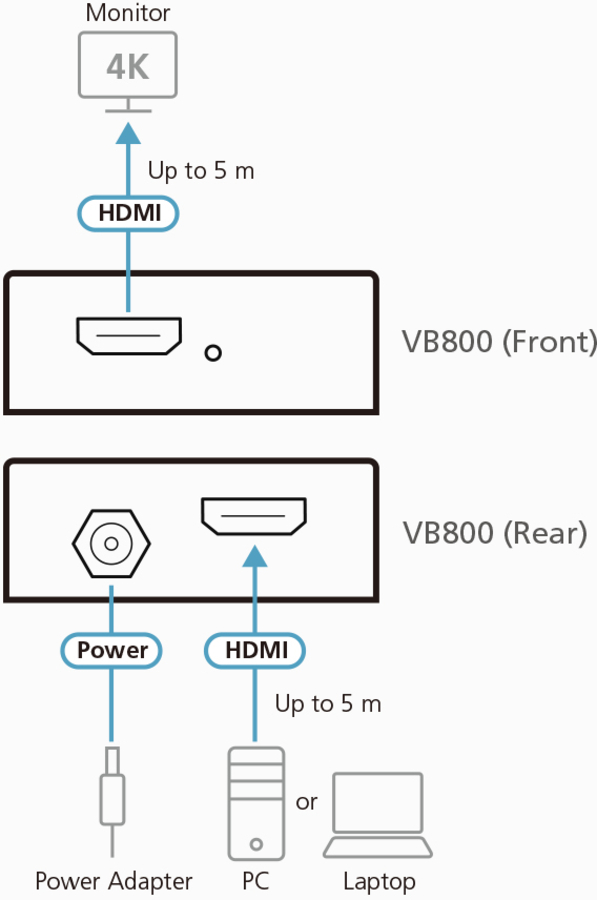

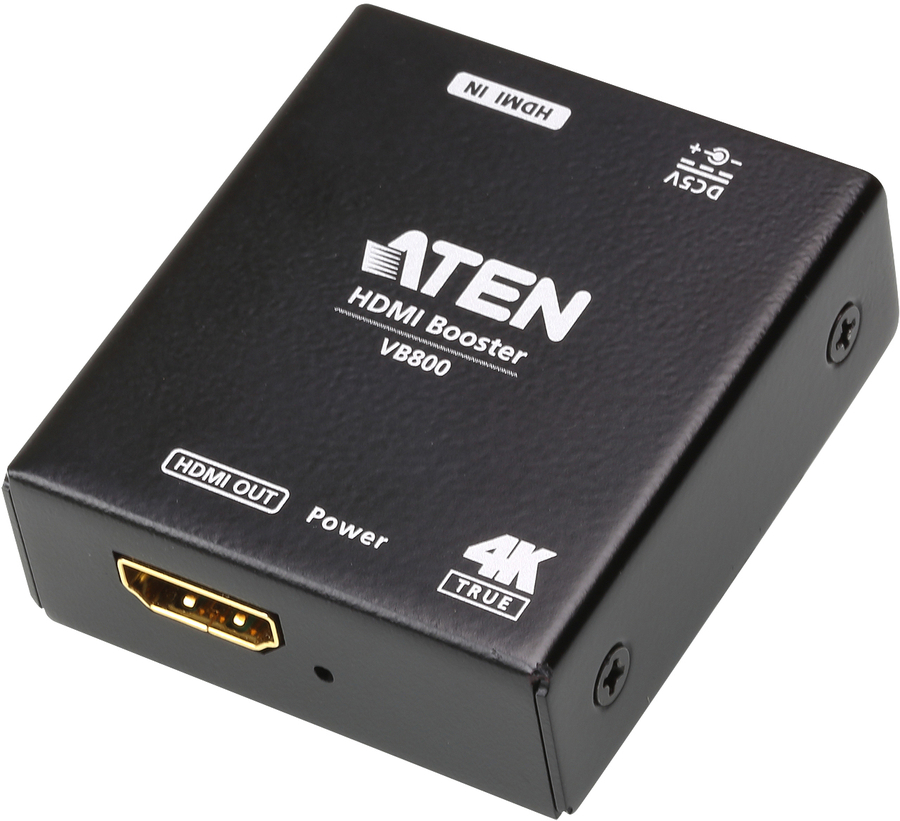

The VB800 is a True 4K HDMI booster providing a solution for long distance transmission. The HDMI booster reliably extends True 4K signals and can be cascaded up to 10 levels, guaranteeing ultimate color and image quality. The VB800 is HDMI compliant and supports all HDMI-enabled devices. The booster can be rack mounted, offering excellent flexibility for managing both work and home settings. |
Features |
Type |
AV transmitter & receiver |
Maximum transfer distance |
20 m |
Supported graphics resolutions |
1920 x 1080 (HD 1080) |
Bandwidth |
600 MHz |
HDCP |
Yes |
Material |
Metal |
Plug and Play |
Yes |
Product colour |
Black |

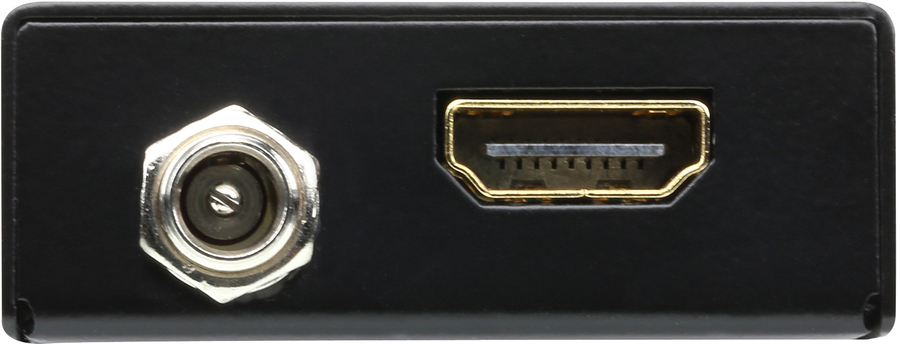

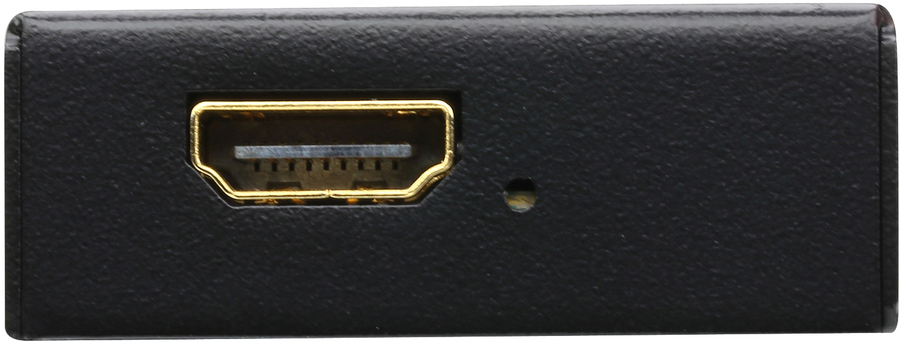

Ports & interfaces |
HDMI in |
1 |
Number of HDMI outputs |
1 |
DC-in jack |
Yes |
Power |
Power consumption (typical) |
0.99 W |
Operational conditions |
Operating temperature (T-T) |
0 - 40 °C |
Storage temperature (T-T) |
-20 - 60 °C |
Operating relative humidity (H-H) |
0 - 80% |
Weight & dimensions |
Dimensions (WxDxH) |
56 x 49 x 170 mm |
Weight |
90 g |
Packaging content |
Cables included |
AC |
Mounting kit |
Yes |
