Aten 4-Port 3G-SDI Input Board
|
|
Regularly: $2353.00
On Sale: $2282.41
Sale Ends:
December 7th, 2025
Manufacturer:
Aten
4-Port 3G-SDI Input Board
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
52570918
|
VM7404
|
- |
Active
|
Details
|
General Information |
|
Summary |

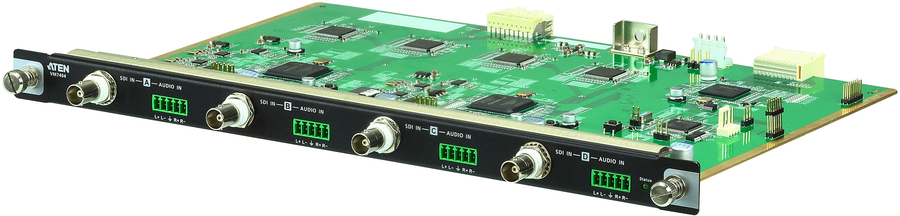

The VM7404 4-Port 3G-SDI Input Board offers an easy way to route any 4 SDI video and audio sources to multiple displays when used in combination with an ATEN Modular Matrix Switch. This input board provides the capability to connect to SDI sources, including 3G-SDI, HD-SDI and SD-SDI, and supports high quality video resolutions up to 1080p @ 60 Hz. The VM7404 also supports separate analog stereo audio signals that can be routed independently. Furthermore, the board is based on a hot-swappable design, allowing the ATEN Modular Matrix Switch to remain on while the board is changed. Ideal for surveillance systems and numerous other broadcast-grade A/V applications, the VM7404 allows you to effectively centralize routing for all your 3G / HD / SD-SDI devices. |
|
Design |
|
Product type |
Input board |
|
Product colour |
Black, Green |
|
Material |
Metal |
|
Ports & interfaces |
|
BNC ports quantity |
4 |
|
Power |
|
Power consumption (typical) |
16 W |
|
Weight & dimensions |
|
Width |
242.8 mm |
|
Depth |
352 mm |
|
Height |
22.8 mm |
|
Weight |
600 g |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Operating relative humidity (H-H) |
0 - 80% |
|
Storage temperature (T-T) |
-20 - 60 °C |
|
