Aten 4-port USB Boundless KM Switch
|
|
Regularly: $505.00
On Sale: $484.80
Sale Ends:
April 26th, 2024
Manufacturer:
Aten
4-port USB Boundless KM Switch (Cables included)
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
52570965
|
CS724KM
|
- |
Active
|
Details
|
General Information |
|
Summary |
The CS724KM is a 4-Port USB KM Switch that enables users to control up to 4 computers with a single keyboard and mouse. Two switches can be daisy-chained to enable control of up to 8 computers from a single console.
The CS724KM features various innovative port selection methods. Users can switch between the connected computers via front panel pushbutton, keyboard hotkey, mouse cursor, mouse wheel, and RS-232 commands. The mouse cursor method adopts ATEN’s exclusive Boundless Switching technology, which provides an intuitive way to switch control to another computer by simply moving your mouse cursor across a screen border and onto the target computer display. Move the mouse cursor in any direction to switch the control focus without limitations.
The CS724KM’s Boundless Switching function supports extended desktops with up to sixteen monitors total, expediting the process of switching between computers for a smooth and hassle-free user experience. In addition to making multitasking across multiple displays more efficient, this function is especially useful in emergencies that necessitate the immediate monitoring and management of computers.
The CS724KM also provides an intuitive GUI-based configuration utility that allows users to customize their mouse cursor movement paths according to the specific monitor layout at the desktop or workstation. The configuration tool is easy to set up and compatible with Windows operating systems.
Further advanced features of the CS724KM include bus-power mode which means no external power adapter is required, as well as independent switching of the keyboard/mouse, USB peripheral, and audio focus via hotkeys. With a rich feature set, the CS724KM is designed to simplify administrative tasks, save space, and increase work productivity in multi-monitor extended desktop environments, and is especially suitable for complex multitasking applications in control rooms in any industry. |
|
Ports & interfaces |
|
Number of computers controlled |
4 |
|
Keyboard port type |
USB |
|
Mouse port type |
USB |
|

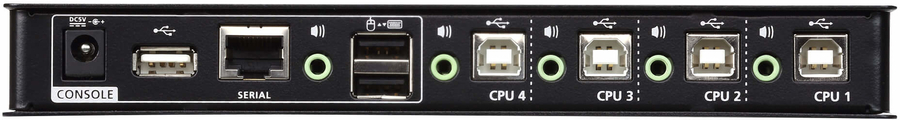

Console ports |
3.5mm headphone, RJ–45, USB A |
|
USB 2.0 Type-B ports quantity |
4 |
|
Console USB ports quantity |
2 |
|
USB hub |
Yes |
|
Console RJ-45 ports quantity |
1 |
|
USB 2.0 Type-A hub ports quantity |
2 |
|
USB connector type |
USB Type-A, USB Type-B |
|
Audio connections |
Yes |
|
Headphone outputs |
5 |
|
DC-in jack |
Yes |
|
Performance |
|
Daisy chain |
Yes |
|
Design |
|
Product colour |
Black |
|
Housing material |
Metal, Plastic |
|
LED indicators |
Yes |
|
Push button |
Yes |
|
Hot keys |
Yes |
|
Display |
|
Built-in display |
No |
|
Power |
|
Power source |
DC |
|
DC input voltage |
5 V |
|
Power consumption (typical) |
1.69 W |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 50 °C |
|
Storage temperature (T-T) |
-20 - 60 °C |
|
Operating relative humidity (H-H) |
0 - 80% |
|
Weight & dimensions |
|
Width |
200 mm |
|
Depth |
80.6 mm |
|
Height |
25 mm |
|
Weight |
500 g |
|

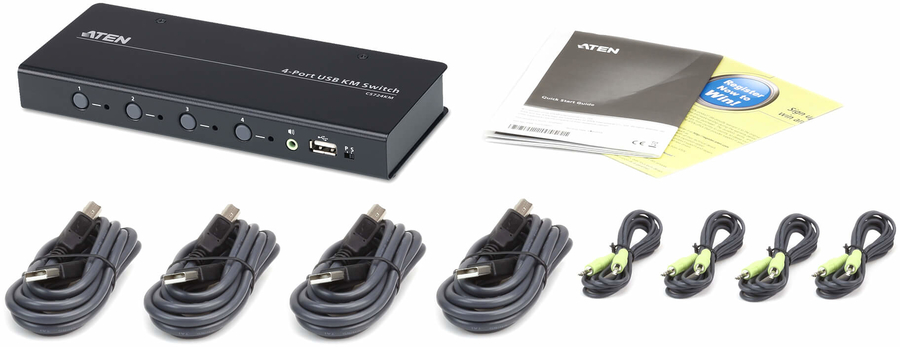

Packaging content |
|
Cables included |
Audio (3.5mm), USB |
|
Manual |
Yes |
|
