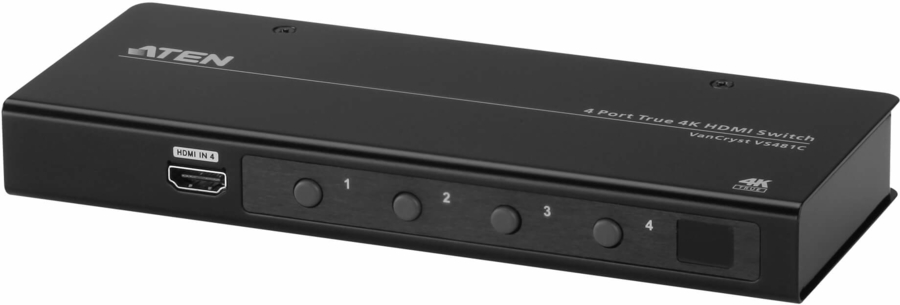

Aten 4-Port True 4K HDMI Switch
|
|
Regularly: $111.00
On Sale: $106.56
Sale Ends:
April 26th, 2024
Manufacturer:
Aten
4-Port True 4K HDMI Switch
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
52570971
|
VS481C
|
- |
Active
|
Details
|
General Information |
|
Summary |
The ATEN VS481C is designed for applications that require the routing of 4 sources to one compatible display device. It enables the reliable transmission at video resolutions up to True 4K (4096 x 2160 @ 60Hz 4:4:4), data rates up to 18 Gbps, 3D, Deep Color up to 12-bit, and HD lossless audio formats. Integrator-friendly features include Auto Switching modes for auto port selection, bi-directional RS-232, and IR for remote device control.
Engineered to meet today’s demand of True 4K signal transmission and user- oriented design, the ATEN VS481C is a powerful solution for a wide range of settings, such as home theater, meeting rooms, trade shows, and shopping centers. |
|
Ports & interfaces |
|
Video port type |
HDMI |
|
HDMI ports quantity |
4 |
|
HDMI version |
2.0 |
|
Number of HDMI outputs |
4 |
|
RS-232 ports |
1 |
|
DC-in jack |
Yes |
|
Features |
|
Material |
Metal |
|
Product colour |
Black |
|
Plug and Play |
Yes |
|
HDCP |
Yes |
|
Maximum refresh rate |
60 Hz |
|
Maximum operating distance |
3 m |
|
Bandwidth |
600 MHz |
|
LED indicators |
Yes |
|
Maximum resolution |
4096 x 2160 pixels |
|
Remote control type |
IR |
|
3D |
Yes |
|
HD type |
HD |
|
Colour depth |
12 bit |
|
Input impedance |
100 Ω |
|
HDCP version |
2.2 |
|
Power |
|
Power consumption (typical) |
5 W |
|
Power plug type |
Type A |
|
Weight & dimensions |
|
Width |
821 mm |
|
Depth |
200 mm |
|
Height |
250 mm |
|
Weight |
470 g |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Storage temperature (T-T) |
-20 - 60 °C |
|
Operating relative humidity (H-H) |
0 - 80% |
|
Logistics data |
|
Harmonized System (HS) code |
85176990 |
|
Products per master (outer) case |
10 pc(s) |
|
