Aten HDMI HDBaseT Transmitter with Local Output
|
|
Regularly: $532.00
On Sale: $510.72
Sale Ends:
May 26th, 2024
Manufacturer:
Aten
HDMI HDBaseT Transmitter with Local Output (4K@100m) (HDBaseT Class A)
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
52570973
|
VE814AT
|
672792007989 |
Active
|
Details
|
General Information |
|
Summary |

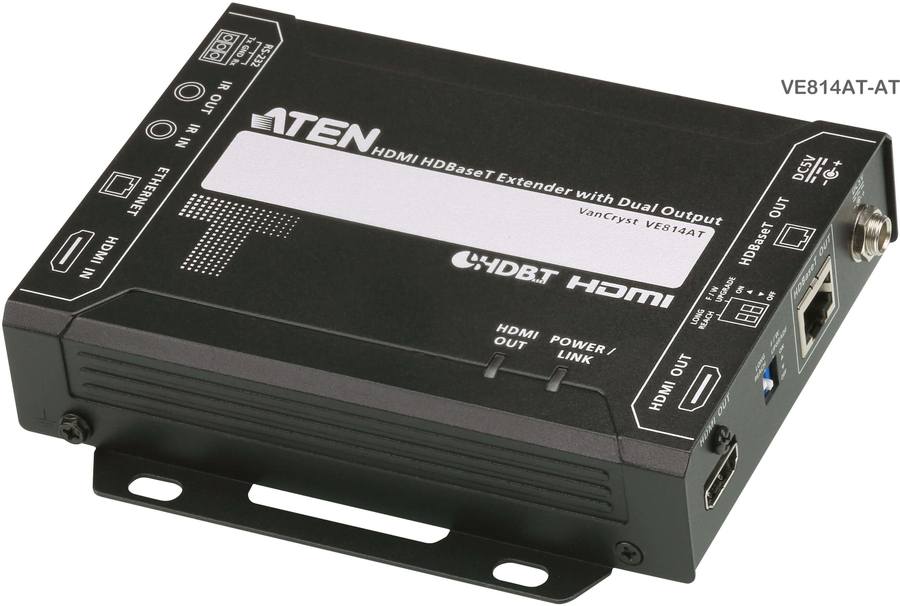

ATEN VE814AT is an HDBaseT Video Transmitter that is capable of sending HDMI signals up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable. Featuring dual synchronous outputs, the VE814AT can transmit video signal to two remote displays and one at the local side. This HDCP 2.2-compliant transmitter meets the HDMI Specification, including 3D, Deep Color, the maximum data rate of (10.2 Gbps), and 4K video quality up to 100 m.

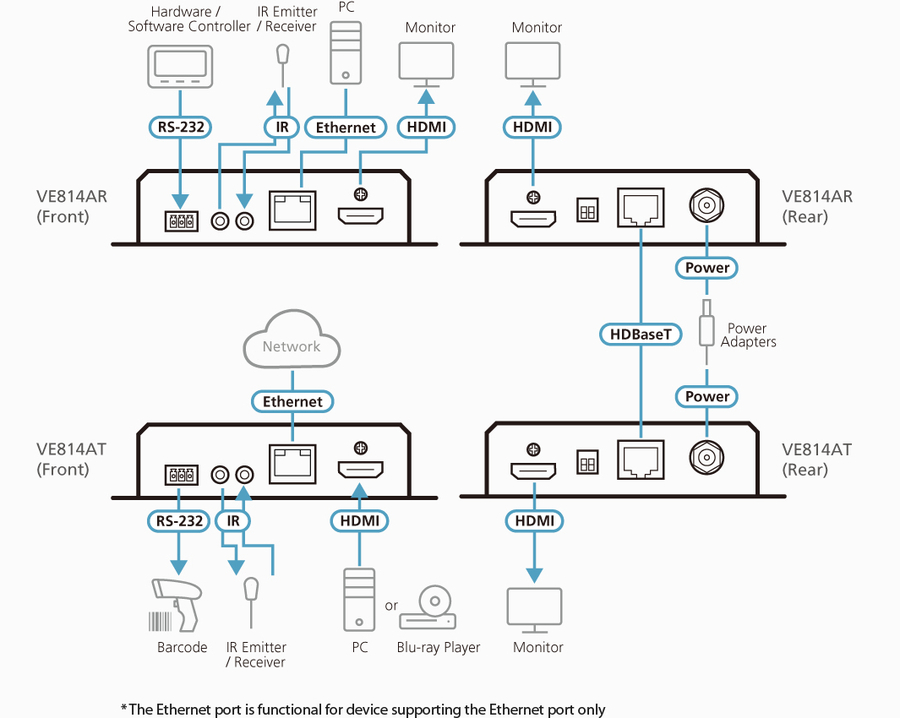

The VE814AT supports RS-232 and IR signaling pass-through, allowing you to control the HDMI source device from the remote unit (VE814AR) while granting access to the HDMI display device from the local unit (VE814AT). In addition, it supports Long Reach Mode that extends HDMI signals up to 150 m, 1080p, via a single Cat 5e/6 cable.
The VE814AT is a powerful solution for where digital signage is required, such as bars, educational spaces, and public transportation stations, allowing display of identical contents at different spots. |
|
Features |
|
Type |
AV transmitter |
|
Maximum resolution |
4096 x 2160 pixels |
|
Cable types supported |
Cat5e, Cat6, Cat6a |
|
Maximum transfer distance |
150 m |
|
Bandwidth |
340 MHz |
|
HDCP |
Yes |
|
Material |
Metal |
|
3D |
Yes |
|
Rack mounting |
Yes |
|
Consumer Electronics Control (CEC) support |
Yes |
|
Plug and Play |
Yes |
|
Impedance |
100 Ω |
|
Product colour |
Black |
|
Ports & interfaces |
|
Connectivity technology |
Wired |
|
RJ-45 input ports |
1 |
|
HDBaseT port |
Yes |
|
HDMI in |
1 |
|
Number of HDMI outputs |
1 |
|
Remote (IR) input |
1 |
|
Remote (IR) output |
1 |
|
DC-in jack |
Yes |
|
Power |
|
Operating voltage |
5 V |
|
Power consumption (transmitter) (max) |
5.1 W |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Storage temperature (T-T) |
-20 - 60 °C |
|
Operating relative humidity (H-H) |
0 - 80% |
|
Weight & dimensions |
|
Transmitter dimensions (WxDxH) |
123 x 140.4 x 30 mm |
|
Transmitter weight |
450 g |
|
Packaging content |
|
AC adapter included |
Yes |
|
Manual |
Yes |
|
Technical details |
|
Sustainability certificates |
RoHS |
|
