General Information |
|
Summary |

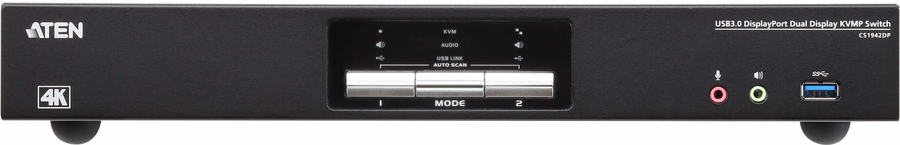

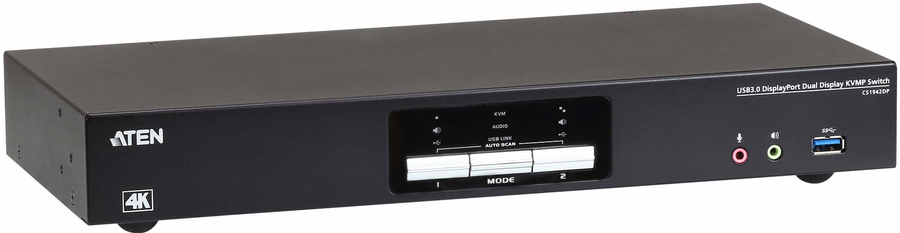

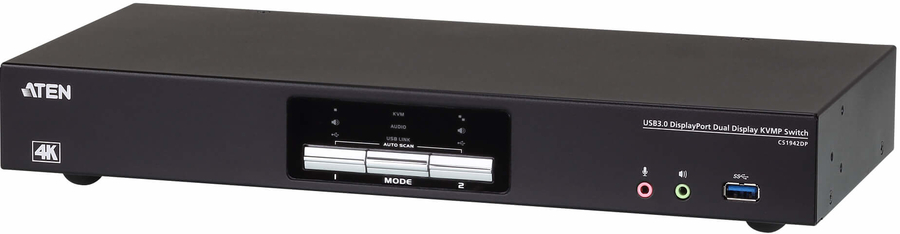

The ATEN CS1942DP desktop KVM switch helps organize your desktop. Especially when managing a multimedia workstation at a large organization, CS1942DP provides you with instant access to two or four computers, all through a single USB keyboard, USB mouse and two DisplayPort monitors.
Advanced video support provides a better-defined DisplayPort connection with video resolutions up to 4K (4096 x 2160 / 3840 x 2160 @ 60 Hz). Incorporating dual display capability, you are allowed to enjoy a wider screen and easily switch between two or four DisplayPort systems. In addition, featuring a built-in USB 3.1 Gen 1 hub, the CS1942DP delivers unprecedented data transfer rates up to 5 Gbps, allowing you to maximize multimedia operations.
Engineered to meet the ever-increasing demand for dual display, ultra-fast data transmission rates, and lossless 4K video resolution, the CS1942DP is specifically designed for where multitasking is needed such as design, financial trading, and video post production.
Note:
As is common with DisplayPort KVM switches, switching between KVM ports in an Extended Desktop setup may cause windows open on the extended desktop to be resized/repositioned back to a default configuration on the main display. This is due to the nature of the DisplayPort protocol and may require a manual readjustment. |
|

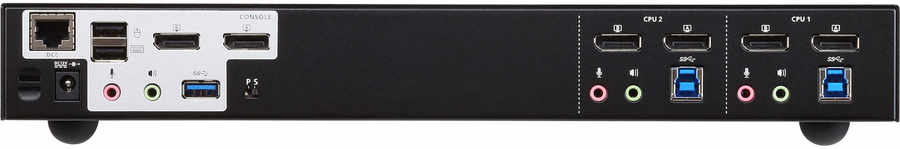

Ports & interfaces |
|
Number of computers controlled |
2 |
|
Keyboard port type |
USB |
|
Mouse port type |
USB |
|
Video port type |
DisplayPort |
|
Console ports |
3.5mm headphone, 3.5mm mic, DisplayPort, USB A |
|
DisplayPorts quantity |
6 |
|
DisplayPort version |
1.2 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity |
2 |
|
Console USB ports quantity |
2 |
|
USB hub |
Yes |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity |
2 |
|
Headphone outputs |
4 |
|
Number of microphone inputs |
4 |
|
DC-in jack |
Yes |
|
Network |
|
Ethernet LAN (RJ-45) ports |
1 |
|
Performance |
|
HD type |
4K Ultra HD |
|
Maximum resolution |
4096 x 2160 pixels |
|
Video bandwidth |
60 Hz |
|
Scan interval |
1,5,99 s |
|
Auto scan delay (min) |
1 s |
|
Auto scan delay (max) |
99 s |
|
HDCP |
Yes |
|
Daisy chain |
Yes |
|
Firmware upgradeable |
Yes |
|
Design |
|
Rack mounting |
No |
|
Product colour |
Black |
|
Housing material |
Metal |
|
Push button |
Yes |
|
Hot keys |
Yes |
|
Display |
|
Built-in display |
No |
|
Power |
|
Power source |
DC |
|
DC input voltage |
12 V |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 50 °C |
|
Storage temperature (T-T) |
-20 - 60 °C |
|
Operating relative humidity (H-H) |
0 - 80% |
|
Weight & dimensions |
|
Width |
156.6 mm |
|
Depth |
335 mm |
|
Height |
44 mm |
|
Weight |
1.54 kg |
|

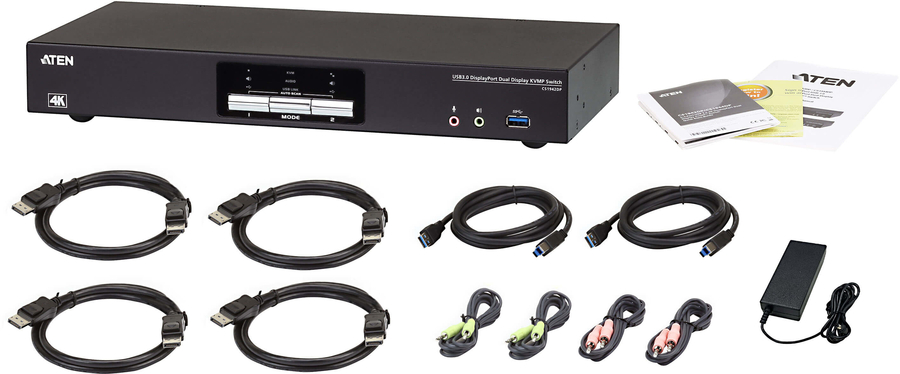

Packaging content |
|
Cables included |
Audio (3.5mm), DisplayPort to Mini DisplayPort, USB |
|
Manual |
Yes |
|
AC adapter included |
Yes |
|
Logistics data |
|
Harmonized System (HS) code |
85176200 |
