General Information |
|
Summary |

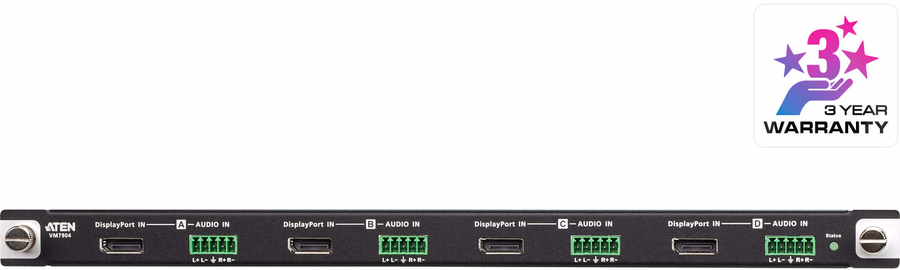

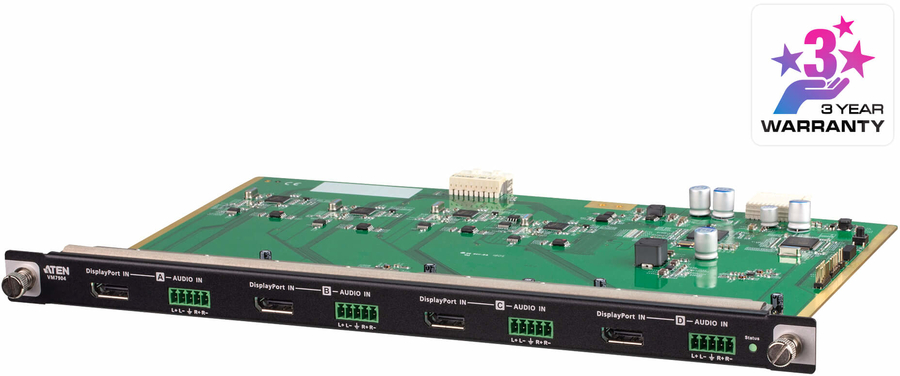

The VM7904 is a 4K DisplayPort Input Board that works with an ATEN Modular Matrix Switch to offer an easy way that routes 4 DisplayPort video and audio sources to up to 16 or 32 displays. In addition to the DisplayPort interface that carries digital A/V signal, the VM7904 also provides 4 stereo audio input ports that allow stereo audio to be routed independently or embedded for digital output.
1x VM7904 4-Port 4K DisplayPort Input Board
4x Terminal Blocks
1x User Instructions |
|
Design |
|
Product type |
Input board |
|
Product colour |
Black, Green |
|
Material |
Metal |
|
Ports & interfaces |
|
DisplayPorts quantity |
4 |
|
Power |
|
Power consumption (typical) |
7.18 W |
|
Weight & dimensions |
|
Width |
238 mm |
|
Depth |
352 mm |
|
Height |
23.3 mm |
|
Weight |
550 g |
|
Packaging data |
|
Package width |
285 mm |
|
Package depth |
426 mm |
|
Package height |
57 mm |
|
Package weight |
910 g |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Operating relative humidity (H-H) |
0 - 80% |
|
Storage temperature (T-T) |
-20 - 60 °C |
|
Technical details |
|
Compliance certificates |
RoHS |
|
Logistics data |
|
Products per master (outer) case |
2 pc(s) |
|
Master (outer) case gross weight |
2.25 kg |
|
Master (outer) case length |
440 mm |
|
Master (outer) case width |
300 mm |
|
Master (outer) case height |
138 mm |
|
Master (outer) case net weight |
1.1 kg |
