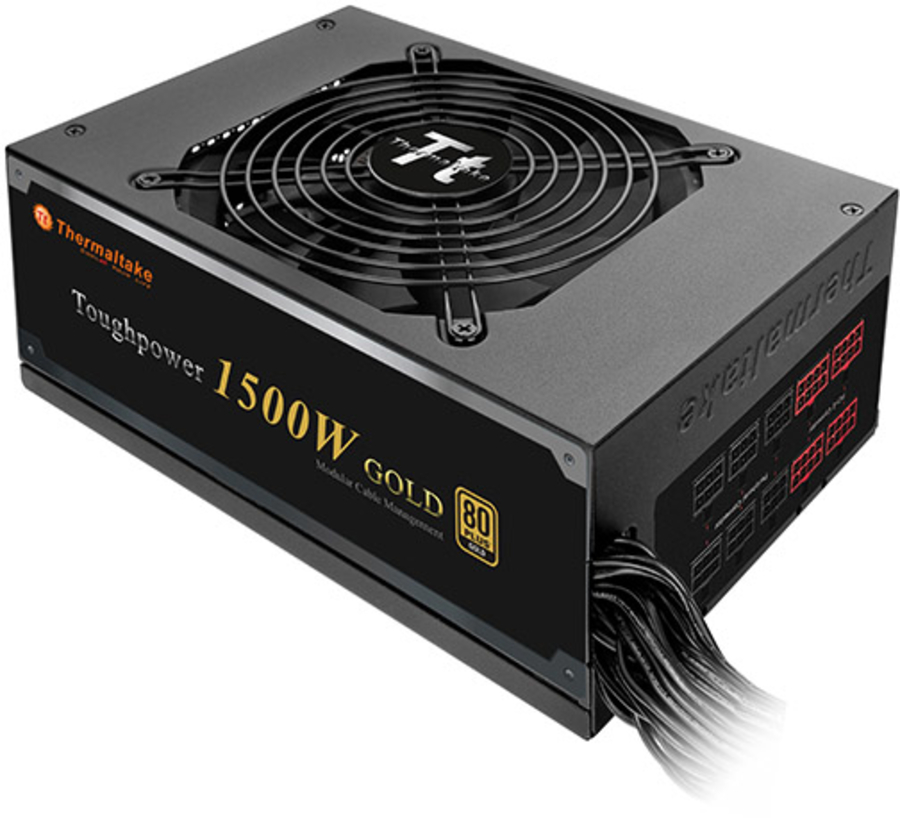

Toughpower 1500W Gold
The Thermaltake Toughpower Series is a premium line of PSUs certified to the 80 PLUS Gold standard. Incorporating components of the highest quality, it delivers stable performance and unbeatable efficiency. TPD 1500W Gold, which uses a semi-modular design. An ultra-quiet fan delivers silent cooling and a dual strong 12V rail flexibly routes the maximum available power to the CPU, enabling peak performance of the computer system.

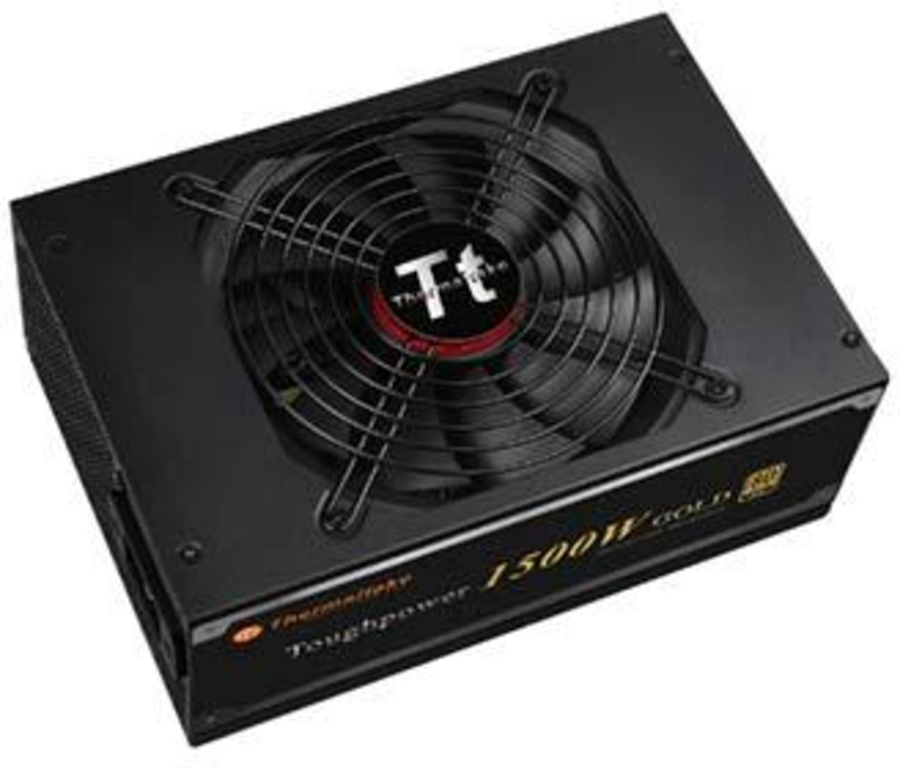

Ultra Quiet Fan
The Toughpower 1500W adopts a 135mm cooling fan with intelligent RPM control. This guarantees superior cooling performance and silent operation.
80 PLUS Gold Certified and Skylake-Ready
The Toughpower Gold Series saves energy through its high energy efficiency up to 90% and is certified to 80 PLUS® Gold. In addition, the Toughpower Gold Series is designed to meet the demands of Intel’s new, sixth-generation Skylake processor.

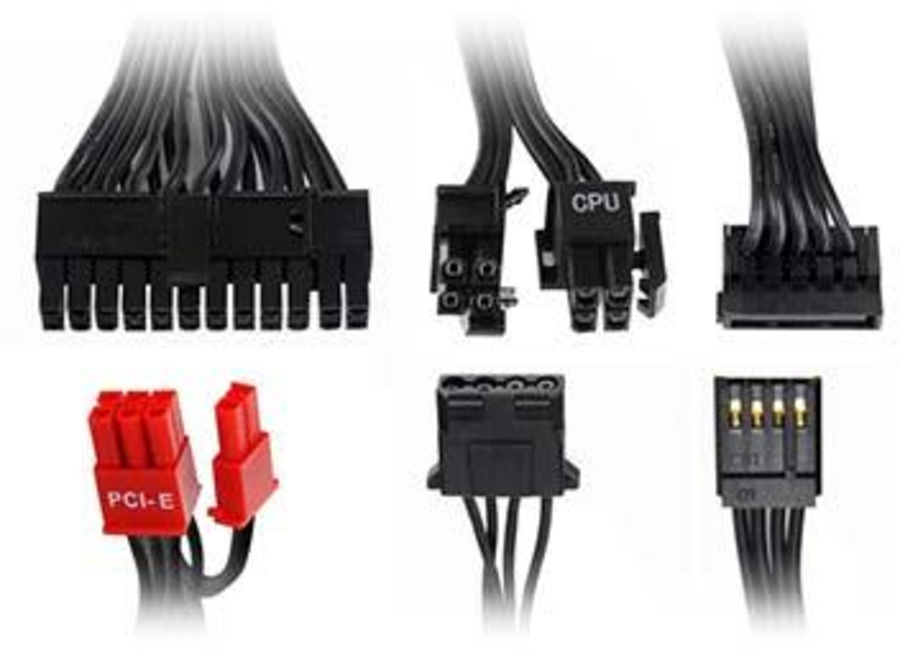

Flat Modular Cables
Low-profile flat modular cables used in the design enhance airflow as well as improve the thermal performance of the chassis. Flat cables are inherently more flexible, making cable routing easier.

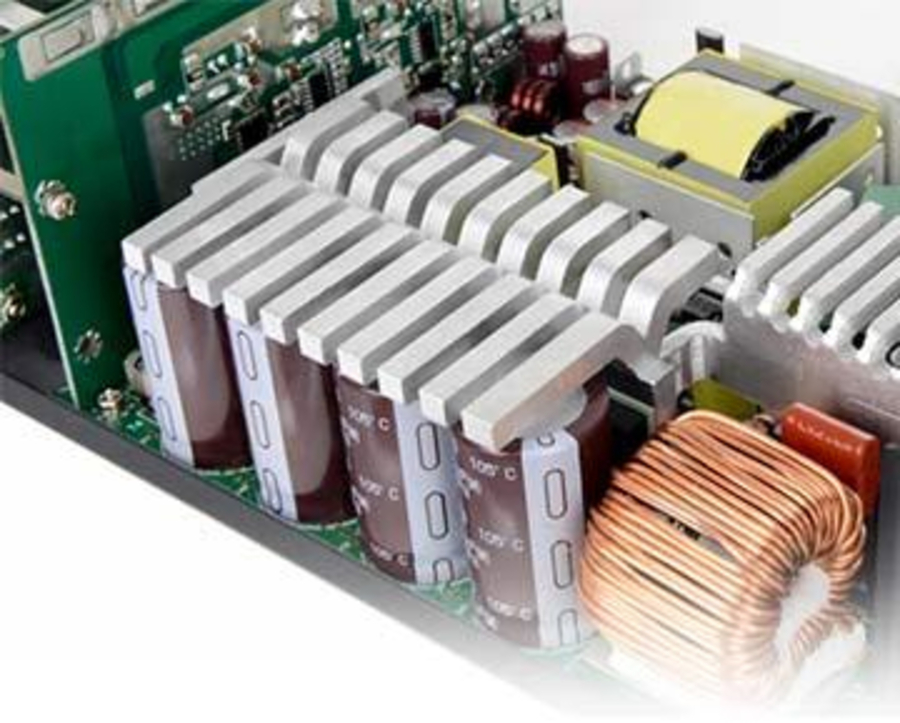

High Quality Japanese Capacitor
High-quality Japanese capacitor produces supreme performance with low impedance characteristics. This delivers stable operation over extended periods of time, as well as excellent reliability. |
|
Power |
|
Total power |
1500 W |
|
AC input voltage |
100 - 240 V |
|
Peak power |
1550 W |
|
AC input frequency |
50 - 60 Hz |
|
Input current |
9 - 18 A |
|
Power Factor Correction (PFC) type |
Active |
|
Max output current (+3.3V) |
25 A |
|
Max output current (+12V1) |
70 A |
|
Max output current (+12V2) |
70 A |
|
Max output current (+5V) |
25 A |
|
Max output current (-12V) |
0.3 A |
|
Max output current (+5Vsb) |
3.5 A |
|
Hold time |
17 ms |
|
Efficiency |
92% |
|
Power Good signal delay range |
100 - 500 ms |
|
Ports & interfaces |
|
Motherboard power connector |
24-pin ATX |
|
Peripheral (Molex) power connectors (4-pin) |
8 |
|
Number of SATA power connectors |
16 |
|
EPS power connector (8-pin) |
Yes |
|
PCI Express power connectors (6+2 pin) |
10 |
|
CPU power connector (4+4 pin) |
Yes |
|
ATX Power connector (24-pin) |
Yes |
|
Floppy drive power connector |
1 |
|
Floppy disk drive connector |
Yes |
|

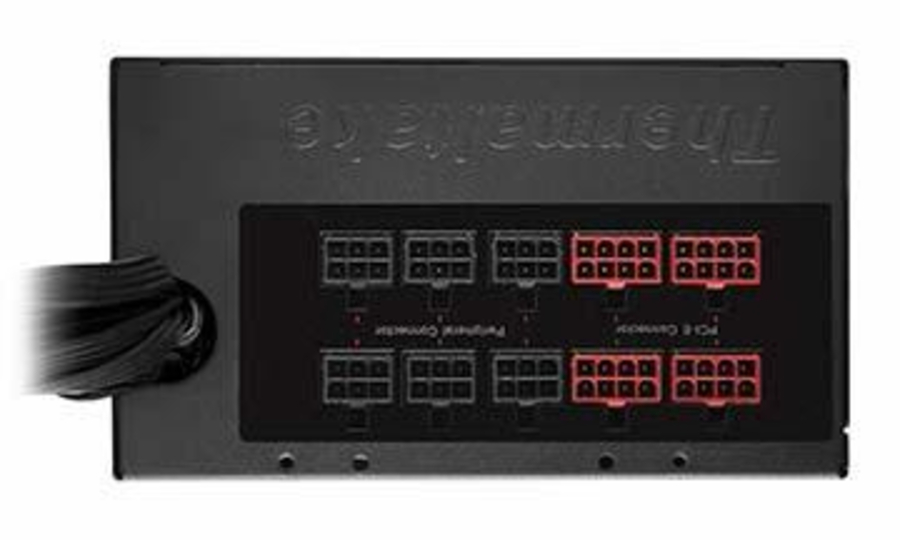

Cabling type |
Semi-Modular |
|
Performance |
|
Purpose |
PC |
|
Power supply unit (PSU) form factor |
ATX |
|
80 PLUS certification |
80 PLUS Gold |
|
ATX version |
2.3 |
|
Mean time between failures (MTBF) |
120000 h |
|
Certification |
UL/ CB+Baurt mark/ CE/ FCC/ CCC/ GOST |
|
Design |
|
Product colour |
Black |
|
Cooling type |
Active |
|
Fan diameter |
13.5 cm |
|
Number of fans |
1 fan(s) |
|
Fan speed |
1700 |
|
Fan location |
Top |
|
On/off switch |
Yes |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Storage temperature (T-T) |
-10 - 50 °C |
|
Operating relative humidity (H-H) |
10 - 90% |
|
Storage relative humidity (H-H) |
5 - 95% |
|
Weight & dimensions |
|
Width |
150 mm |
|
Depth |
220 mm |
|
Height |
86 mm |
