General Information |
|
Summary |
80 PLUS Gold certified non-modular PSU with RGB Hydraulic Bearing fan.

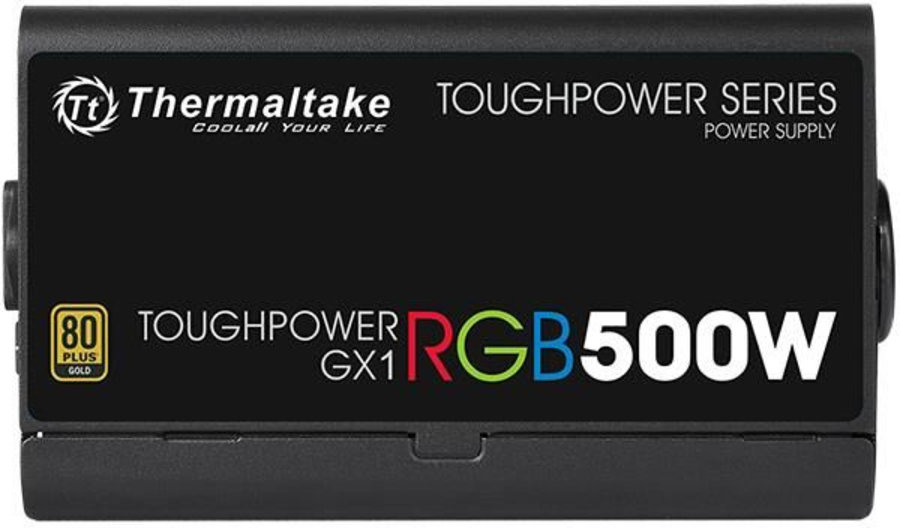

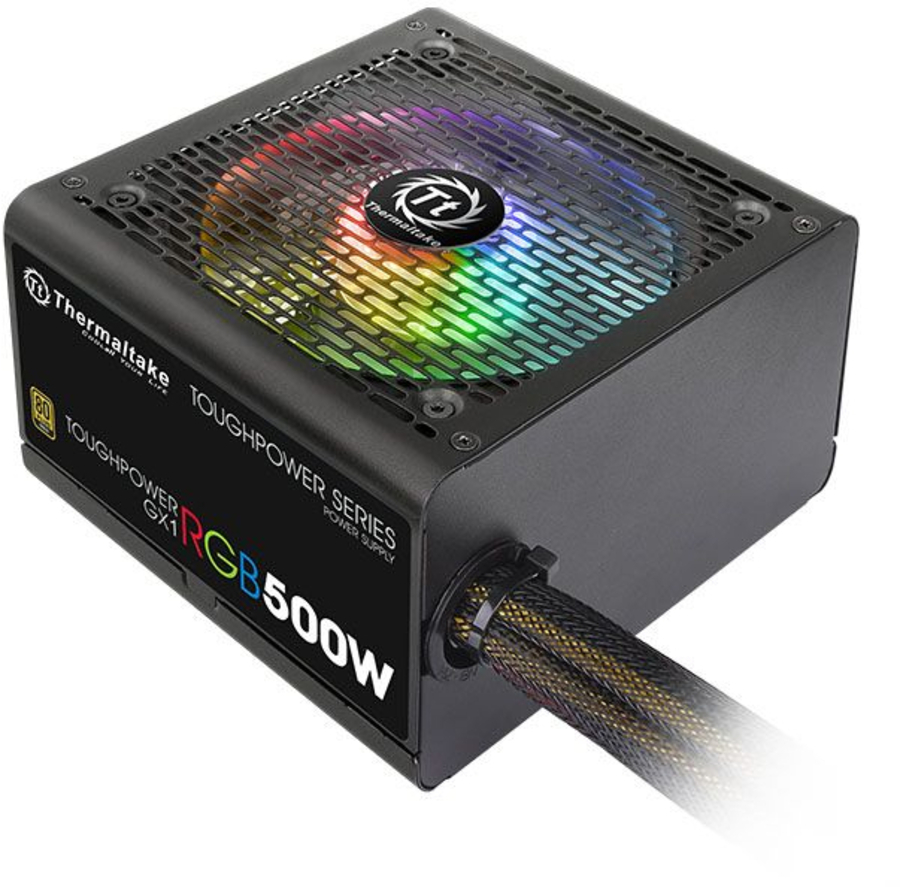

Thermaltake Toughpower GX1 RGB 500W
Built to deliver 80 PLUS Gold efficiency, Toughpower GX1 RGB features capacities ranging from 500W to 700W. 10 RGB LEDs come preinstalled on the Hydraulic Bearing fan to provide multiple vivid lighting mode/color options, LED Off, and a built-in memory function. Coming with premium components, Japanese 105°C/221°F main capacitor, its near silent operation, trouble free installation and reliable performance have made itself satisfy the market where value-oriented users are looking for a power supply with advanced features and aesthetic appeal.
One Button to Your Desired Color
Adding personal appeal to your build has never been easier. By just pressing one RGB lighting button! There is also a built-in memory function to save the applied color and ensure the same color selection every time you turn on your PC.
10 RGB LEDs Preinstalled
The 10 RGB LEDs come preinstalled on the 120mm fan. Capable of displaying 7 colors(Red, Green, Blue, Yellow, Purple, Light Blue, and White), 3 illumination modes including Pulse, Full-lighted and 256-color RGB Cycle, and an LED Off mode.

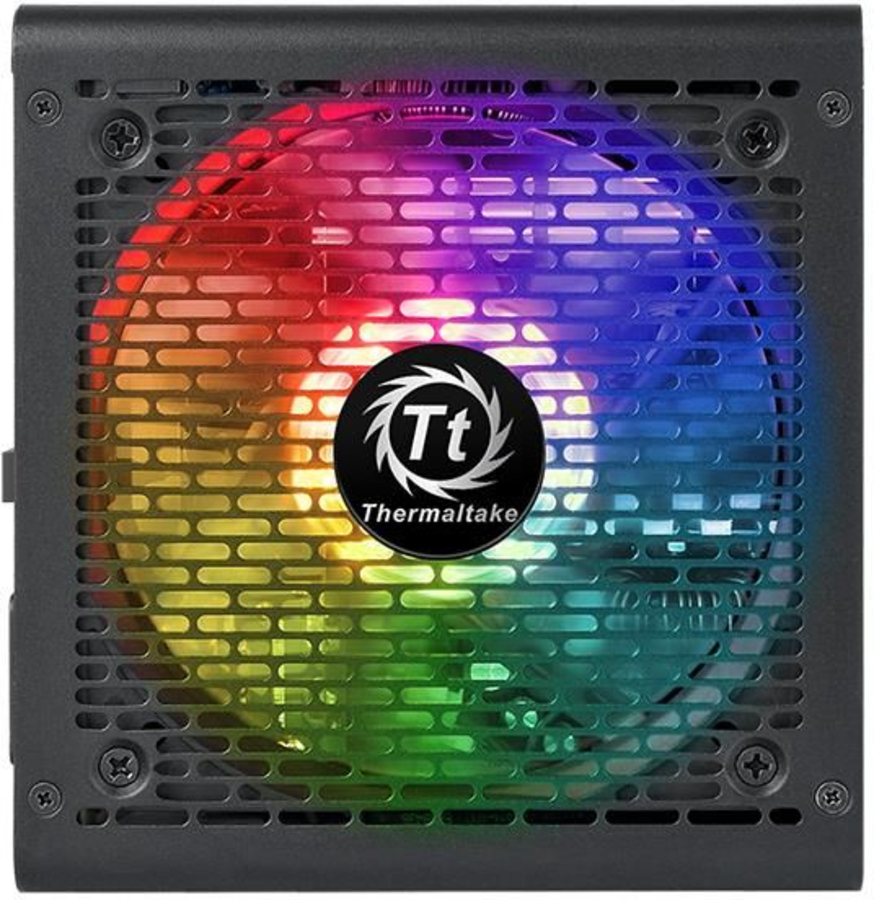

120mm RGB Hydraulic Bearing Fan
Featuring an 120mm RGB Hydraulic Bearing fan with intelligent RPM control to guarantee superior cooling performance and silent operation.
Low Ripple Noise
The maximum ripple/noise is lower than 60mV on the +12V rail, and lower than 40mV on the +5V &+3.3V rails to ensure an excellent power supply stability. Low ripple noise will keep your performance-critical components, such as high-end graphics cards, to operate reliably for longer.
﹤ ±3% Strict Voltage Regulation
The voltage regulation of the PSU is set to no more than ±3% for major rails to meet the highest performance. The strict voltage regulation is better than Intel’s standard ±5% for major rails and ±10% for -12V.
High Quality Japanese 105°C/221°F Main Capacitor
Comes with high quality 105 °C (221 ° F) Japanese main capacitor to greatly improve the durability and offer the highest stability and reliability.
High Amperage Single +12V Rail & DC to DC Design
Powerful single +12V rail and DC to DC design ensure a stable and reliable supply to other PC components.
Multiple Connectors
All sleeved cables make cable installation an easy task while powering the system at an advantageous voltage.
80 PLUS Gold Certified and Intel C6/C7 States Ready
Toughpower GX1 RGB saves energy through its high energy efficiency up to 90% and is certified to 80 PLUS® Gold. The series has been optimized to work with all generations of Intel’s processors to achieve maximum energy saving.

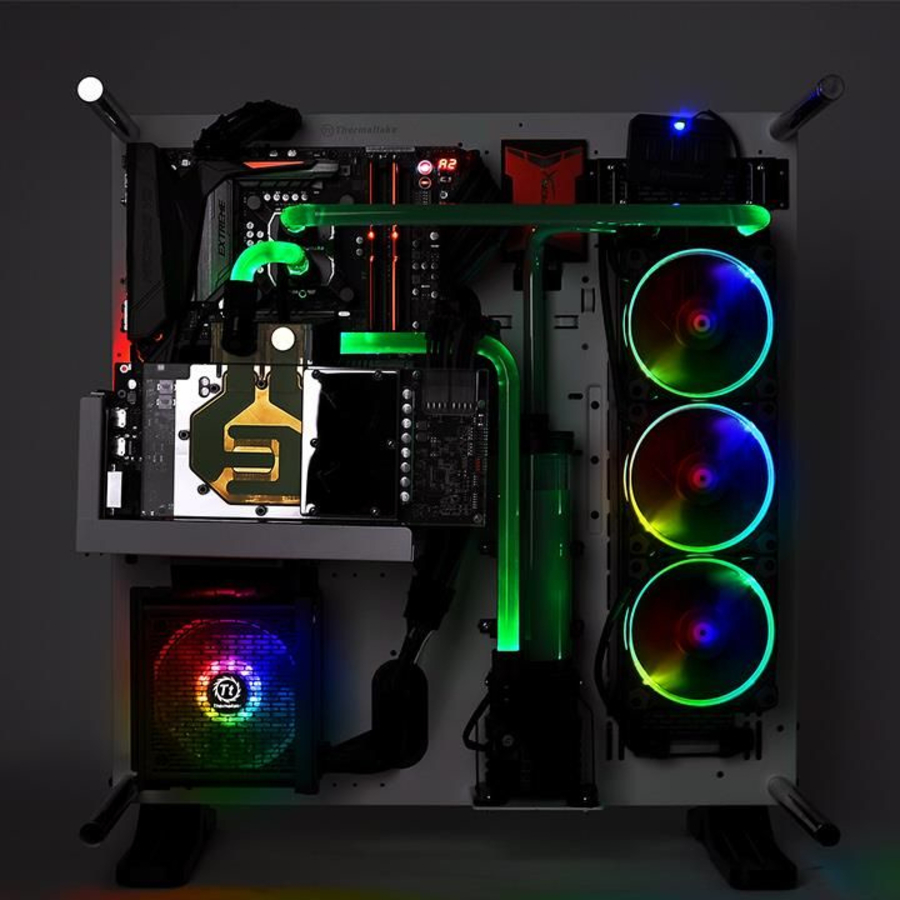

RGB Lighting Gives Best Aesthetics for All Chassis
Toughpower GX1 RGB Series is the best idea for users to go with when they are looking for an RGB PSU that permits remarkable functionality and aesthetics in all cases. |
|
Power |
|
Total power |
500 W |
|
AC input voltage |
100 - 240 V |
|
Peak power |
600 W |
|
AC input frequency |
50 - 60 Hz |
|
Input current |
10 A |
|
Power Factor Correction (PFC) type |
Active |
|
Combined power (+3.3V) |
100 W |
|
Combined power (+12V) |
492 W |
|
Combined power (+5V) |
100 W |
|
Combined power (-12V) |
6 W |
|
Combined power (+5Vsb) |
12.5 W |
|
Max output current (+3.3V) |
20 A |
|
Max output current (+12V) |
41 A |
|
Max output current (+5V) |
15 A |
|
Max output current (-12V) |
0.5 A |
|
Max output current (+5Vsb) |
2.5 A |
|
Hold time |
12 ms |
|
Ports & interfaces |
|
Motherboard power connector |
24-pin ATX |
|
Peripheral (Molex) power connectors (4-pin) |
5 |
|
Motherboard power cable length |
60 cm |
|
Number of SATA power connectors |
6 |
|
SATA power cable length |
500,650,800 mm |
|
Peripheral (Molex) power cable length |
500,650,800,950 mm |
|
PCI Express power connectors (6+2 pin) |
2 |
|
PCI Express power cable length |
50 cm |
|
CPU power connector (4+4 pin) |
Yes |
|
CPU power cable length |
65 cm |
|
ATX Power connector (24-pin) |
Yes |
|
Floppy drive power connector |
1 |
|
Floppy disk drive connector |
Yes |
|
Cabling type |
Non-Modular |
|
Performance |
|
Purpose |
PC |
|
Power supply unit (PSU) form factor |
ATX |
|
80 PLUS certification |
80 PLUS Gold |
|
Mean time between failures (MTBF) |
100000 h |
|
Certification |
CE/TÜV SUD/FCC/UL/BSMI/S-mark |
|
Design |
|
Product colour |
Black |
|
Cooling type |
Active |
|
Fan diameter |
12 cm |
|
Number of fans |
1 fan(s) |
|
Fan location |
Top |
|
Illumination |
Yes |
|
On/off switch |
Yes |
|
Operational conditions |
|
Operating temperature (T-T) |
5 - 40 °C |
|
Storage temperature (T-T) |
20 - 85 °C |
|
Operating relative humidity (H-H) |
-40 - 55% |
|
Storage relative humidity (H-H) |
10 - 95% |
|
Packaging content |
|
Cables included |
AC |
|
Weight & dimensions |
|
Width |
150 mm |
|
Depth |
140 mm |
|
Height |
86 mm |
|
Packaging data |
|
Package type |
Box |
