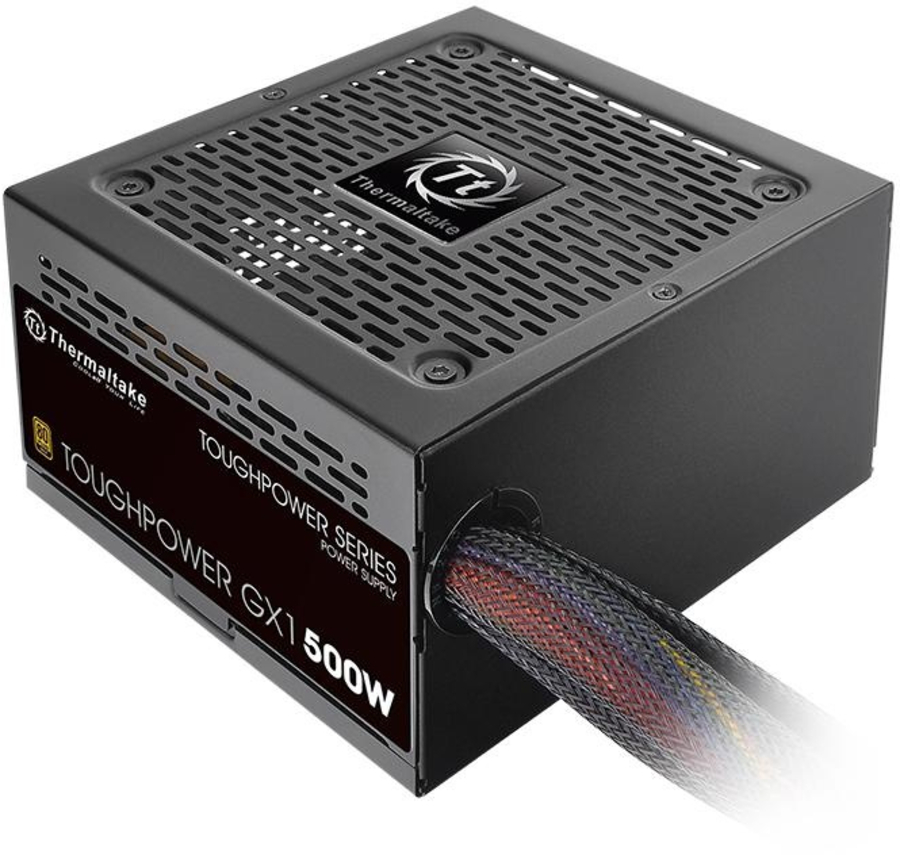

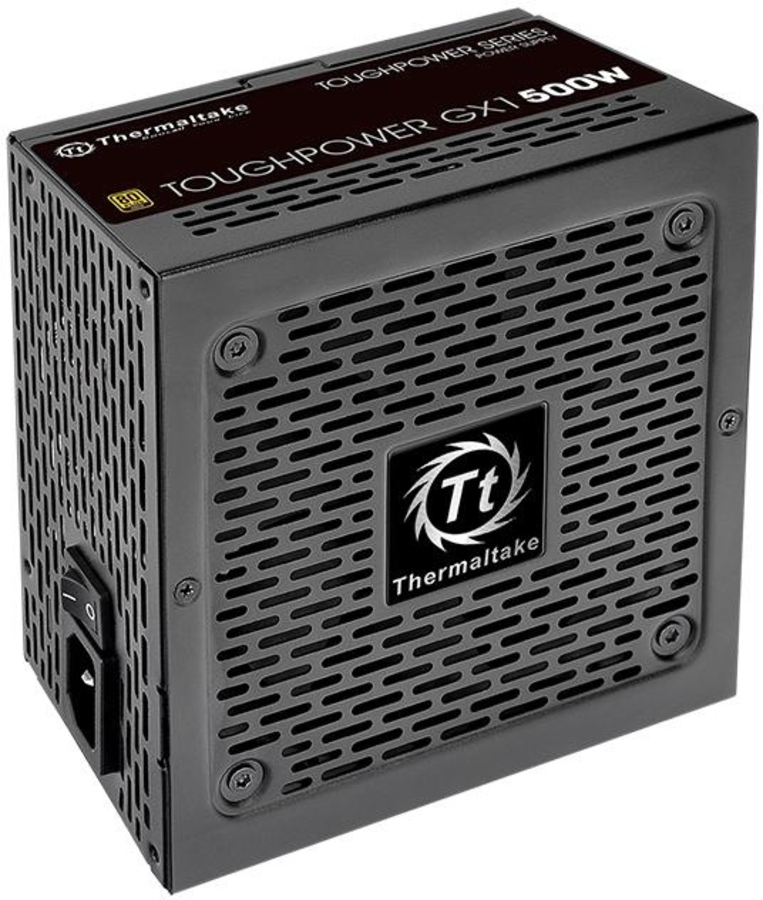

Thermaltake Toughpower GX1 500W
Built to deliver 80 PLUS Gold efficiency, Toughpower GX1 comes with capacities ranging from 500W to 700W, and the application of 120mm Fluid Dynamic Bearing Fan, <±3% tight voltage regulation, Japanese 105°C/221°F main capacitors and premium components. Its near silent operation, trouble free installation and reliable performance are making itself one of the best values for basic system upgrades.
80 PLUS Gold Certified and Intel C6/C7 States Ready
Toughpower GX1 saves energy through its high energy efficiency up to 90% and is certified to 80 PLUS Gold. The series has been optimized to work with all generations of Intel’s processors to achieve maximum energy saving.

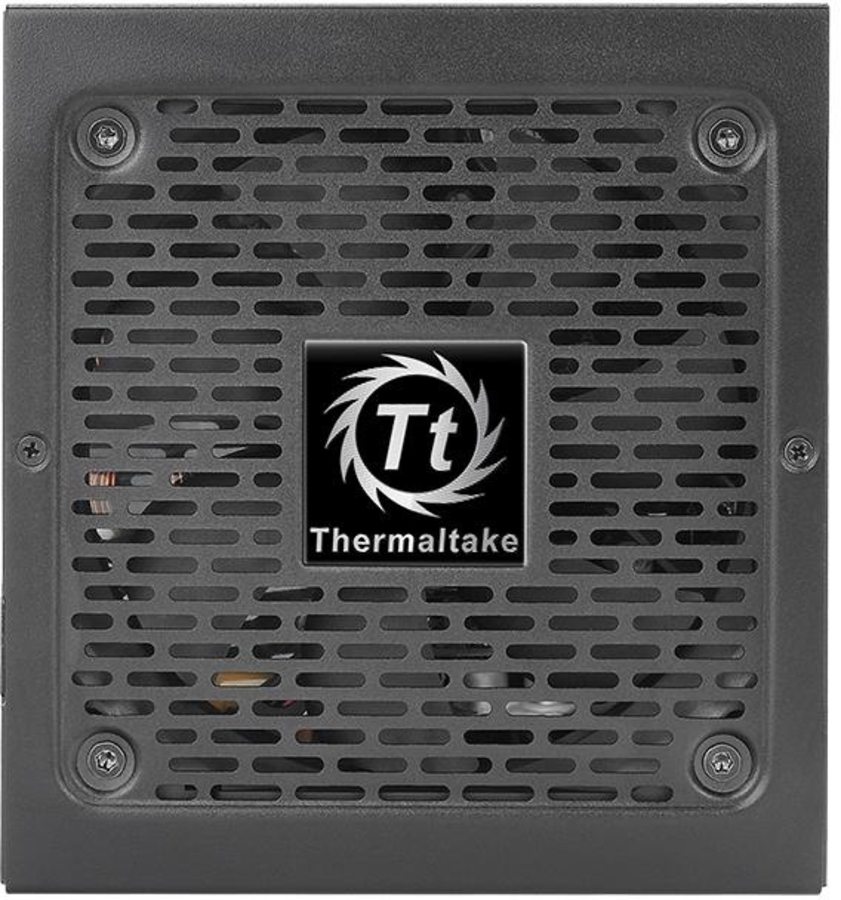

Ultra Quiet 120mm Hydraulic Bearing Fan
Featuring an 120mm Fluid Dynamic Bearing Fan to kept friction at really low levels even after prolonged usage while guaranteeing superior cooling performance and silent operation.
Low Ripple Noise
The maximum ripple/noise is lower than 60mV on the +12V rail, and lower than 40mV on the +5V &+3.3V rails to ensure an excellent power supply stability. Low ripple noise will keep your performance-critical components, such as high-end graphics cards, to operate reliably for longer.
±3% Strict Voltage Regulation
The voltage regulation of the PSU is set to no more than ±3% for major rails to meet the highest performance. The strict voltage regulation is better than Intel’s standard ±5% for major rails and ±10% for -12V.

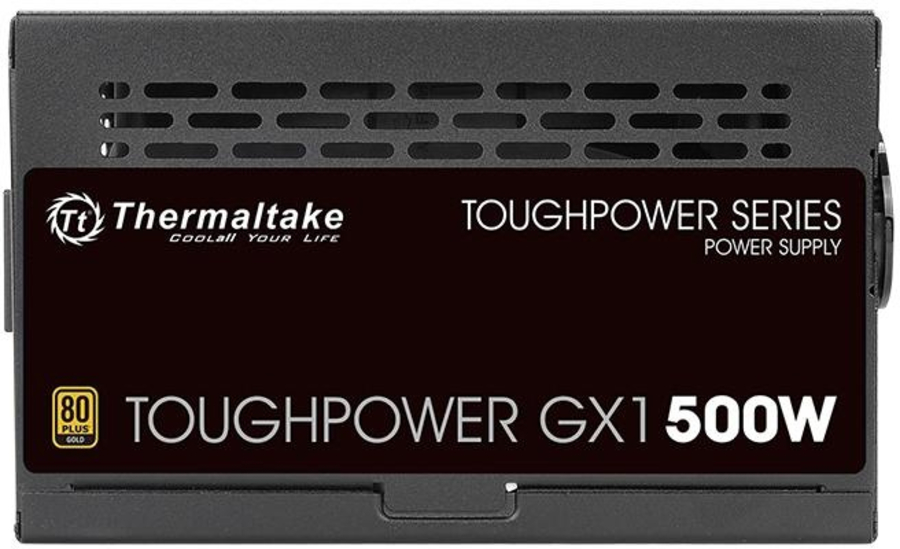

Sophisticatedly Designed Exterior Shroud
Sophisticatedly designed exterior shroud stimulates the aesthetic of your power supply while protecting the inner components from a direct contact.
Multiple Connectors
Comes with multiple connectors that power the system at an advantageous voltage and make cable installation an easy task.
High Quality Japanese 105°C/221°F Main Capacitor
Comes with high quality 105 °C (221 ° F) Japanese main capacitor to greatly improve the durability and offer the highest stability and reliability.
High Amperage Single +12V Rail & DC to DC Design
Powerful single +12V rail and DC to DC design ensure a stable and reliable supply to other PC components. |
|

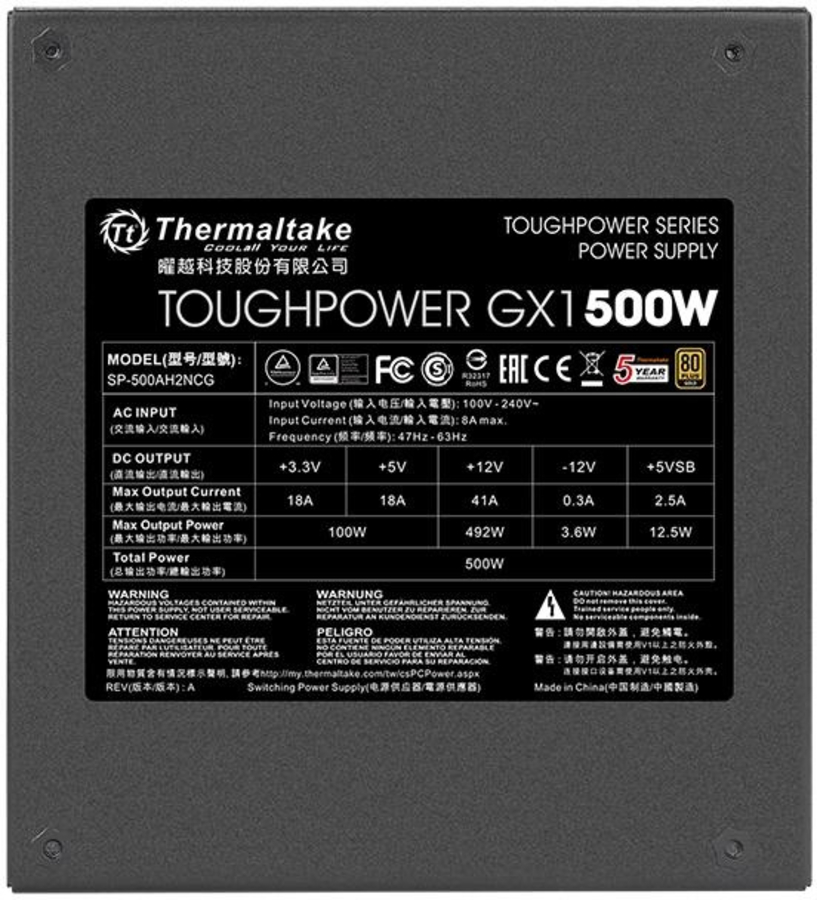

Power |
|
Total power |
500 W |
|
AC input voltage |
100 - 240 V |
|
Peak power |
600 W |
|
AC input frequency |
47 - 63 Hz |
|
Input current |
8 A |
|
Power Factor Correction (PFC) type |
Active |
|
Combined power (+3.3V) |
100 W |
|
Combined power (+12V) |
492 W |
|
Combined power (+5V) |
100 W |
|
Combined power (-12V) |
3.6 W |
|
Combined power (+5Vsb) |
12.5 W |
|
Max output current (+3.3V) |
18 A |
|
Max output current (+12V) |
41 A |
|
Max output current (+5V) |
18 A |
|
Max output current (-12V) |
0.3 A |
|
Max output current (+5Vsb) |
2.5 A |
|
Hold time |
12 ms |
|
Ports & interfaces |
|
Motherboard power connector |
24-pin ATX |
|
Peripheral (Molex) power connectors (4-pin) |
5 |
|
Motherboard power cable length |
60 cm |
|
Number of SATA power connectors |
6 |
|
SATA power cable length |
150,500 mm |
|
Peripheral (Molex) power cable length |
150,500 mm |
|
EPS power connector (4+4 pin) |
Yes |
|
PCI Express power connectors (6+2 pin) |
2 |
|
ATX Power connector (24-pin) |
Yes |
|

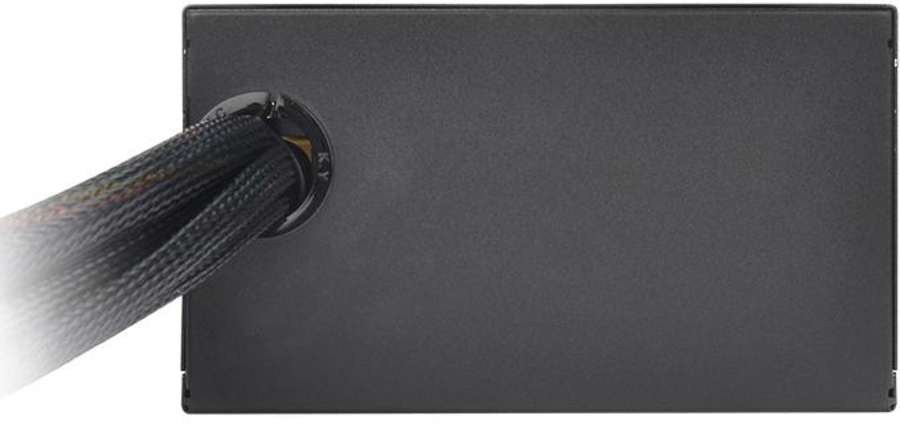

Cabling type |
Non-Modular |
|
Performance |
|
Purpose |
PC |
|
Power supply unit (PSU) form factor |
ATX |
|
80 PLUS certification |
80 PLUS Gold |
|
ATX version |
2.4 |
|
Mean time between failures (MTBF) |
100000 h |
|
Certification |
CE/cTUVus/TUV/FCC/BSMI/EAC/S-Mark |
|
Design |
|
Product colour |
Black |
|
Number of fans |
1 fan(s) |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Storage temperature (T-T) |
-20 - 70 °C |
|
Operating relative humidity (H-H) |
20 - 90% |
|
Storage relative humidity (H-H) |
5 - 95% |
|
Weight & dimensions |
|
Width |
150 mm |
|
Depth |
140 mm |
|
Height |
86 mm |
